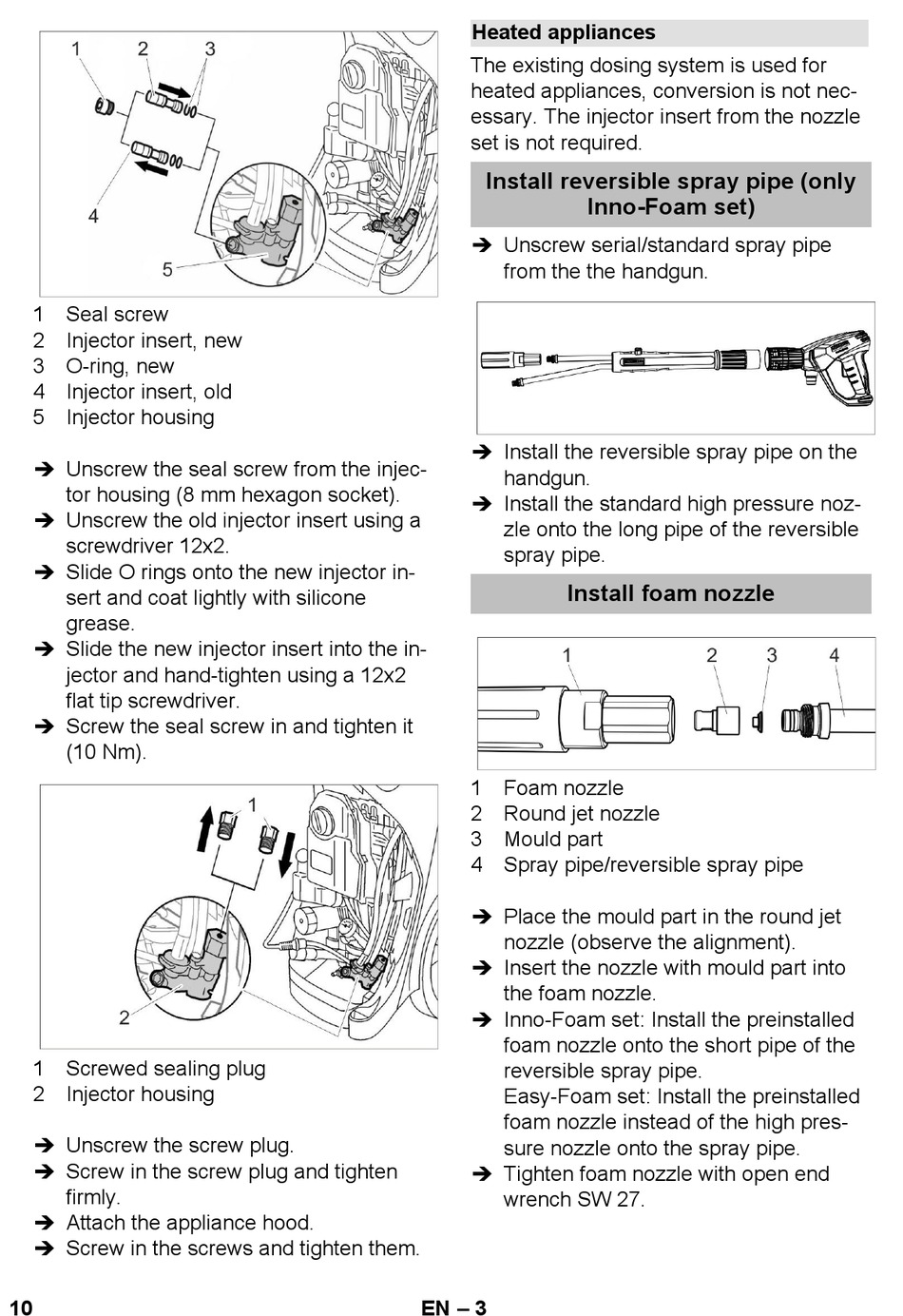

Kärcher Inno-Foam-Set Manual page 10

1 Seal screw
2 Injector insert, new
3 O-ring, new
4 Injector insert, old
5 Injector housing
 Unscrew the seal screw from the injec-
tor housing (8 mm hexagon socket).
 Unscrew the old injector insert using a
screwdriver 12x2.
 Slide O rings onto the new injector in-
sert and coat lightly with silicone
grease.
 Slide the new injector insert into the in-
jector and hand-tighten using a 12x2
flat tip screwdriver.
 Screw the seal screw in and tighten it
(10 Nm).
1 Screwed sealing plug
2 Injector housing
 Unscrew the screw plug.
 Screw in the screw plug and tighten
firmly.
 Attach the appliance hood.
 Screw in the screws and tighten them.
10
Heated appliances
The existing dosing system is used for
heated appliances, conversion is not nec-
essary. The injector insert from the nozzle
set is not required.
Install reversible spray pipe (only
Inno-Foam set)
 Unscrew serial/standard spray pipe
from the the handgun.
 Install the reversible spray pipe on the
handgun.
 Install the standard high pressure noz-
zle onto the long pipe of the reversible
spray pipe.
Install foam nozzle
1 Foam nozzle
2 Round jet nozzle
3 Mould part
4 Spray pipe/reversible spray pipe
 Place the mould part in the round jet
nozzle (observe the alignment).
 Insert the nozzle with mould part into
the foam nozzle.
 Inno-Foam set: Install the preinstalled
foam nozzle onto the short pipe of the
reversible spray pipe.
Easy-Foam set: Install the preinstalled
foam nozzle instead of the high pres-
sure nozzle onto the spray pipe.
 Tighten foam nozzle with open end
wrench SW 27.
