What your Package contains

Reader CB Unit
Ÿ
Wall mounting Screws (2 nos.)
Ÿ
Plastic screw grips (2 nos.)
Ÿ
Cable Assembly
Ÿ

Things You will Need

A power drill
Ÿ
A screwdriver set
Ÿ
A Wire Striper
Ÿ
Insulation Tap
Ÿ
Necessary Cabling
Ÿ
Wiegand supported device
Ÿ
Access to COSEC Server Application to configure COSEC
Ÿ
Reader CB
Before you start:
Please make sure:
The device in the package is in good condition and all the
Ÿ
assembly parts are included.
All the related equipments are powered-off before installation.
Ÿ
5

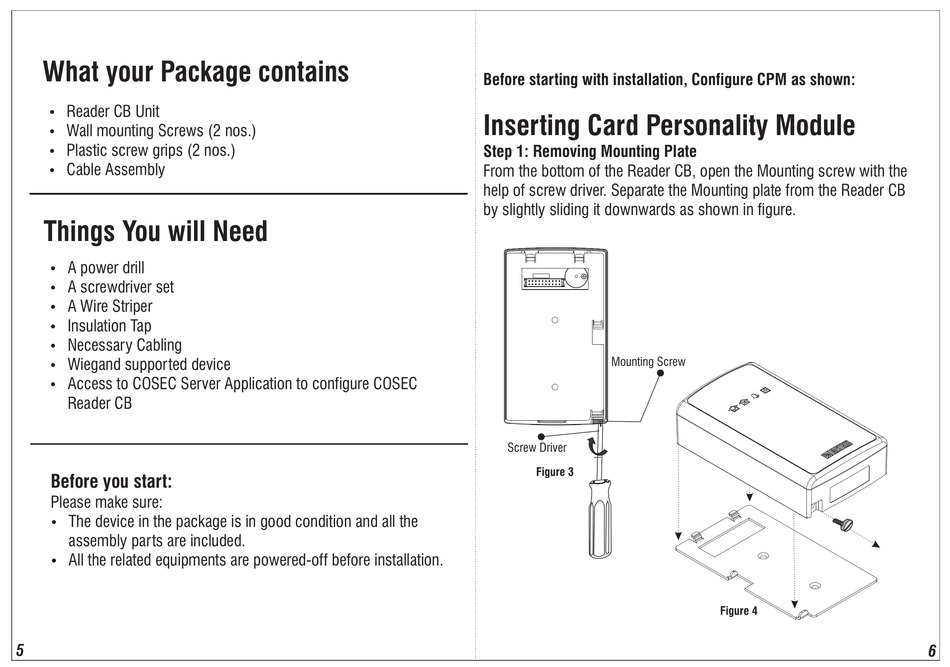

Before starting with installation, Configure CPM as shown:
Inserting Card Personality Module
Step 1: Removing Mounting Plate
From the bottom of the Reader CB, open the Mounting screw with the
help of screw driver. Separate the Mounting plate from the Reader CB
by slightly sliding it downwards as shown in figure.
Mounting Screw
Screw Driver
Figure 3
Figure 4
