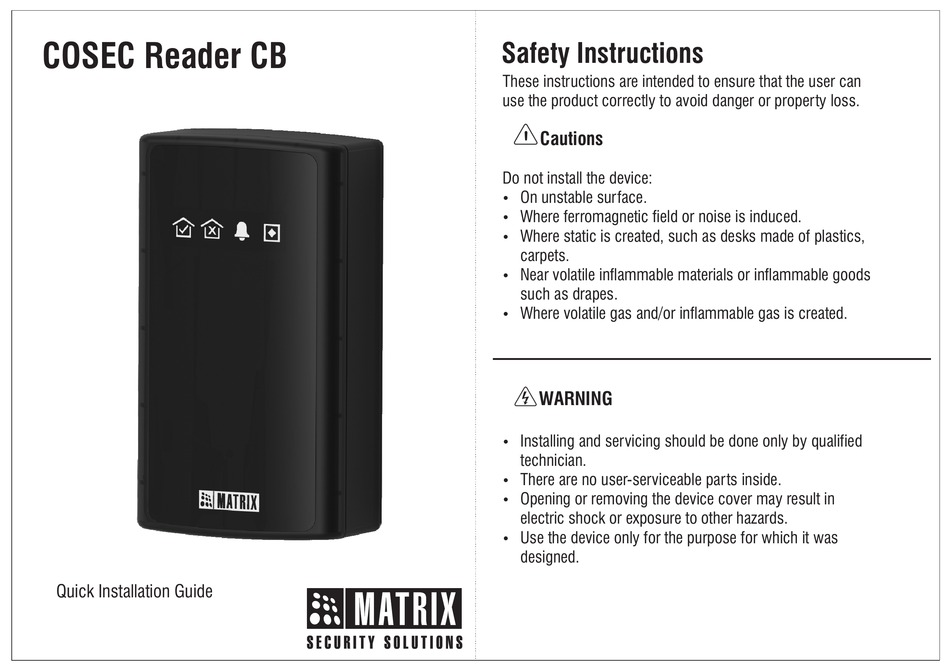

COSEC Reader CB
Quick Installation Guide
Safety Instructions
These instructions are intended to ensure that the user can
use the product correctly to avoid danger or property loss.
Cautions
Do not install the device:
On unstable surface.
Ÿ
Where ferromagnetic field or noise is induced.
Ÿ
Where static is created, such as desks made of plastics,
Ÿ
carpets.
Near volatile inflammable materials or inflammable goods
Ÿ
such as drapes.
Where volatile gas and/or inflammable gas is created.
Ÿ
WARNING
Installing and servicing should be done only by qualified
Ÿ
technician.
There are no user-serviceable parts inside.
Ÿ
Opening or removing the device cover may result in
Ÿ
electric shock or exposure to other hazards.
Use the device only for the purpose for which it was
Ÿ
designed.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COSEC Reader CB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Matrix COSEC Reader CB

Summary of Contents for Matrix COSEC Reader CB

  • Page 1 COSEC Reader CB Safety Instructions These instructions are intended to ensure that the user can use the product correctly to avoid danger or property loss. Cautions Do not install the device: On unstable surface. Ÿ Where ferromagnetic field or noise is induced.

  • Page 2: Table Of Contents

    Please read this guide first for correct installation and retain it for future reference. The information in this guide is prevailing at the time of publication. However, Matrix Comsec reserves the right to make changes in product design and specifications without prior notice.

  • Page 3: What Your Package Contains

    What your Package contains Before starting with installation, Configure CPM as shown: Reader CB Unit Ÿ Inserting Card Personality Module Wall mounting Screws (2 nos.) Ÿ Plastic screw grips (2 nos.) Step 1: Removing Mounting Plate Ÿ Cable Assembly Ÿ From the bottom of the Reader CB, open the Mounting screw with the help of screw driver.
  • Page 4 Step 2: Inserting Card Personality Module Take Card Personality Module and place it in the hollow space After inserting Card Personality module, Procedure for given as shown in the figure. Press a Little for Fixing it Installation can be done. completely into Reader CB.
  • Page 5 Step 2: Tracing Screw Holes Step 3: Fixing Mounting Plate Take Mounting plate. Trace screw holes A and B of Mounting plate Fix Mounting plate with supplied plastic screw grips and screws. on wall. Trace out the rectangular opening C also. Drill screw holes along the trace marking.
  • Page 6 Step 4: Connecting Cables Step 5: Fixing Reader CB Connect cables of Master Device and lead all the cables through Align COSEC Reader CB on Mounting plate and slide downwards. rectangular space into electrical box recessed in the wall. Figure 11...

  • Page 7: Technical Specifications

    Technical Specifications Step 6: Inserting Mounting Screw Specification Remarks Parameters Fix the Reader CB by sliding it backward such that mounting Credential Support slot of Reader and Mounting plate are in alignment. Insert Card and Mobile credential over BLE the mounting screw back in its position from bottom of the User Capacity Depends on Master Device device.

  • Page 8: Leds

    LEDs LED Indications for Events in Normal State Meaning Color Cadence User Authenticated, allowed. Allowed Green Continuous ON Accompanied by a long beep. Allowed Denied Alarm Network User Authentication failed, denied. Blinking 200ms on - Denied Accompanied by three short beeps. 200ms off Blinking 200ms on - Major Alarm...

  • Page 9: Connecting The Reader

    Figure 15 RS-232 Black RS232 TX Grey RS232 RX Pink Black TMPR NC/NO Light Blue W DATA1 White W DATA0 Green COSEC Reader CB HOLD Blue BEEPER Yellow Figure 14 ALARM Violet Wiegand STATUS Light Brown RED LED Brown Interface...
  • Page 10 If you are unable to dispose-off the products or unable to locate e-waste recyclers, you may return the products to Matrix Return Material Authorization (RMA) department. MATRIX COMSEC Head Office 394-GIDC, Makarpura, Vadodara - 390010, India Ph: (+91)1800-258-7747 Email: Support@MatrixComSec.com...
