What your package contains
•
COSEC VEGA Controller Unit
•
Mounting Plate with screw
M3/6
•
2 Screws M5/25
•
2 Screw Grips
•
Power Supply Cable (with DC
Jack)
For Vega FOT only Power Supply Cable and Ethernet Cable with
RJ45 Plug will be provided.

Things you will need

•
A Power Drill
•
A Wire Stripper
•
A Screw Driver Set
•
Insulation Tape
•
Access to COSEC Server application to configure COSEC
Vega.
•
A Stand-alone computer with a Web-browser to change the
network settings of COSEC Vega.
7
•
Power Adpater 12VDC,2A
•
Exit Switch Cable
•
EM Lock Cable
•
Ethernet Cable with RJ45 Plug
•
Auxiliary I/O Cable
•
Installation and servicing should be done only by a qualified
technician.
•
There are no user-serviceable parts inside.
•
Opening or removing the device cover may result in electric
shock or exposure to other hazards.
•
Use this product only for the purpose for which it was
designed.

Installation Instructions

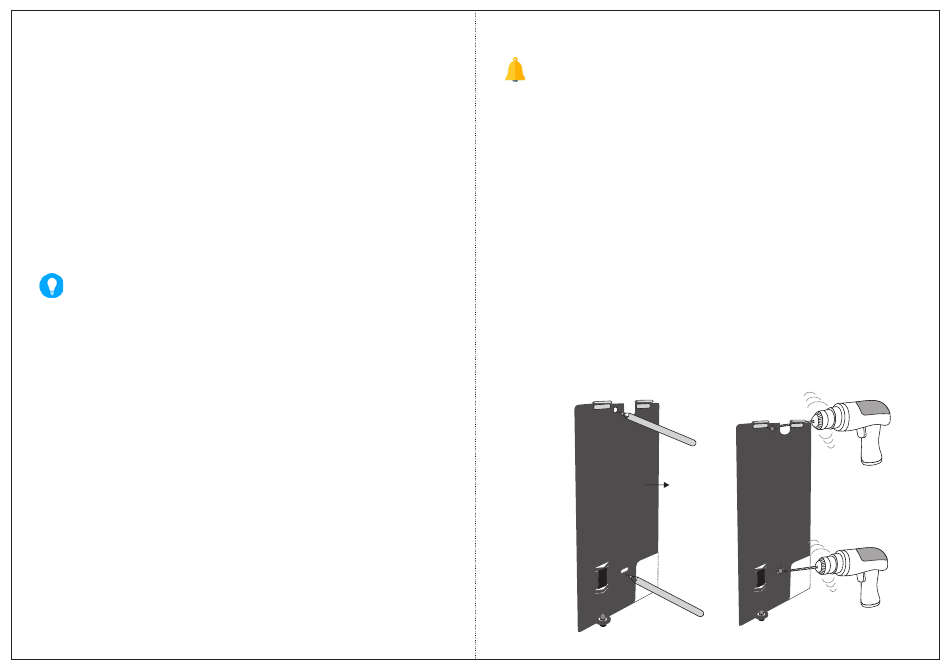

Step 1: Trace screw holes A and B on Mounting Plate. If required,
trace out rectangular opening C also. Drill screw holes along the
traced markings.
Figure 9
A
Mounting
Plate
B
C
A
B
C
