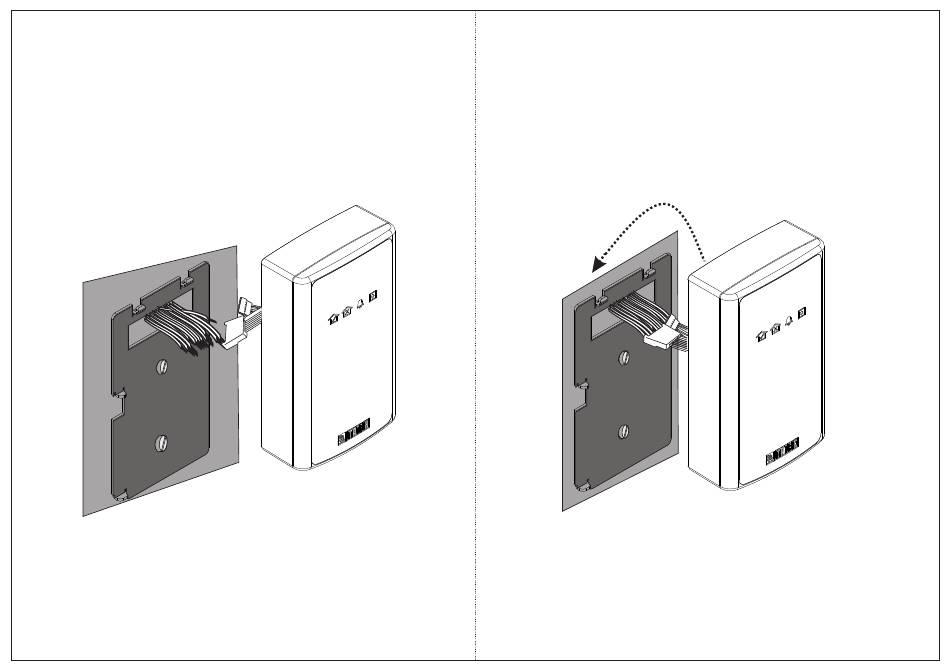

Step 4: Connecting Cables
Connect cables of Master Device and lead all the cables through
rectangular space into electrical box recessed in the wall.
11
Figure 11
Step 5: Fixing Reader CB
Align COSEC Reader CB on Mounting plate and slide downwards.
Figure 12
12
