What Your Package Contains; Things You Will Need - Matrix COSEC ATOM RD300 Quick Installation Manual

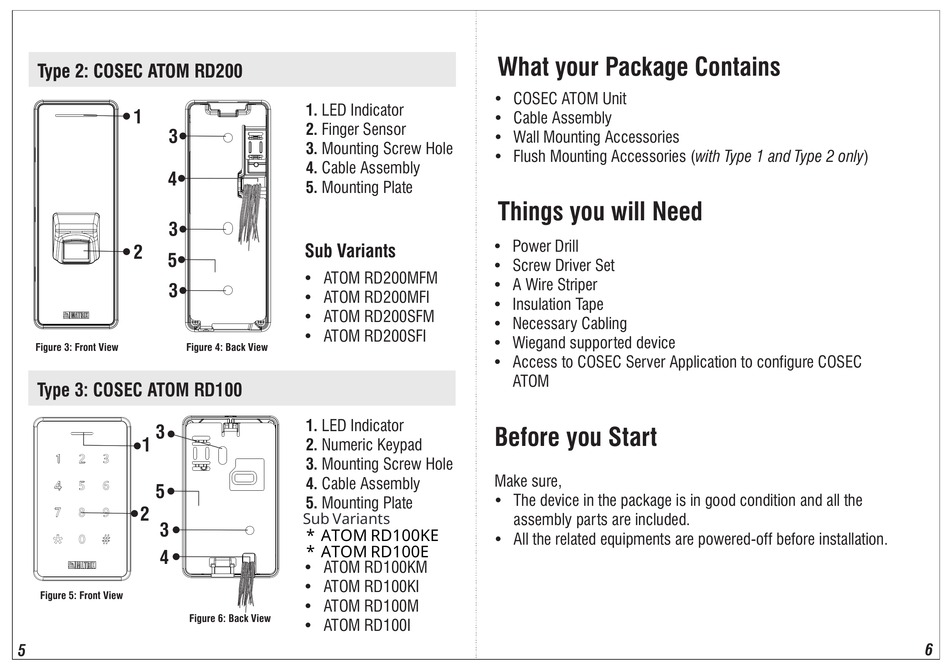

Type 2: COSEC ATOM RD200 Type 2: COSEC ATOM RD200
1
3
4
3
2
5
3
Figure 3: Front View Figure 4: Back View
Type 3: COSEC ATOM RD100
3
1
5
2
3
4
Figure 5: Front View
Figure 6: Back View
5
1. LED Indicator
2. Finger Sensor
3. Mounting Screw Hole
4. Cable Assembly
5. Mounting Plate
Sub Variants
Ÿ ATOM RD200MFM
Ÿ ATOM RD200MFI
Ÿ ATOM RD200SFM
Ÿ ATOM RD200SFI
1. LED Indicator
2. Numeric Keypad
3. Mounting Screw Hole
4. Cable Assembly
5. Mounting Plate
Sub Variants
* ATOM RD100KE
* ATOM RD100E
Ÿ ATOM RD100KM
Ÿ ATOM RD100KI
Ÿ ATOM RD100M
Ÿ ATOM RD100I

What your Package Contains

Ÿ COSEC ATOM Unit
Ÿ Cable Assembly
Ÿ Wall Mounting Accessories
Ÿ Flush Mounting Accessories (with Type 1 and Type 2 only)

Things you will Need

Ÿ Power Drill
Ÿ Screw Driver Set
Ÿ A Wire Striper
Ÿ Insulation Tape
Ÿ Necessary Cabling
Ÿ Wiegand supported device
Ÿ Access to COSEC Server Application to configure COSEC
ATOM
Before you Start
Make sure,
Ÿ The device in the package is in good condition and all the
assembly parts are included.
Ÿ All the related equipments are powered-off before installation.
6
