Matrix COSEC Reader CB Quick Installation Manual page 4

Step 2: Inserting Card Personality Module

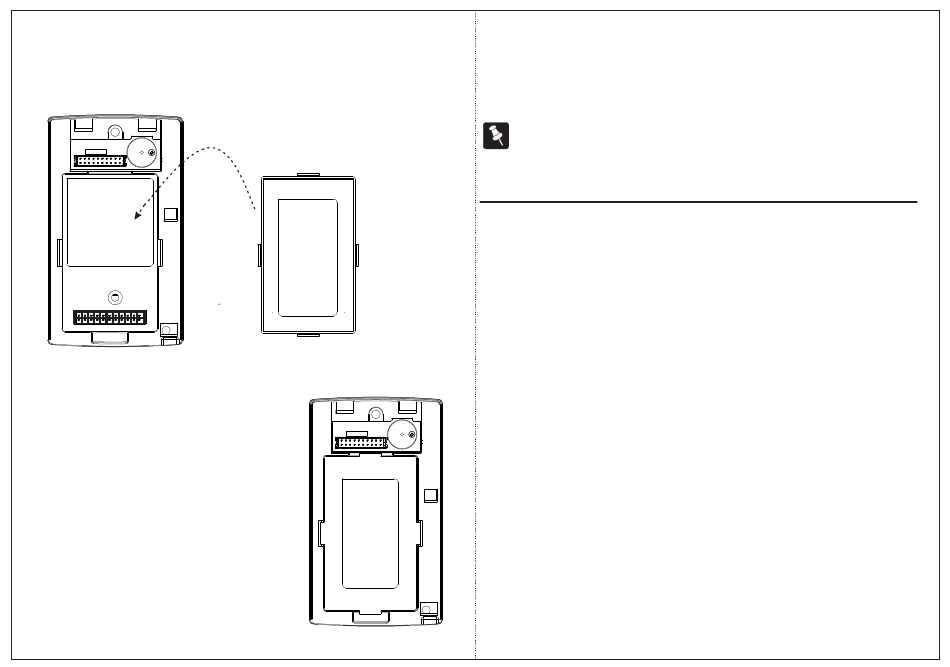

Take Card Personality Module and place it in the hollow space
given as shown in the figure. Press a Little for Fixing it
completely into Reader CB.
Figure 5
7
After inserting Card Personality module, Procedure for
Installation can be done.
Card Personality Module is not available in the package. It
must be ordered separately.
Installation
These steps can be followed in case of direct Installation of
Reader CB (Considering that no Card Personality Module is
inserted.)
Step 1: Removing Mounting Plate
(Same as Step 1 of Inserting Card Personality Module)
From the bottom of the Reader CB, open the Mounting screw
with the help of screw driver. Separate the Mounting plate
from the Reader CB by pulling mounting plate downwards.
Figure 6
8
