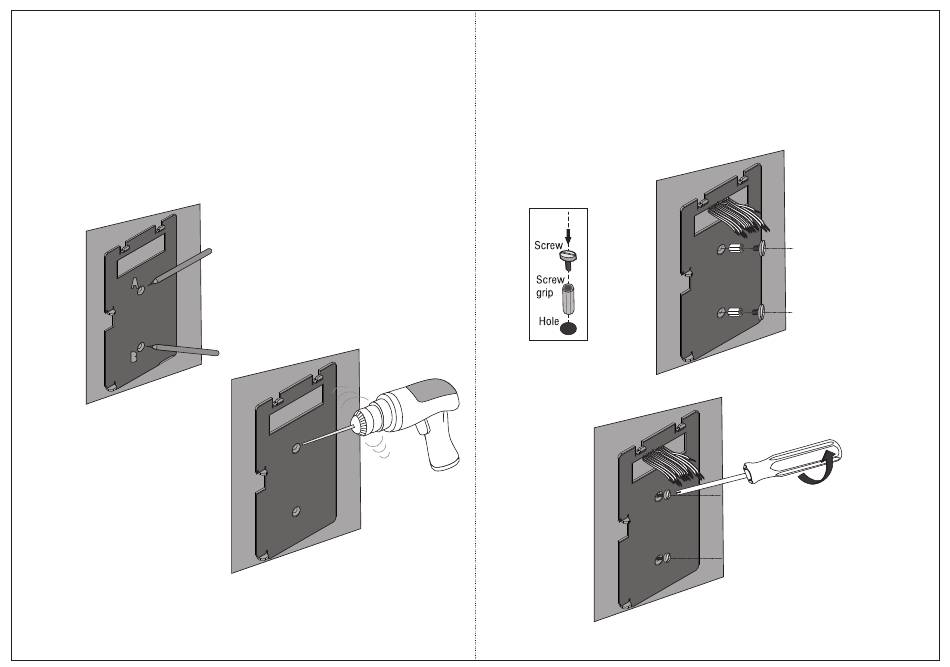

Step 2: Tracing Screw Holes
Take Mounting plate. Trace screw holes A and B of Mounting plate
on wall. Trace out the rectangular opening C also. Drill screw holes
along the trace marking.
C
A
B
Figure 7
9
A
B
Figure 8
Step 3: Fixing Mounting Plate
Fix Mounting plate with supplied plastic screw grips and screws.
Figure 10
Figure 9
10
