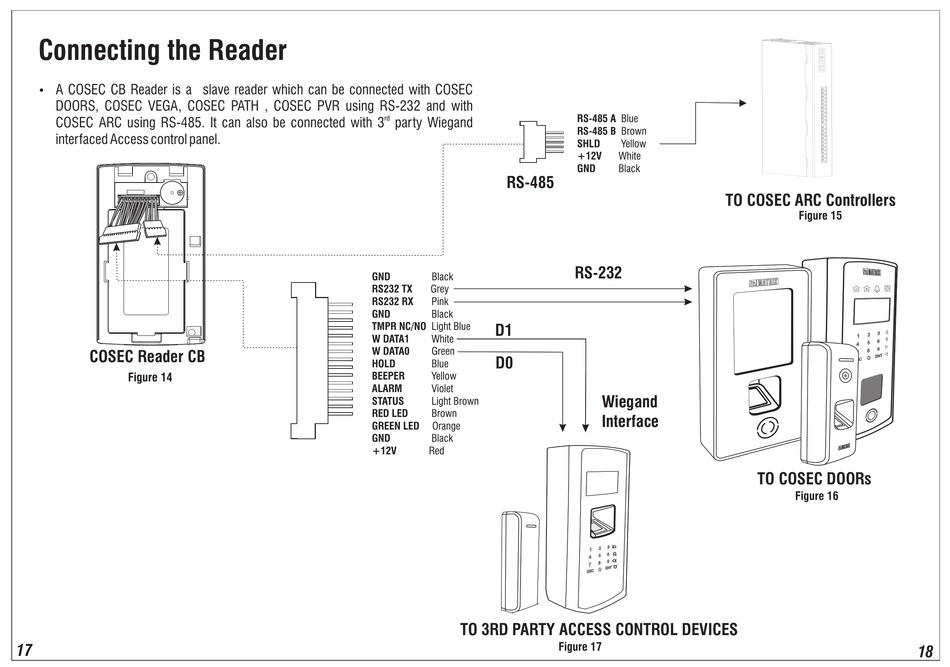

Connecting the Reader

A COSEC CB Reader is a slave reader which can be connected with COSEC
Ÿ
DOORS, COSEC VEGA, COSEC PATH , COSEC PVR using RS-232 and with
COSEC ARC using RS-485. It can also be connected with 3 party Wiegand
interfaced Access control panel.
COSEC Reader CB
Figure 14
17
rd
RS-485
GND Black
RS232 TX Grey
RS232 RX Pink
GND Black
TMPR NC/NO Light Blue
D1
W DATA1 White
W DATA0 Green
D0
HOLD Blue
BEEPER Yellow
ALARM Violet
STATUS Light Brown
RED LED Brown
GREEN LED Orange
GND Black
+12V Red
TO 3RD PARTY ACCESS CONTROL DEVICES
RS-485 A Blue
RS-485 B Brown
SHLD Yellow
+12V White
GND Black
TO COSEC ARC Controllers
RS-232
Wiegand
Interface
Figure 17

Figure 15

TO COSEC DOORs
Figure 16
18
