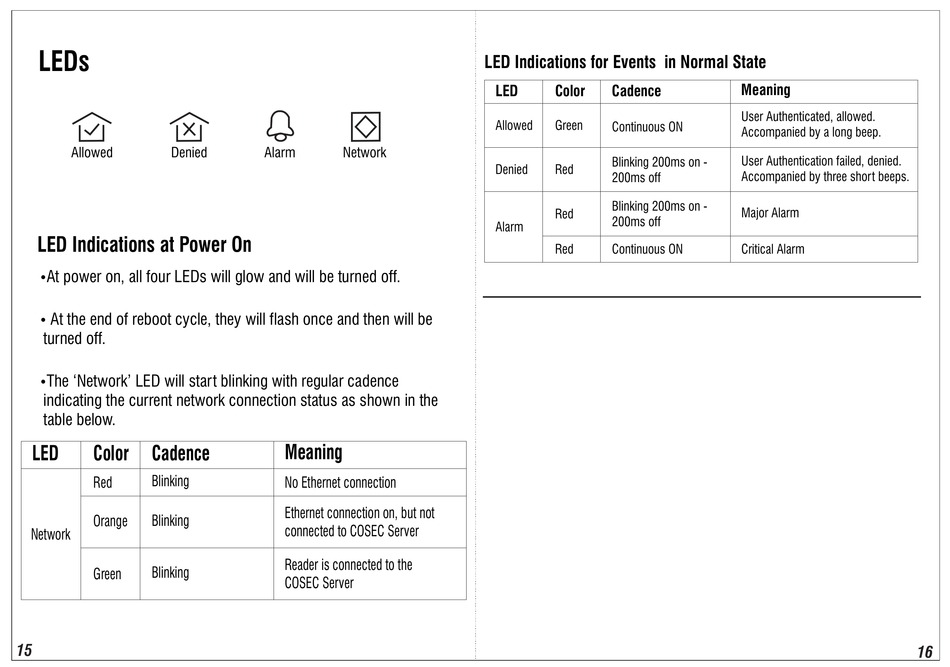

Leds - Matrix COSEC Reader CB Quick Installation Manual

LEDs

Allowed Denied
LED Indications at Power On
At power on, all four LEDs will glow and will be turned off.
Ÿ
At the end of reboot cycle, they will flash once and then will be
Ÿ
turned off.
The 'Network' LED will start blinking with regular cadence
Ÿ
indicating the current network connection status as shown in the
table below.
LED Color Cadence
Blinking
Red
Orange Blinking
Network
Blinking
Green
15
Alarm Network
Meaning
No Ethernet connection
Ethernet connection on, but not
connected to COSEC Server
Reader is connected to the
COSEC Server
LED Indications for Events in Normal State
LED Color Cadence
Allowed Green
Continuous ON
Blinking 200ms on -
Denied Red
200ms off
Blinking 200ms on -
Red
200ms off
Alarm
Red Continuous ON
Meaning
User Authenticated, allowed.
Accompanied by a long beep.
User Authentication failed, denied.
Accompanied by three short beeps.
Major Alarm
Critical Alarm
