CABLE SPECIFICATIONS

The physical characteristics must meet or exceed IEEE 802.3™ specifications.

Fiber Cable

Bit Error Rate:
Multimode fiber (recommended):
Multimode fiber (optional):
Wavelength:
Attenuation:
SSETF1011-200, SSETF1013-200
Fiber Transmitter Power:
Fiber Receiver Sensitivity (10Base-T):
Fiber Receiver Sensitivity (100Base-TX): min: -24.0 dBm
Link Budget:

Copper Cable

Category 5:
Gauge:
Attenuation:
Maximum Cable Distance:
• Straight-Through OR Crossover cable may be used.
• Shielded Twisted-Pair (STP) OR Unshielded Twisted-Pair (UTP) may be used.
• Pins 1&2 and 3&6 are the two active pairs in an Ethernet™ network .
• RJ-45 Pin-out: Pin 1 = TD+, Pin 2 = TD-, Pin 3 = RD+, Pin 6 = RD-
• Use only dedicated wire pairs for the active pins:
(e.g., blue/white & white/blue, orange/white & white/orange, etc.)
• Do not use flat or silver satin wire.

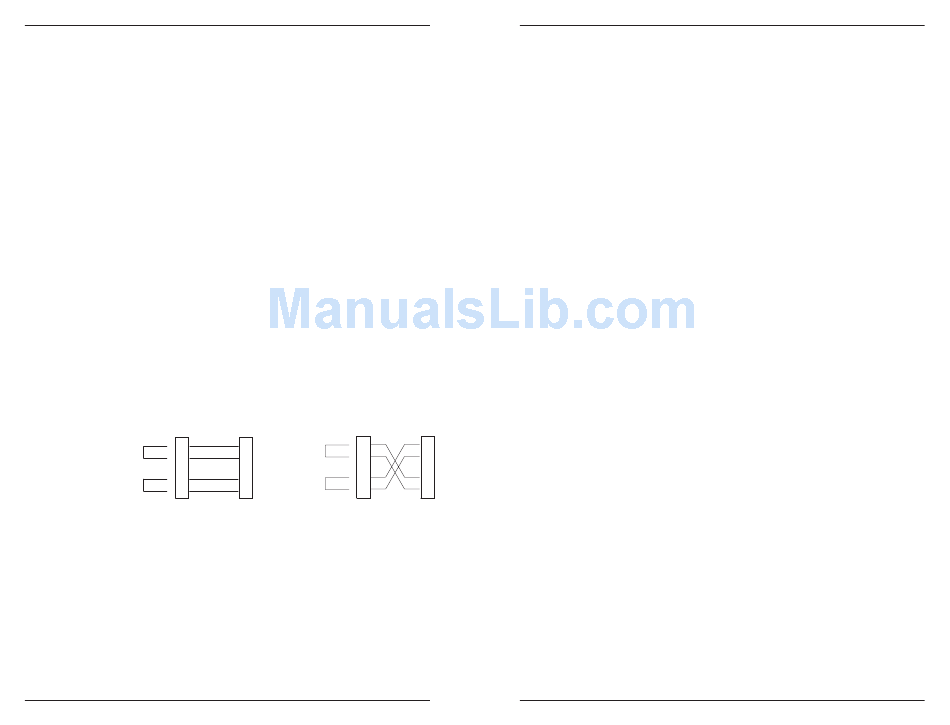

Straight-Through Cable
1
Twisted Pair #1
2
3
Twisted Pair #2
6
techsupport@transition.com -- Select the "Transition Now" Link for a Live Web Chat
<10 -9
62.5/125 µm
100/140, 85/140, 50/125 µm
850 nm mulitmode
<3.75 dB/km @ 850 nm
min: -16.0 dBm max: -10.0 dBm
min: -32.5 dBm max: -7.2 dBm
max: -7.2 dBm
13.5 dB
24 to 22 AWG
22.0 dB /100m @ 100 MHz
100 meters
Crossover Cable
1 1
Twisted Pair #1
2 2
3 3
Twisted Pair #2
6 6
5
SSETF10xx-200

TECHNICAL SPECIFICATIONS

Standards:
Data Rate:
Dimensions:
Weight:
Power Supply DC Output:
Environment:
Warranty:
1
2
3
6
6
Tech Support: 800-260-1312 International: 952-941-7600 7am-6pm CST (GMT-6:00)
IEEE 802.3™
10 Mb/s, 100 Mb/s
3.4" x 0.86" x 5.0" (86 mm x 22 mm x 127 mm)
8 oz (227 g) (approximate)
12VDC, 500 mA (minimum)
minimum output regulation: 5%
Connector: 2.1mm barrel, center pin positive
Operating Temperature: 0° to 50°C (32° to 122°F)
Storage Temperature: -20° to 85°C (-4° to 185°F)
Humidity: 10-90%, non condensing
Altitude: 0-10,000 feet
Lifetime
