Transition Networks SSRFB10xx-100 User Manual

Slide-in-module media converter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Enlarged version

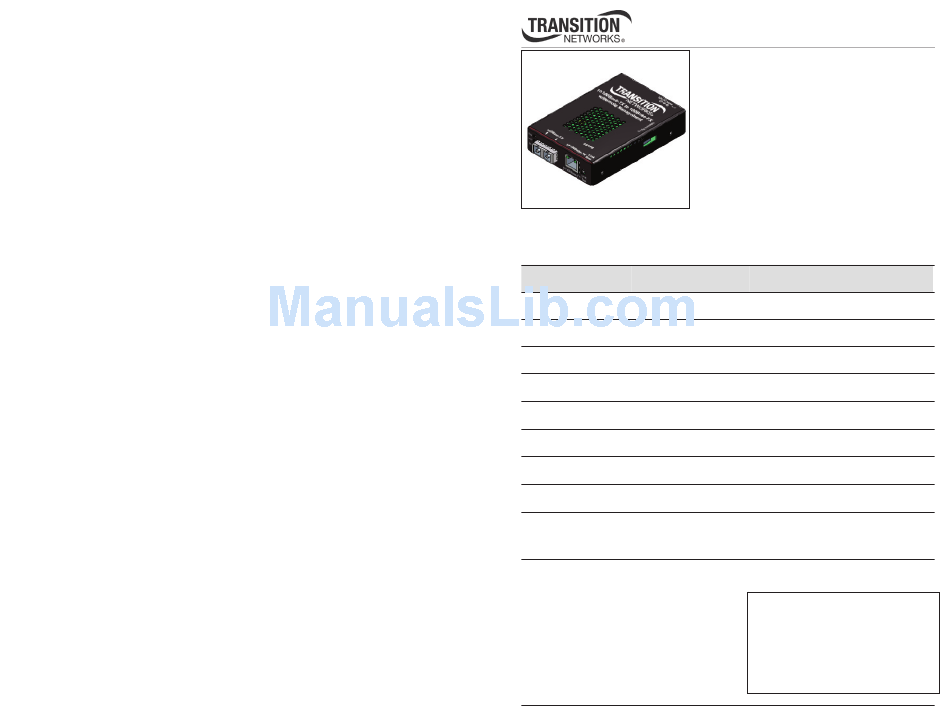

User's Guide
SSRFB10xx-100
Slide-in-Module Media Converter
• Copper to Fiber
• 10/100 Bridging (2-Port)
• 10Base-T/100Base-TX to 100Base-FX

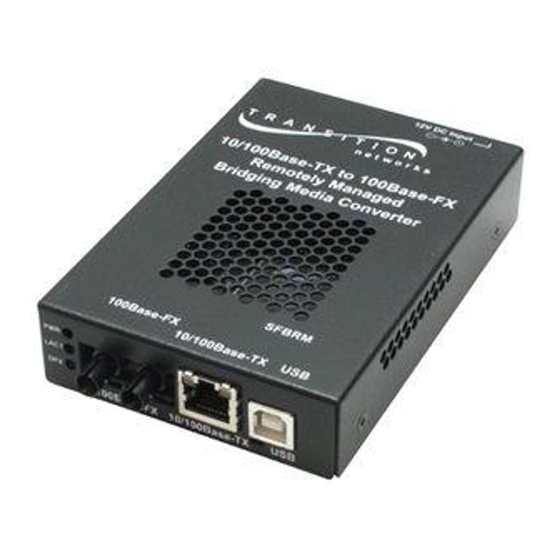

The SSRFB10xx-100, 2-port Ethernet/Fast
Ethernet bridging media converter is designed to be
installed in a Transition Networks PointSystem™
chassis. This converter connects 10Base-T Ethernet
or 100Base-TX Fast Ethernet twisted-pair copper
network converters to network converters on a 100Base-FX Fast Ethernet fiber network.
The SSRFB includes a status reporting feature for viewing operational parameters only
from its remotely attached SSRFB converter via the fiber connection.
Part Number
Port One - Copper
10Base-T/100Base-TX
RJ-45
SSRFB1011-100
100 m (328 ft)*
RJ-45
SSRFB1013-100
100 m (328 ft)*
RJ-45
SSRFB1014-100
100 m (328 ft)*
RJ-45
SSRFB1040-100
100 m (328 ft)*
RJ-45
SSRFB1029-100
100 m (328 ft)*
RJ-45
SSRFB1029-101
100 m (328 ft)*
RJ-45
SSRFB1029-102
100 m (328 ft)*
RJ-45
SSRFB1029-103
100 m (328 ft)*
Install SSRFB1029-100/101 and SSRFB1029-102/103 single-
fiber optic in the same network where one is the local (center)
converter and the other is the remote (terminal) converter.
Port Two - Duplex Fiber-Optic
100Base-FX
ST, 1310nm multimode
2 km (1.2 miles)*
SC, 1310 nm multimode
2 km (1.2 miles)
SC, 1310 nm single mode
20 km (12.4 miles)
SFP Empty Slot
SC, 1310nmTX/1510nmRX
20km (12.4 miles)
SC, 1550nmTX/1310nmRX
20km (12.4 miles)
SC, 1310nmTX/1510nmRX
40km (24.9 miles)
SC, 1550nmTX/1310nmRX
40km (24.9 miles)
Installation . . . . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . . . .7
Cable Specifications . . . . . . . . . . . . .11
Technical Specifications . . . . . . . . . .12
Troubleshooting . . . . . . . . . . . . . . .13
Contact Us . . . . . . . . . . . . . . . . . . .15
Compliance Information . . . . . . . . .16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSRFB10xx-100 and is the answer not in the manual?

Questions and answers

Related Manuals for Transition Networks SSRFB10xx-100

Summary of Contents for Transition Networks SSRFB10xx-100

  • Page 1 • 10Base-T/100Base-TX to 100Base-FX The SSRFB10xx-100, 2-port Ethernet/Fast Ethernet bridging media converter is designed to be installed in a Transition Networks PointSystem™ chassis. This converter connects 10Base-T Ethernet or 100Base-TX Fast Ethernet twisted-pair copper network converters to network converters on a 100Base-FX Fast Ethernet fiber network.

  • Page 2: Installation

    SSRFB10xx-100 Installation Installation -- Continued The 6-position switch--continued CAUTION: Wear a grounding converter and observe electrostatic discharge precautions while handling the media converter. Failure to observe this caution could TP Speed (Only valid if SW1 is Down) result in damage to or failure of the media converter.

  • Page 3: Loopback Test

    SSRFB10xx-100 Installation -- Continued Installation -- Continued Loopback jumper Connecting power The Loopback Mode jumper is located on the media Use the supplied AC power adapter to power the SSRFB standalone converter. To Good converter’s circuit board (labeled ALL= all frames connect power to the converter, do the following: plus errors, Good = Good frames only).

  • Page 4: Operation

    Press the Link Test button to bypass TLPT when enabled. two-stranded TX to RX connectors installed at both ends. Note: This is a momentary override button; when Connect the fiber cables to the SSRFB10xx-100 media converter as described: released, the connection will return to its previous •...

  • Page 5: Half Duplex Network (512-Bit Rule)

    SNMP When a fault occurs on an incoming fiber link (1), the media converter transmits a See the on-line documentation that comes with Transition Networks FocalPoint™ Far-End Fault signal on the outgoing fiber link (2). In addition, the Far-End Fault software for applicable commands and usage.

  • Page 6: Bandwidth Allocation

    SSRFB10xx-100 Operation -- Continued Cable Specifications Product features - continued The physical characteristics must meet or exceed IEEE 802.3™ specifications. Bandwidth allocation Fiber cable Bandwidth allocation feature is available on the Center located SRFB converter Bit Error Rate: <10-9 only. The center converter supports independent ingress rate limiting on both the Single mode fiber (recommended): 9 µm...

  • Page 7: Technical Specifications

    The information in this user’s guide is subject to change. For the most up-to-date • Verify that the TX and RX cables are connected to the RX and TX ports, information on the SSRFB10xx-100 media converter, view the user’s guide on-line at: respectively, on the 100Base-FX converter. www.transition.com.
  • Page 8 SSRFB1029-10, SSRFB1029-102, SSRFB1029-103, SSRFB1040-100 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the SSRFB10xx-100 to which this declaration refers is in conformity with the following standards. EMC-CISPR 22:1985 Class A; EN 55022:1998 Class A; FCC Part 15 subpart B; 22 CFR...

  • Page 9: Compliance Information

    Konformität. In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document.

This manual is also suitable for:

Ssrfb1011-100Ssrfb1013-100Ssrfb1014-100Ssrfb1040-100Ssrfb1029-100Ssrfb1029-101 ... Show all
