User's Guide
SSETF10xx-205

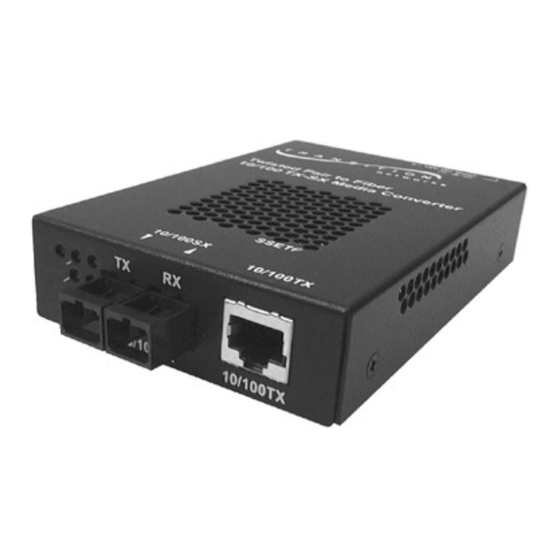

Stand-Alone Media Converter
• Ethernet and Fast Ethernet
• 10/100Base-TX to 10/100Base-SX
Transition Networks SSETF10xx-205
series Ethernet and Fast Ethernet media
converters connect 10/100Base-TX
twisted-pair copper cable to 10/100Base-
SX fiber-optic cable.
Port Two - Fiber-Optic
10/100Base-SX
ST, 850 nm multimode
2 km (1.2 mi.)* @ 10 Mb/s
60 m (197 ft.)* @ 100 Mb/s
SC, 850 nm multimode
2 km (1.2 mi.)* @ 10 Mb/s
60 m (197 ft.)* @ 100 Mb/s
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .4
Cable Specifications . . . . . . . . . . .7
Technical Specifications . . . . . . . .8
Troubleshooting . . . . . . . . . . . . . .9
Contact Us . . . . . . . . . . . . . . . . .11
Compliance Information . . . . . . .12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Transition Networks SSETF1011-205
Summary of Contents for Transition Networks SSETF1011-205

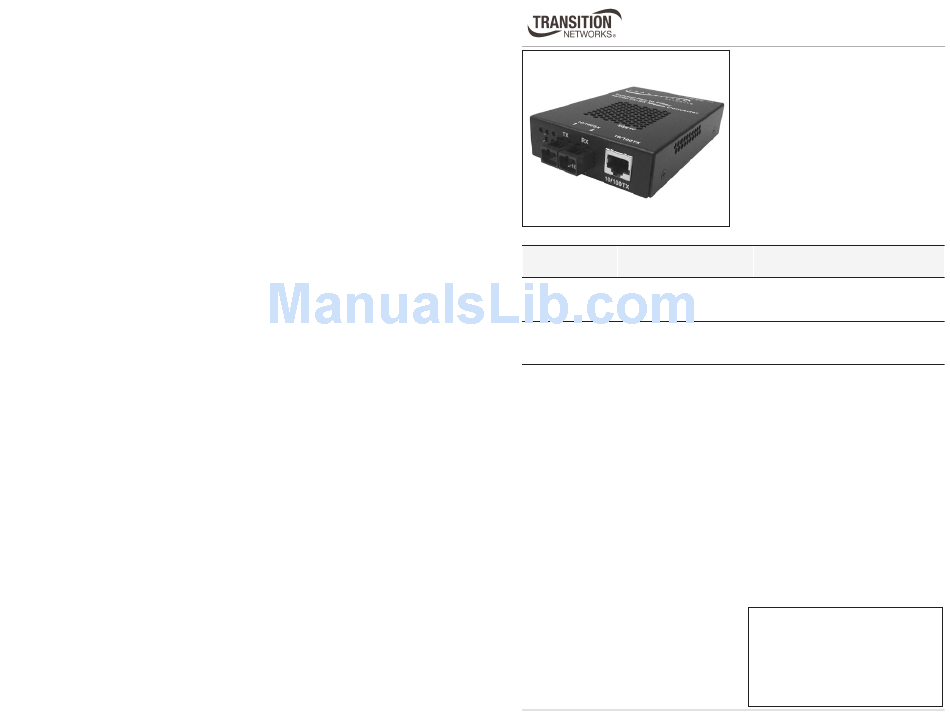

- Page 1 SX fiber-optic cable. Part Number Port One - Copper Port Two - Fiber-Optic 10/100Base-TX 10/100Base-SX SSETF1011-205 RJ-45 ST, 850 nm multimode 80 m (262 ft)* 2 km (1.2 mi.)* @ 10 Mb/s 60 m (197 ft.)* @ 100 Mb/s SSETF1013-205...
- Page 2 SSETF10xx-205 Optional Accessories (sold separately) Part Number Description SPS-1872-SA Optional External Power Supply; 18-72VDC Stand-Alone Output: 12.6VDC, 1.0 A SPS-1872-PS Optional External Power Supply; 18-72VDC Piggy-back; Output: 12.6VDC, 1.0 A E-MCR-04 12-slot media converter Rack (includes universal internal power supply) 17 x 15 x 5 in. (432 x 381 x 127 mm) WMBL Length: 4.0 in.
- Page 3 SSETF10xx-205 Installation -- Continued Power the Media Converter NOTE: The external power supply provided with this product is UL listed by the power supply’s manufacturer. Connect the barrel connector on the power adapter to the media converter’s power port (located on the back of the media converter). Connect the power adapter plug to AC power.
-
Page 4: Cable Specifications
62.5/125 µm Multimode fiber (optional): 100/140, 85/140, 50/125 µm Wavelength: 850 nm multimode Attenuation: <3.75 dB/km @ 850 nm SSETF1011-205 (100 Mb/s) Fiber Transmitter Power: min: -19.0 dBm Fiber Receiver Sensitivity: min: -24.0 dBm Link Budget: 5.0 dB SSETF1011-205 (10 Mb/s) Fiber Transmitter Power: min: -19.0 dBm... -
Page 5: Technical Specifications
SSETF10xx-205 Technical Specifications For use with Transition Networks Model SSETF10xx-205 or equivalent. Standards: IEEE 802.3™ Data Rate: 10 Mb/s, 100 Mb/s Dimensions: 3.25" x 1.0" x 4.7" (83 mm x 25 mm x 119 mm) Weight: 10 oz (283 g) (approximate) Power Consumption: 3.6 watts Power Supply:... - Page 6 Transition Networks 6475 City West Parkway, Minneapolis MN 55344 U.S.A. Model: SSETF10xx-205 Series Media Converters Part Number(s): SSETF1011-205, SSETF1013-205 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the SSETF10xx-205 to which this declaration refers is in conformity with the following standards.
-
Page 7: Compliance Information
SSETF10xx-205 Compliance Information CE Mark FCC Regulations This equipment has been tested and found to comply with the limits for a Class A & B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
