Quick Start Commissioning

This procedure is written from default parameter settings as the drive would be delivered from the factory.
7.1

Keypad control

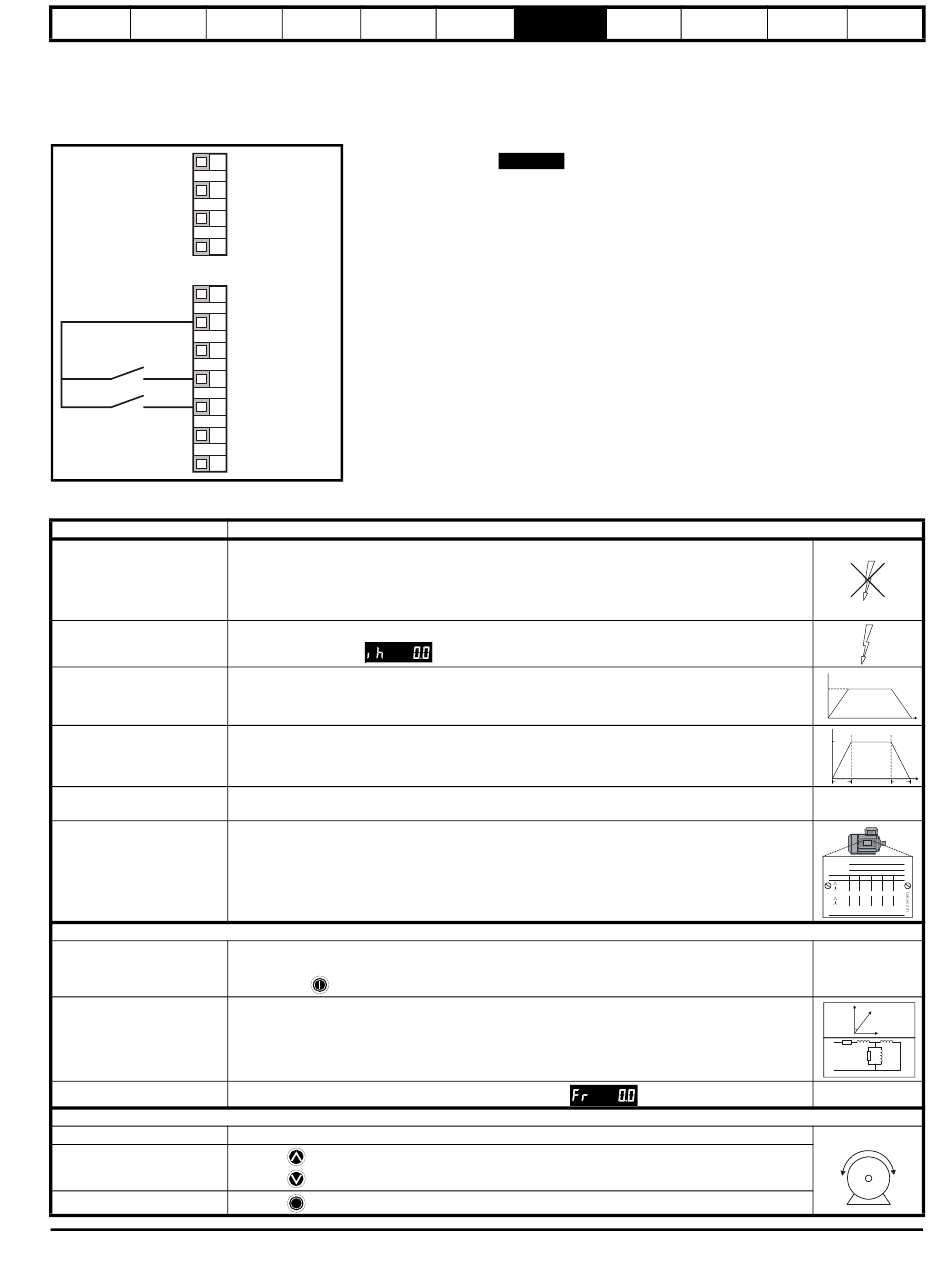

Figure 7-1 Minimum required control terminal connections
T1
T2
T3
T4
B1
B2
B3
B4
B5
B6
B7
Action
Before power up
Power up the drive
Enter minimum and maximum
speeds
Enter acceleration and
deceleration rates
Set keypad control
Enter motor nameplate details
Ready to autotune
Enable and run the drive
Autotune
Autotune complete
Ready to run
Run
Increasing and decreasing
speed
Stopping
VFD67 Size E to F Getting Started Guide
Issue Number: 1
Electrical Keypad and
Installation Display
0V
Not used
+10V reference output
Not used
Analog output
(motor speed)
+24V output
Digital output
(zero speed)
Drive Enable/Reset
Forward/Reverse
Not used
Not used
Ensure:
• The drive enable signal is not given, terminal B4 is open
• The motor is connected to the drive
The motor connection is correct for the drive Δ or Y
•
• The correct supply voltage is connected to the drive
Ensure:
• The drive displays:
Enter:
• Minimum speed Pr 01 (Hz)
• Maximum speed Pr 02 (Hz)
Enter:
• Acceleration rate Pr 03 (s/100Hz)
• Deceleration rate Pr 04 (s/100Hz)
Enter:
• PAd into Pr 05
Enter:
• Motor rated current in Pr 06 (A)
• Motor rated speed in Pr 07 (rpm)
• Motor rated voltage in Pr 08 (V)
• Motor rated power factor in Pr 09
• If the motor is not a standard 50/60Hz motor, set Pr 39 accordingly
Close:
• The enable signal
• Press the START key
The VFD67 will carry out a non-rotating autotune on the motor.
The motor must be stationary to carry out an autotune correctly.
The drive will carry out a non-rotating autotune every time it is first started after each power-up. If this will
cause a problem for the application, set Pr 41 to the required value.
When the autotune has been completed, the display will show:
The drive is now ready to run the motor.
Press the UP key to increase the speed
Press the DOWN key to decrease the speed
Press the STOP/RESET key to stop the motor
