3.2.2 Through-panel mounting
When the drive is through-panel mounted, the main terminal cover(s) must be removed in order to provide access to the mounting holes. Once the
drive has been mounted, the terminal cover(s) can be replaced.

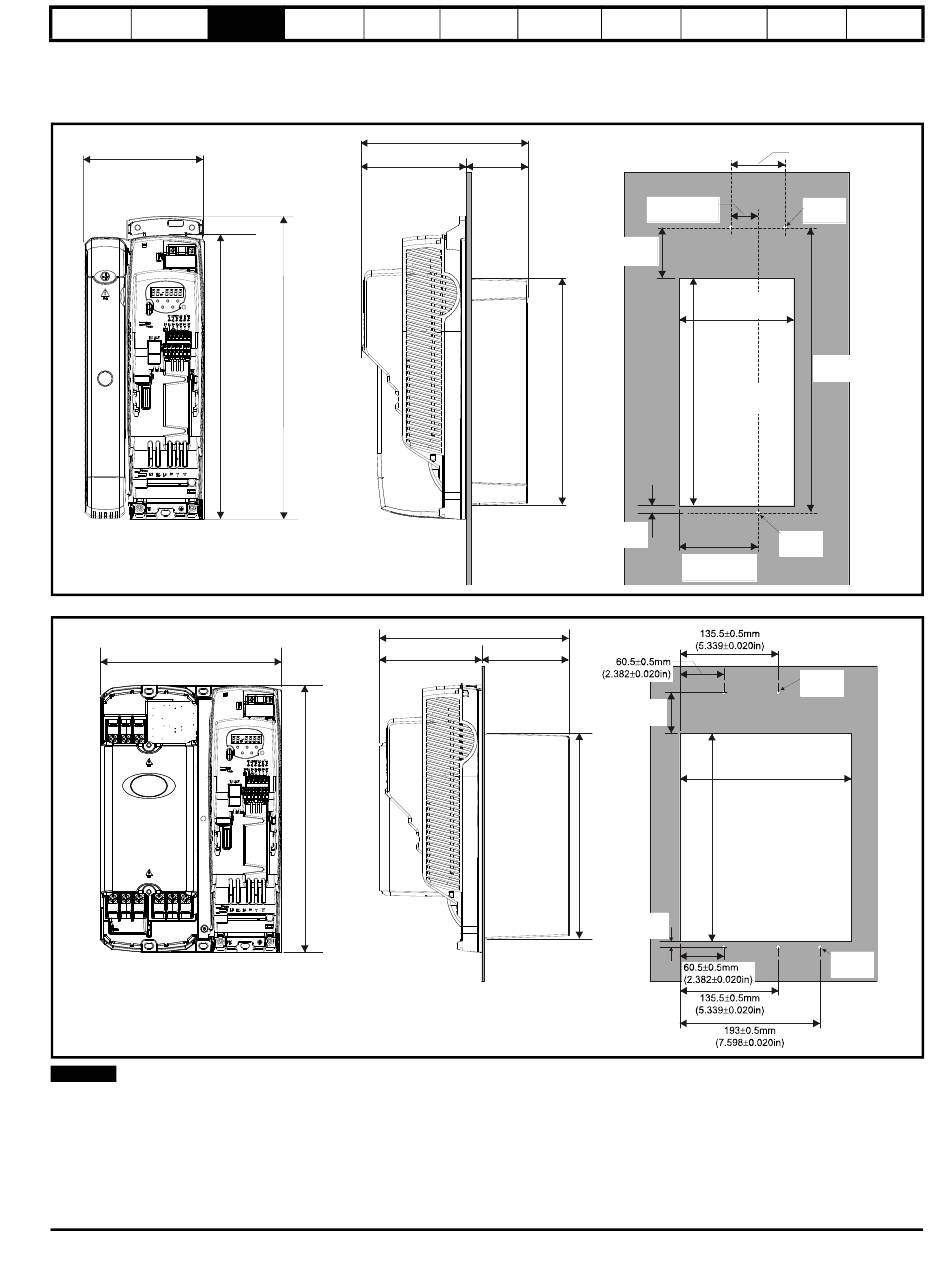

Figure 3-9 Through-panel mounting of a size E drive
155mm (6.102in)
368mm
(14.488in)
Figure 3-10 Through-panel mounting of a size F drive
250mm(9.843in)
NOTE
The control terminal cover must be removed on VFD67 sizes E and F to
allow access to the mounting holes for through panel mounting.
