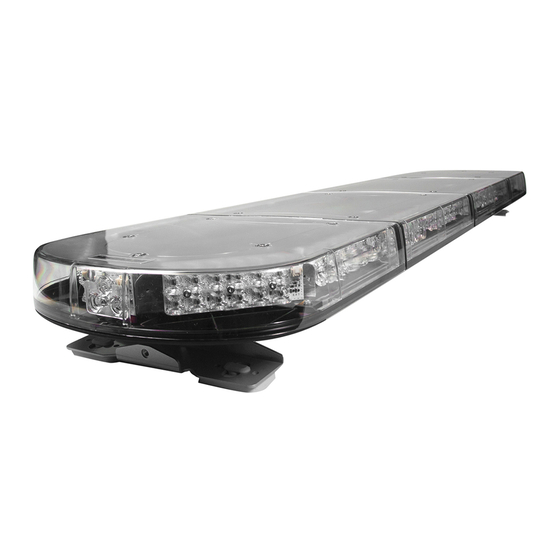

#EMG2000 MAGNUM™ DC LED Lightbar
IMPORTANT NOTICE TO INSTALLER: Make sure to read and understand
all instructions and warnings before proceeding with the installation of this
product. Ensure that the manual and any warning cards are delivered to the
end user of this equipment. Proper installation of the lightbar requires the
installer to have a thorough knowledge of automotive electronics, systems,
and procedures. Lightbars provide an essential function of an effective visual
warning system. The use of the lightbar does not insure that all drivers can
or will abide by or react to an emergency warning signal, especially at high
rates of speeds or long distances. The operator of the vehicle must never take
the right of way for granted and it is the operator's responsibility to proceed
safely. The effectiveness of the lightbar is highly dependant on the correct
mounting and wiring. The installer must read and follow the manufacturer's
installation instructions and warnings in the manual. The vehicle operator
should verify daily that the lightbar is securely fastened to the vehicle and
properly functioning before operating vehicle. The lightbar is intended for use
by authorized personnel only. It is the user's responsibility to ensure they
understand and operate the emergency warning devices in compliance with
the applicable city, state and federal laws and regulations. SoundOff Signal
assumes no liability for any loss resulting from the use of this warning device.
WARNING
•HIGH CURRENT interconnects must be properly terminated. Poor crimp quality can
cause heat
build-up and fire. Follow crimp connector manufacturer instructions.
•DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer
to vehicle
Owner's Manual for deployment zones.
•Do NOT use system to disconnect headlights, brake lights or other safety equipment.
•Unit may become hot to touch during normal operation.
•Failure to properly install connectors, fuses or wiring may cause vehicle failure or fire.
•Installation must only be performed by trained technician. Installer must determine
vehicle wiring
configuration and proper integration of system.
•Use proper wire gauge. All power wires connecting to positive (+) or negative (-)
battery terminal
or local chassis ground (-) must be sized to supply at least 125% of max. current and
properly fused at
power source.
•Install protective grommets when routing wire through firewall or metal.
1.800.338.7337 / www.soundoffsignal.com
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
Improper use or installation may void warranty coverage. To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at
www.soundoffsignal.com/sales-support. If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. or after hours 5 p.m. to 8 p.m. EST
at 1.800338.7337 (press #4 to skip the automated message). Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsigal.com.
S U P E R I O R C U S TO M E R R E L AT I O N S H I P S . S M A RT LY D E S I G N E D L I G H T I N G & E L E C T R O N I C S O L U T I O N S .
1

TABLE OF CONTENTS

PAGE
1
2
3
4-5
6
7
8
9
10
11
12
13
14
Components/Contents
Standard Equipment:
1 - EMG2000 MAGNUM™ LED Lightbar built to your specifications
Other Parts that may be included depending on your configuration:
1 - Vehicle Specific Hook Kit w/ Hardware*
2 - Fixed Height Mounting Brackets w/ Hardware or
1 - Flat Mount Hardware Kit or
2 - Headache Brackets w/ Hardware
*Kits will vary with each lightbar depending on vehicle specified on
order form.
Unpack Lightbar
1. Remove the lightbar from box and packaging.
2. Save packaging for later shipping.
3. Check components/contents.
4. Please reference these instructions for proper wiring and
installation.
Tools Required for Installation
• 1/2" Socket with ratchet or 1/2" box end
• Phillips Head Screwdriver
• Drill bit #30
This product contains high intensity LED devices. To
prevent eye damage, DO NOT stare into the light
NOTICE:
CONTENT
COMPONENTS/ CONTENTS
MODULE SPECIFICATIONS
CONTROL HARNESS
WARNING
!
beam at close range.
EMG2000-DC 10.15
