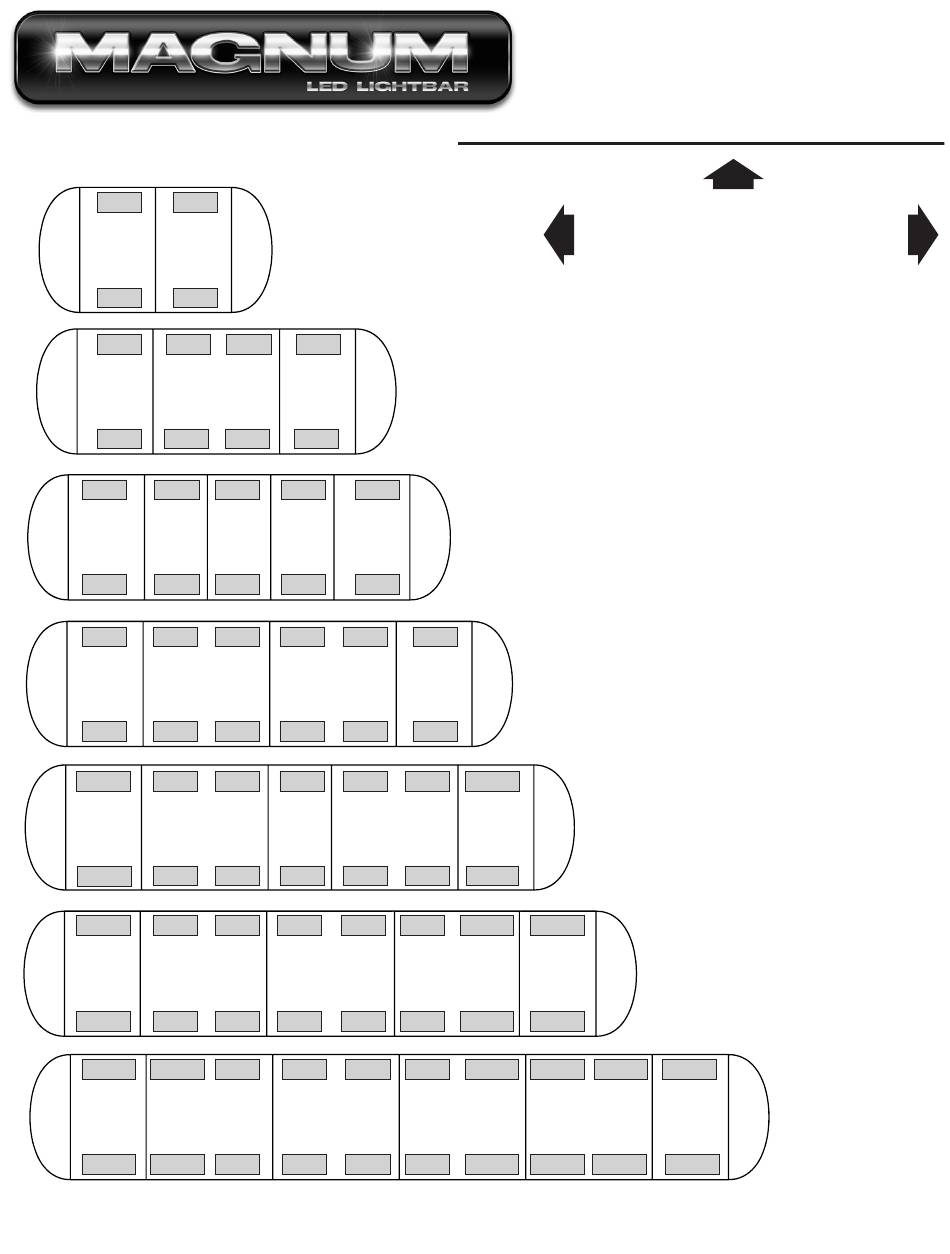

LIGHT MODULE WIRE HARNESS LOCATIONS

REPLACEMENT OF INBOARD AND CORNER MODULES:
1. Disconnect main power.
2. Remove top cover by removing screws.
3. Locate module and remove mounting screws. Pull or
slide module from lightbar.
4. Remove connector from rear of module by carefully pulling connector
35.5" BAR
5. Push module connector into replacement module ensuring locking
6. Replace module and hardware that fasten module to base
7. Restore power to bar and test new module to ensure functionality.
8. Replace top cover of bar with screws removed in step 2.
15
41.8" BAR
35
BLUE
16
48" BAR
36
BLUE
BLUE YELLOW BLUE
16 17
36 37
BLUE YELLOW
GREEN BLUE BLUE YELLOW BLUE
16 17
36 37
GREEN BLUE BLUE YELLOW BLUE
RED GREEN BLUE BLUE BLUE
16 17
36 37
RED GREEN BLUE BLUE BLUE
FRONT
DRIVER
SIDE
body from back of module.
latch is seated properly or connector is fully seated.
extrusion.
• Colors shown indicate wire colors on wire harness.
• Inboard modules: color/color (eg. red/red) wires go to
front inboard modules, color/white (eg red/white) go to
back inboard modules.
• Corner modules: orange/black wires go to front, red/
black wires go to back.
• Split center modules: follow previous front/back color
locations, and connect red wires from each side to the
split board "IN" connectors. The "OUT" / "TO MODULE"
connector goes to the short adapter wire harness and
then the module.
• Takedown modules: black/red wires with white or
black label.
• Alley modules: black/red wires with blue label
54.3" BAR
18
60.5" BAR
38
YELLOW BLUE BLUE
18 19 20
38 39 40
YELLOW BLUE BLUE
PASSENGER
SIDE
