Soundoff Signal Signal GHOST EGHST2 12 Series Manual

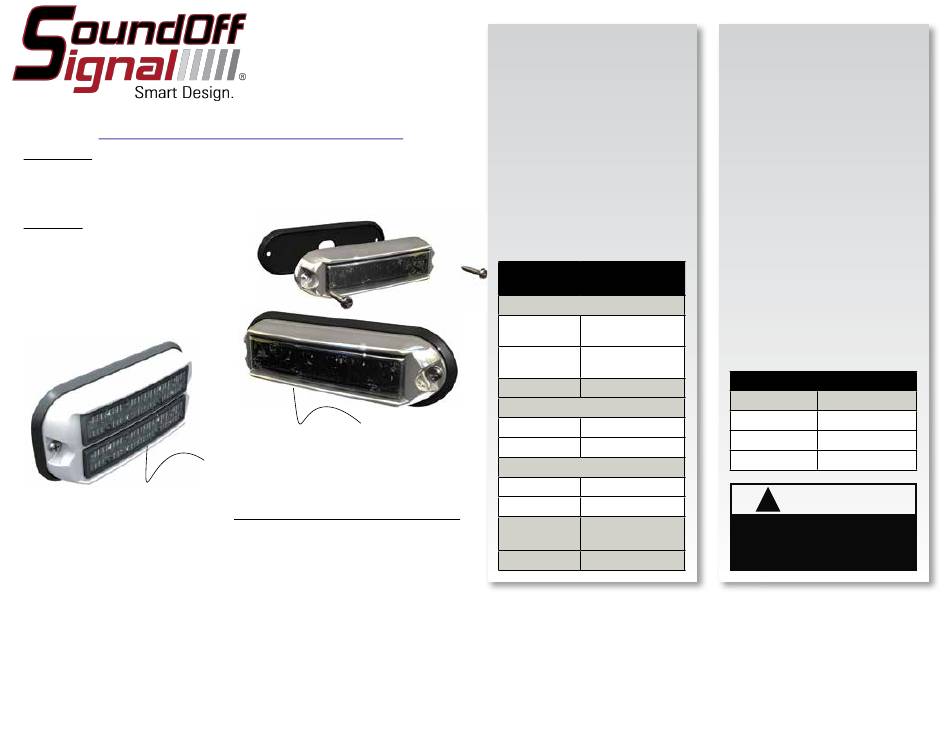

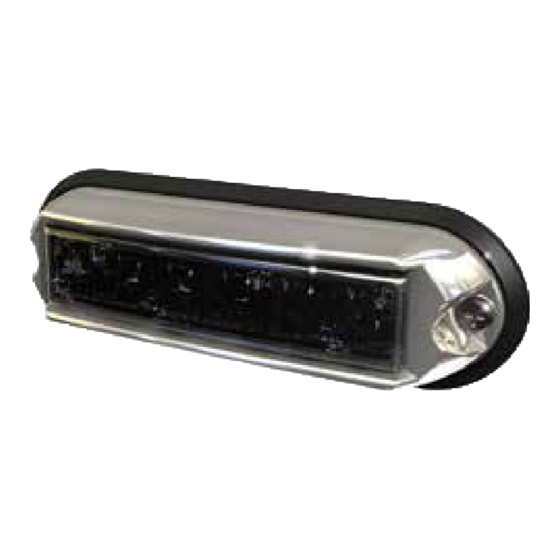

GHOST® SINGLE/DUAL SURFACE MOUNT LIGHT
Single Light:
Black Housing: #EGHST2(x)-12
Chrome Housing: #EGHST2(x)C-12
White Housing: #EGHST2(x)W-12
Dual Light:
Black Housing: #EGHST6(x)B-12
Chrome Housing: #EGHST6(x)C-12
White Housing: #EGHST6(x)W-12
Important Information:
• Warning devices are strictly regulated and governed by Federal, State and Municipal ordinances.
These devices shall be used ONLY on approved vehicles. It is the sole responsibility of the user of these
devices to ensure compliance.
• DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to your vehicle
Owner's Manual for the location of any air bag deployment zones.
• DO NOT connect this device to a strobe power supply. This product is self-contained and does not
require an external power supply.
EGHST2(x)C-12
EGHST6(x)W-12
INSTALLATION:
Establish the mounting position on the
vehicle. Use the gasket (included) as
ؽ" holes for
a template to
drill three
the light wire and pilot holes for the
mounting screws. Note: pilot holes are
4 / " on center.
7
8
Caution: Do not stretch the mounting
gasket as this may change the
required hole spacing.
TECHNICAL
SPECIFICATIONS
Overall Dimensions:
5.65" L x 1.06" H
Single
x 1.8 " D
5.5" L x 2.5" H
Dual
x 1 " D
Input Voltage: 10 - 16 Vdc
Current Consumption:
Single <1 amp
Dual <2 amps
# of LEDs:
Single 6 Generation 3 LEDs
Dual 12 Generation 3 LEDs
Operating
-40º to +65º C
Temperature:
Flash Patterns: 33
OPERATION:
WIRE CONNECTIONS
See setup procedure on second page.
The single GHOST® comes equipped with
an internal flasher with 33 user selectable
patterns that can be synchronized either
alternating or simultaneous with up to three
other lights. It can also be put into slave
mode and driven through an external flasher.
1. Connect the GHOST BLACK wire to a
good, convenient ground.
2. Connect the GHOST RED wire to one side
of a user supplied on/off switch. Connect
the other side of the switch, through a
5Amp fuse, to a source of
+10 - 16 Vdc.
NOTE: The GHOST is a factory sealed unit
that CANNOT be serviced in the field. Any
attempt to gain access to the GHOST unit
will most likely cause permanent damage
and void its warranty.
WIRE HOOK-UP TABLE
WIRE COLOR: CONNECT TO:
RED +10 - 16 Vdc
BLACK Ground (-)
WHITE Pattern Select
!
WARNING
This product contains high
intensity LED devices. To prevent
eye damage, DO NOT stare into
light beam at close range.
