Soundoff Signal MAGNUM H Installation Manual

IMPORTANT NOTICE TO INSTALLER: Make sure to read and understand all
instructions and warnings before proceeding with the installation of this product.
Ensure that the manual and any warning cards are delivered to the end user of
this equipment. Proper installation of the lightbar requires the installer to have
a thorough knowledge of automotive electronics, systems, and procedures.
Lightbars provide an essential function of an effective visual warning system. The
use of the lightbar does not insure that all drivers can or will abide by or react to
an emergency warning signal, especially at high rates of speeds or long distances.
The operator of the vehicle must never take the right of way for granted and it is
the operator's responsibility to proceed safely. The effectiveness of the lightbar is
highly dependant on the correct mounting and wiring. The installer must read and
follow the manufacturer's installation instructions and warnings in the manual.
The vehicle operator should verify daily that the lightbar is securely fastened to the
vehicle and properly functioning before operating vehicle. The lightbar is intended
for use by authorized personnel only. It is the user's responsibility to ensure they
understand and operate the emergency warning devices in compliance with the
applicable city, state and federal laws and regulations. SoundOff Signal assumes
no liability for any loss resulting from the use of this warning device.
Components/Contents
Standard Equipment:

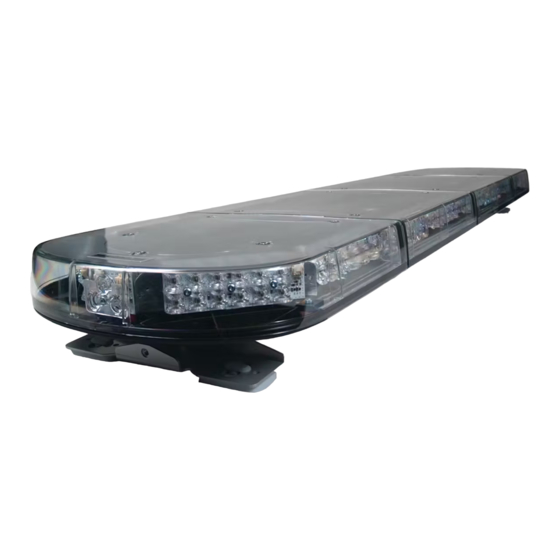

1 - EMHLB MAGNUM H™ LED Lightbar built to your specifications
Other Parts that may be included depending on your configuration:
1 - Vehicle Specific Mounting Brackets
Unpack Lightbar
1. Remove the lightbar from box and packaging.
2. Save packaging for later shipping.
3. Check components/contents.
4. Please reference these instructions for proper wiring and installation.
Tools Required for Installation
• 1/2" Socket with ratchet or 1/2" box end
• Phillips Head Screwdriver
• Drill bit #30
1.800.338.7337 / www.soundoffsignal.com
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices. Improper use or installation may void
warranty coverage. To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/sales-
support. If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. or after hours 5 p.m. to 8 p.m. EST at 1.800.338.7337 (press
#4 to skip the automated message). Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsignal.com.
S U P E R I O R C U S TO M E R R E L AT I O N S H I P S . S M A RT LY D E S I G N E D L I G H T I N G & E L E C T R O N I C S O L U T I O N S .
1
TABLE OF CONTENTS
PAGE
1 COMPONENTS/ CONTENTS
2 MODULE SPECIFICATIONS
3 TECHNICAL/ POWER SPECIFICATIONS
4 ELECTRICAL INSTALLATION
5 ELECTRICAL INSTALLATION (CONTINUED)
5 FLASH PATTERNS AND CONNECTOR INSTRUCTIONS
6 LIGHT MODULE REPLACEMENT
6
7 WARRANTY AND RETURN GOODS PROCEDURE
Important Information:
• Warning devices are strictly regulated and governed by Federal,
State, and Municipal ordinances. These devices shall be used ONLY
on approved vehicles. It is the sole responsibility of the user of these
devices to ensure compliance.
• DO NOT install this product or route any wires in the Air Bag
Deployment Zone. Refer to your vehicle Owner's Manual for the
location of any air bag deployment zones.
• DO NOT connect this device to a strobe power supply. This
product is self-contained and does not require an external power
supply.
!
This product contains high intensity LED devices. To
prevent eye damage, DO NOT stare into the light
NOTICE:
CONTENT
REPLACEMENT PARTS
WARNING
beam at close range.
EMHLB 0620
