Soundoff Signal bluePRINT SYNC Quick Start Manual

SYNC
®
WARNING
•HIGH CURRENT interconnects must be properly terminated. Poor crimp quality can cause heat build-up and
fire. Follow crimp connector manufacturer instructions.
•DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to vehicle Owner's
Manual for deployment zones.
•Do NOT use system to disconnect headlights, brake lights or other safety equipment.
•Unit may become hot to touch during normal operation.
•Failure to properly install connectors, fuses or wiring may cause vehicle failure or fire.
•Installation must only be performed by trained technician. Installer must determine vehicle wiring
configuration and proper integration of system.
•Use proper wire gauge. All power wires connecting to positive (+) or negative (-) battery terminal or local
chassis ground (-) must be sized to supply at least 125% of max. current and properly fused at power source.
•Install protective grommets when routing wire through firewall or metal.
1.800.338.7337 / www.soundoffsignal.com
1
bluePRINT SYNC
®
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/tech-services/returns/.
If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press #4).
Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsignal.com.
INTRODUCTION:
The bluePRINT SYNC
patterns between vehicles that are commonly equipped with
bluePRINT SYNC. Any time two or more vehicles are utilizing
the same pattern, they will be synchronized.
Configuring the system to utilize the synchronization functions
requires our bluePRINT3 app. Also, the following hardware
must have the listed minimum version of firmware installed.
NOTICE:
Improper use or installation may void warranty coverage.
E N H A N C I N G S A F E T Y T H R O U G H I N N O VAT I O N
module synchronizes displayed flash
®
Central Controller: 3.08
CONTENTS

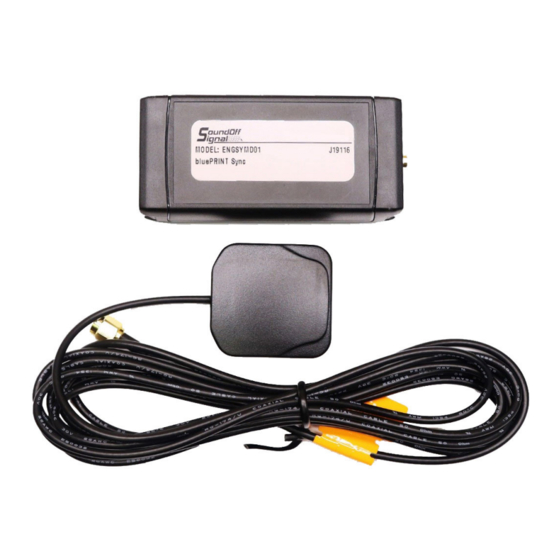

QTY COMPONENT
1 SYNC MODULE
1 GPS ANTENNA
1 CAT5e 3' CABLE
1 CAT5e 7 BASE-T PIGTAIL SPLITTER
1 PRODUCT WARNING CARD
1 INSTALLATION INSTRUCTION SHEET
BluePrintSYNC 0220
