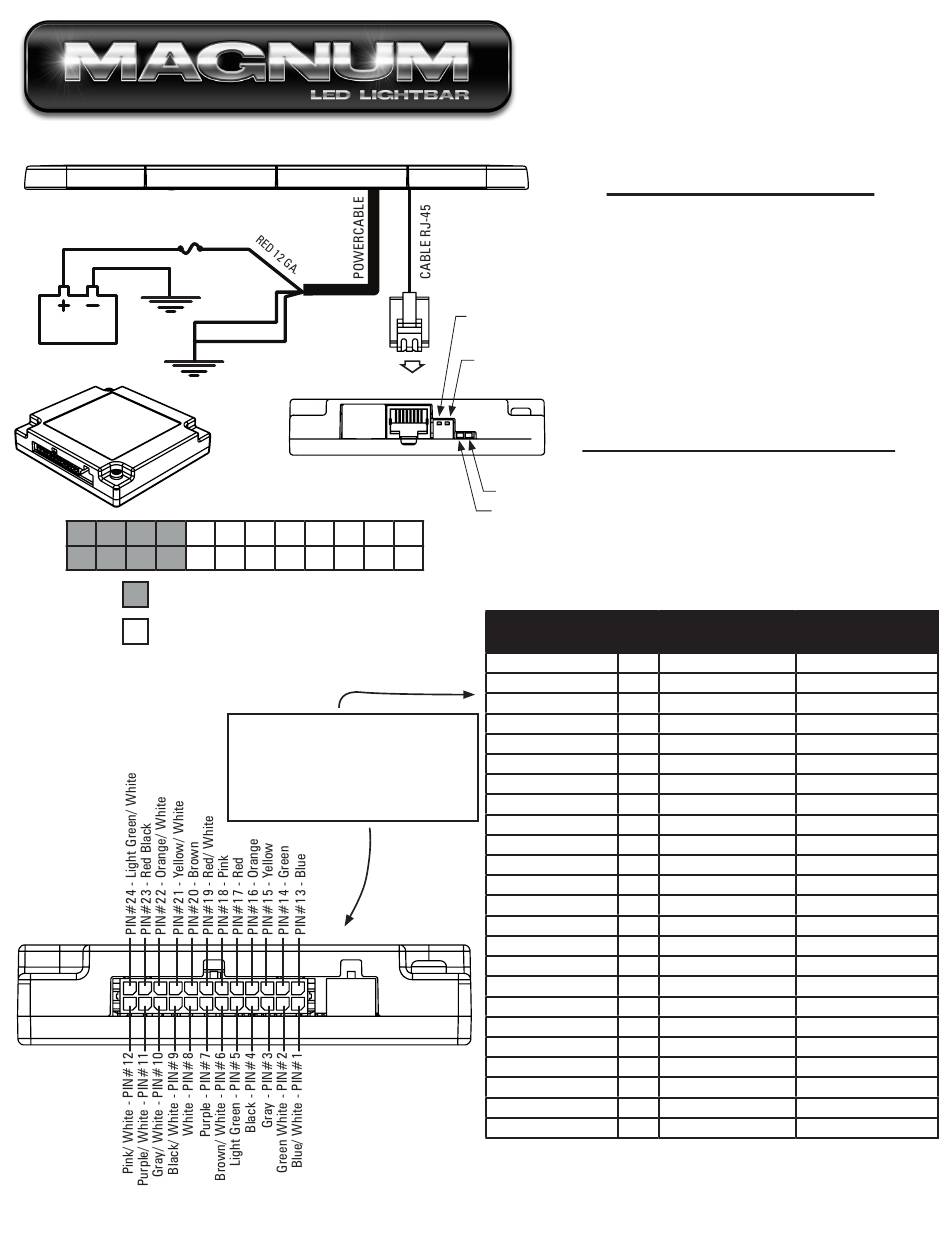

#EMG2000 MAGNUM™ DC LED Lightbar
40Amp FUSE
(Customer Supplied)
GROUND
GROUND
Connector Pinning Chart
24 23 22 21 20 19 18 17 16 15 14 13
12 11 10 9
Controlled by Active Low Switch #2
Controlled by Active Low Switch #1
Note - Reference Switch table for explanation of what inputs are affected by
Active Low Switches.
10
DRAIN WIRE
BLACK 12 GA.
8 7 6 5 4 3 2
Functional Inputs
Functional Inputs connect to your control
head or switching unit. Applying +12Vdc
to any functional Input will activate it's
function (default-active high).
Switch #1
Switch #2
· Up = Active High
· Down = Active Low
· When the switch is in the up position inputs
Red LED
Green LED
· When the switch is in the down position Inputs
1
Wire Color
(Major Color/ Stripe)
Light Green/ White
Red/ Black
Orange/ White
Yellow/ White
Brown
Red/ White
Pink
Red
Orange
Yellow
Green
Blue
Pink/ White
Purple/ White
Gray/ White
Black/ White
White
Purple
Brown/ White
Light Green
Black
Gray
Green/ White
Blue/ White
WITH BREAKOUT BOX
RED LIGHT
No Input Flashes every 5 seconds
Input Activated Steady On
Added Input Brief Flash
GREEN LIGHT
Command Rec'd Steady On Has good connection
(See Below)
connected to that switch are active high. To
activate an active high input, apply 12Vdc.
connected to that switch are active low. To
activate the active low, apply ground (negative).
Standard Functions
Pln#
(4 Wire Arrow Control)
24 Left Turn Signal*
23 Right Turn Signal*
22 Rear Inboard 3
21 Rear Inboard 2
20 Front Take down
19 Alley Flash
18 Alley Driver
17 Alley Passenger
16 Front Inboard 3
15 Front Inboard 2
14 Front Inboard 1
13 Front Corners
12 Arrow, Left*
11 Arrow, Center*
10 Arrow, Right*
9 Arrow, Warning
8 Pattern Select*
7 Low Power
6 Front Take down Flash
5 Auxilary*
4 Cruise Lights*
3 Mode Select*
2 Rear Inboard 1
1 Rear Corners
Discrete Functions
(8 Wire Arrow Control)
Discrete Output #4*
Discrete Output #3*
Discrete Output #2*
Discrete Output #1* (L)*
Front Take down
Alley Flash
Alley Driver
Alley Passenger
Front Inboard 3
Front Inboard 2
Front Inboard 1
Front Corners
Discrete Output #8 (R)*
Discrete Output #7*
Discrete Output #6*
Discrete Output #5*
Pattern Select*
Low Power
Front Take down Flash
Auxilary*
Cruise Lights*
Mode Select*
Rear Inboard 1
Rear Corners
EMG2000-DC 10.15
