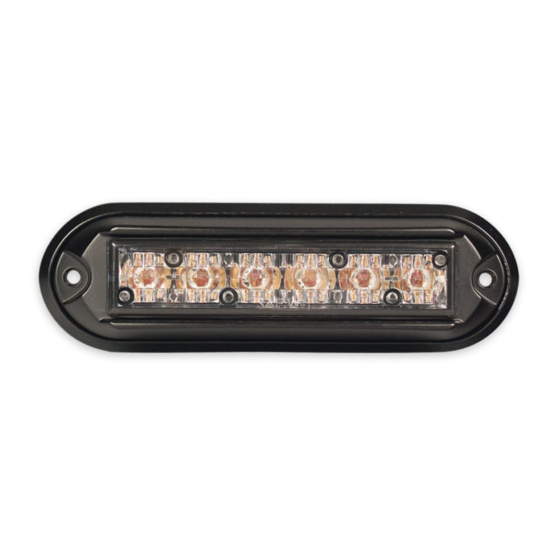

Single surface mount light w/ permanent mount bracket

Advertisement

Quick Links

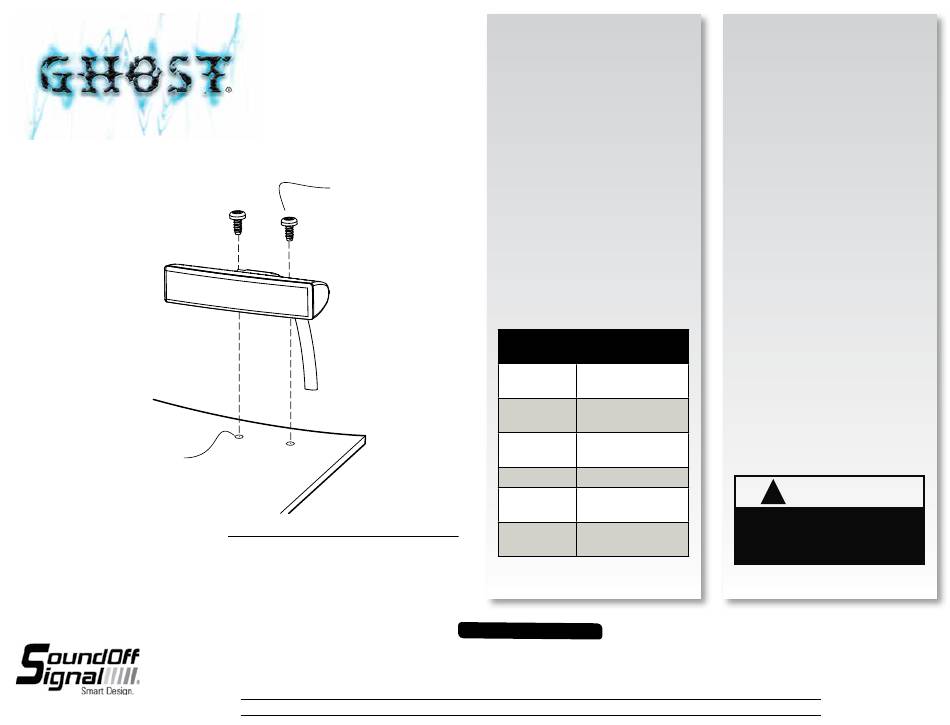

GHOST® SINGLE SURFACE
MOUNT LIGHT W/ PERMANENT
MOUNT BRACKET
EGHST4(x)B - Black
Screw Mount
Hole with #27 drill
Important Information:
• DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to your vehicle
Owner's Manual for the location of any air bag deployment zones.
• DO NOT connect this device to a strobe power supply. This product is self-contained and does not
require an external power supply.
Warning devices are strictly regulated and governed by Federal, State and Municipal ordinances. These devices shall be used ONLY on approved vehicles. It is the sole responsibility of the user of these devices to ensure compliance.
1.800.338.7337 / www.soundoffsignal.com
Supplied #10 thread
forming screw.
To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/sales-support.
If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. at 1.800.338.7337 (press #4 to skip the automated message).
Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsigal.com.
S U P E R I O R C U S TO M E R R E L AT I O N S H I P S . S M A RT LY D E S I G N E D L I G H T I N G & E L E C T R O N I C S O L U T I O N S .
INSTALLATION:
WARNING! This product contains high
intensity LED devices. To prevent eye
damage, DO NOT stare into light beam at
close range.
1. Screw Mount - Establish a position on
the vehicle. Use the mounting slots as
a template to mark hole locations. Drill
a hole using a #27 drill bit. The Torx
screws provided are self-tapping.
2. Loosen the two #10 TORX screws on the
back of each housing to adjust the angle
of the GHOST. After adjustment, tighten
the TORX screws.
TECHNICAL
SPECIFICATIONS
Overall
4.0"L x 0.88"H x
Dimensions:
1.75"D
Input Voltage
10-30Vdc
Range:
Current
0.75A / Module*
Consumption:
# of LEDs: 6 Generation 3 LEDs
Operating
-20º to +65º C
Temperature:
Light Sync
Yes
Technology:
*Pattern Dependent
IMPORTANT INFORMATION:
OPERATION:
WIRE CONNECTIONS
See setup procedure on second page.
The single GHOST comes equipped with
an internal flasher with 33 user select-
able patterns that can be synchronized
either alternating or simultaneous with up
to three other lights. It can also be put
into slave mode and driven through an
external flasher.
1. Connect the GHOST BLACK wire to a
good, convenient ground.
2. Connect the GHOST RED wire to one side
of a user supplied on/off switch. Connect
the other side of the switch, through a
5Amp fuse, to a source of +10-30Vdc.
NOTE: The GHOST™ is a factory sealed
unit that CANNOT be serviced in the
field. Any attempt to gain access to the
GHOST™ unit will most likely cause
permanent damage and void its warranty.
1 SINGLE LIGHT
Follow the ID selection steps and set the
GHOST to the following ID:
- Alternating (default): ID#1 or ID#3.
(inludes cycle patterns
and steady burn patterns)
- Simultaneous: ID#2 or ID#4. (both
lights will flash together
regardless of pattern)
(Continued on opposite side)
!
WARNING
This product contains high
intensity LED devices. To prevent
eye damage, DO NOT stare into
light beam at close range.
EGHST4(xx) 07.14
