Soundoff Signal MPOWER EMPSC0Z3V-W Manual

Protected by U.S. Patent 10,703,260 and Patents Pending
https://soundoffsignal.com/legal/patent-notification/
WARNING
• HIGH CURRENT interconnects must be properly terminated. Poor crimp
quality can cause heat build-up and fire. Follow the crimp connector
manufacturer instructions.
• DO NOT install this product or route any wires in the Air Bag Deployment
Zone. Refer to vehicle Owner's Manual for deployment zones.
• Do NOT use system to disconnect headlights, brake lights or other safety
equipment.
• Unit may become hot to touch during normal operation.
• Failure to properly install connectors, fuses or wiring may cause vehicle
failure or fire.
• Installation must only be performed by trained technician. Installer must
determine vehicle wiring configuration and proper integration of system.
• Use proper wire gauge. All power wires connecting to positive (+) or
negative (-) battery terminal or local chassis ground (-) must be sized to
supply at least 125% of max. current and properly fused at power source.
• Install protective grommets when routing wire through firewall or metal.
• Petroleum/silicone based lubricants will cause the silicone lens to discolor.
1.800.338.7337 / www.soundoffsignal.com
7X3 SILICONE SCENE LIGHT
EMPSC0Z3V-W - 7X3 Quick Mount
EMPSC0Z3W-W - 7X3 Screw Mount
EMPSC0Z3X-W - 7X3 Stud Mount

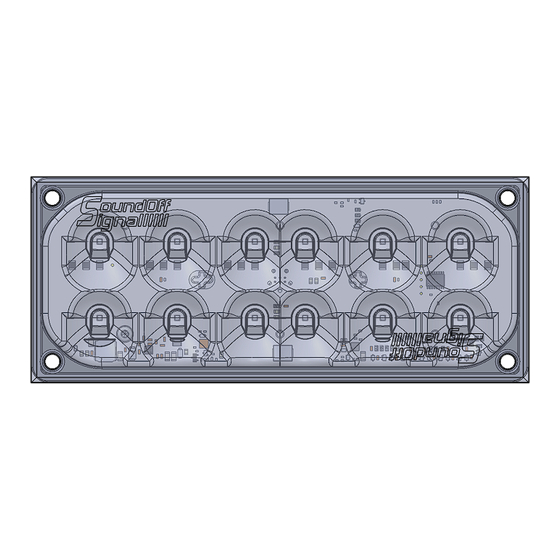

7x3 Scene Light Shown
NOTICE:
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning
devices. Improper use or installation may void warranty coverage.To review our Limited Warranty Statement & Return Policy
for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/tech-services/returns/. If you have
questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press
#4). Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsignal.com.
E N H A N C I N G S A F E T Y T H R O U G H I N N O VAT I O N
With Clear Duty® Technology
DIMENSIONS . . . . . . . . . . . . . . . . . . 2
SCENE LIGHT OPTIONS . . . . . . . . . . . 2
TECHNICAL SPECIFICATIONS . . . . . . 2
WIRING INFORMATION . . . . . . . . . 3
QUICK MOUNT INSTALLATION . . . . . 4
STUD MOUNT INSTALLATION . . . . . 4
SCREW MOUNT INSTALLATION . . . . 5
RETENTION CLIP INSTRUCTIONS . . . 6
WARNING
!
ROUTE WIRES ONLY IN LOCATIONS THAT ARE NOT SUBJECTED TO
POTENTIAL WEAR. MAKE SURE TO AVOID ROUTING WIRES IN THE
DEPLOYMENT AREA OF YOUR AIR BAG. REFER TO YOUR VEHICLE'S
OWNER'S MANUAL FOR AIRBAG DEPLOYMENT ZONES.
7X3 Silicone_SCENE
00KPJL 0323 REV A
