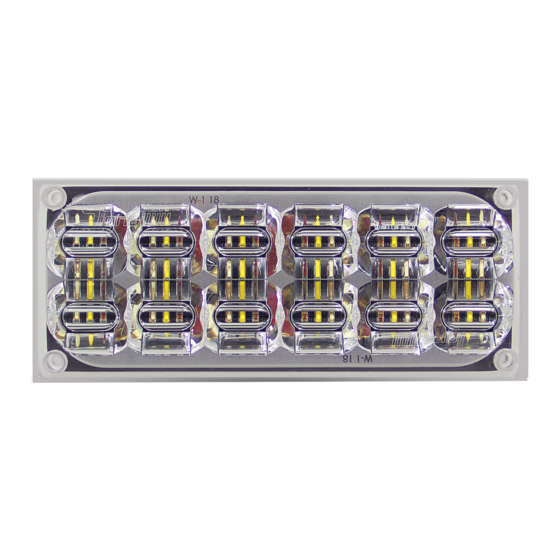

Backup light with clear duty technology
Hide thumbs Also See for Mpower EMPSC07M Series:

Advertisement

Quick Links

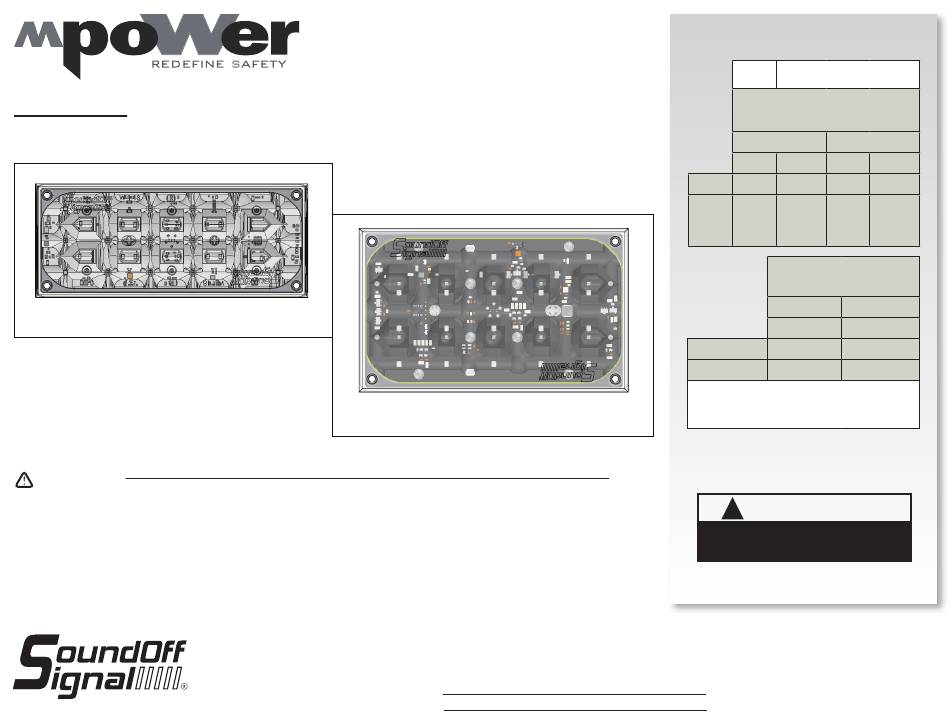

with Clear Duty® Technology
BACKUP LIGHT
EMPSC07M(x)-(x) - Quick Mount, Screw Mount, & Stud Mount
EMPSB0(xxx)-(x) - Quick Mount, Screw Mount, & Stud Mount
7X3 BACKUP LIGHT
WARNING
•HIGH CURRENT interconnects must be properly terminated. Poor crimp quality can cause heat build-up and fire. Follow crimp connector
manufacturer instructions.
•DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to vehicle Owner's Manual for deployment zones.
•Unit may become hot to touch during normal operation.
•Failure to properly install connectors, fuses or wiring may cause vehicle failure or fire.
•Installation must only be performed by trained technician. Installer must determine vehicle wiring configuration and proper integration of system.
•Use proper wire gauge. All power wires connecting to positive (+) or negative (-) battery terminal or local chassis ground (-) must be sized to
supply at least 125% of max. current and properly fused at power source.
•Install protective grommets when routing wire through firewall or metal.
1.800.338.7337 / www.soundoffsignal.com
1
®
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/tech-services/returns/.
If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press #4).
Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsignal.com.
6X4 BACKUP LIGHT
NOTICE:
Improper use or installation may void warranty coverage.
E N H A N C I N G S A F E T Y T H R O U G H I N N O VAT I O N
MPOWER
BACKUP
LIGHT
®
TECHNICAL SPECIFICATIONS
Input
9-32Vdc
Voltage:
BACKUP LIGHT
WITH WARNING
CURRENT CONSUMPTION (Amps)
12.8Vdc
25.6Vdc
Peak
Average
Peak
Red
1.45
0.73
0.73
Amber,
Blue,
1.66
0.83
0.83
Green or
White
BACKUP LIGHT
CURRENT CONSUMPTION (Amps)
12.8Vdc
25.6Vdc
Peak
HIGH (SINGLE)
0.86
LOW (DUAL)
0.43
AFTER POWER IS ON, touching the WHITE wire to the
ground will allow you to change various settings on the
module. (refer to page 6).
NOTE: It is recommended to use the Stud Mount
option for any dynamic mount surfaces (i.e.
Swining Panels, Doors, and Tail Gates).
WARNING
!
This product contains high intensity LED devices.
To prevent eye damage, DO NOT stare into the
light beam at close range.
Protected by U.S. Patent 10,703,260 and Patents Pending
https://soundoffsignal.com/legal/patent-notification/
7x3 Silicone_REVERSE 0321
Average
0.36
0.42
Peak
0.43
0.22

Advertisement

loading
Need help?

Need help?

Do you have a question about the Mpower EMPSC07M Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Soundoff Signal Mpower EMPSC07M Series

  • Page 1 Improper use or installation may void warranty coverage. To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/tech-services/returns/. If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press #4).
  • Page 2 ® QUICK MOUNT INSTALLATION 1. Drill a 3/4" wire hole. 2. Insert (4) silicone plugs into light to seal screw holes. with Clear Duty® Technology NOTE: Coating the exterior of the plug in 50% isopropyl alcohol, 50% water mix (Hand sanitizer works well) will allow the plug to slip into place easier, and the mixture will evaporate out leaving FIG.
  • Page 3 ® SCREW MOUNT INSTALLATION 1. Drill (4) 5/16" holes to mount light. Drill 3/4" wire hole. See Fig. 2 with Clear Duty® Technology 2. Insert the well nuts into the 4 drilled holes. Fully seat to mounting surface. 3. Align the gasket to the mounting surface. NOTE: Horizontal and vertical orientations indicated on gasket for proper seal.
  • Page 4 Improper use or installation may void warranty coverage. To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/tech-services/returns/. If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press #4).
  • Page 5 ® STUD MOUNT INSTALLATION 1. Drill (2) 1/4" holes to mount light. Drill 3/4" wire hole. See Fig. 2 with Clear Duty® Technology 2. Insert (4) silicone plugs into light to seal screw holes. NOTE: Coating the exterior of the plug in 50% isopropyl alcohol, 50% water mix (Hand sanitizer FIG.
  • Page 6 ® WIRING AND TABLE INFORMATION OVER-VOLTAGE PROTECTION When an over-voltage condition is detected, the module will flash an over-voltage warning pattern of 50mS ON/950mS OFF to alert of the over-voltage condition and protect the electronics from damage due to heat/ voltage.
  • Page 7: Flash Patterns

    ® WIRING AND TABLE INFORMATION (CONT.) with Clear Duty® Technology FOR THE 7X3 BACKUP LIGHT WITH WARNING ONLY SIMULTANEOUS/ALTERNATE This function can only be changed when the LED module is in a flashing mode (disabled in cruise or steady ON functions) and only has an effect when at least 2 LED modules have the green sync wire connected together. When the light is flashing, momentarily connect the white wire to ground for >3S and <4S (light will go steady high, steady low, off, steady high) then release.
  • Page 8 Improper use or installation may void warranty coverage. To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/tech-services/returns/. If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press #4).
