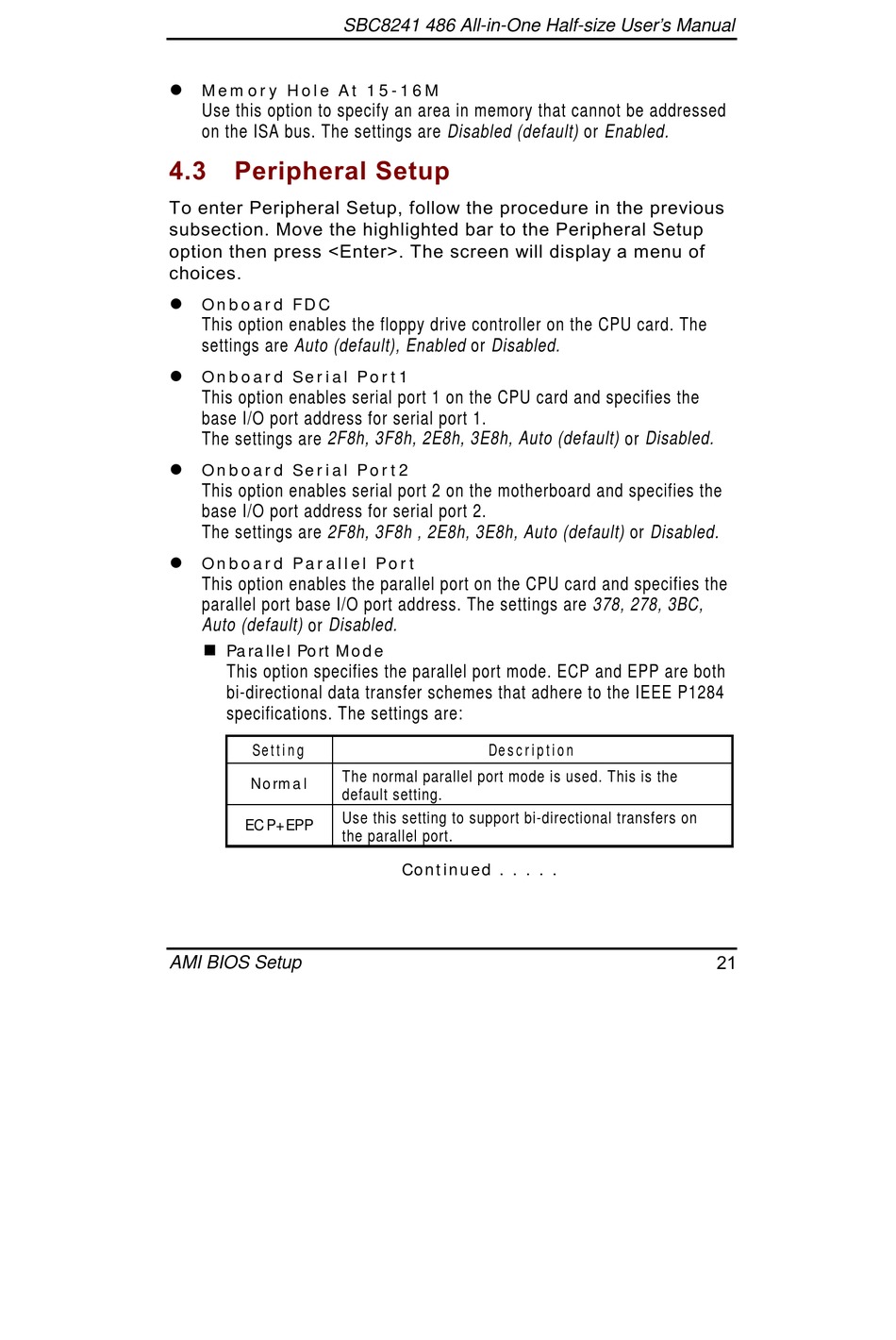

AXIOMTEK SBC8241 User Manual page 29

#" Memory Hole At 15-16M
Use this option to specify an area in memory that cannot be addressed
on the ISA bus. The settings are Disabled (default) or Enabled.

%  '
$
 %






 %

   C5 D$




Onboard FDC
#"
This option enables the floppy drive controller on the CPU card. The
settings are Auto (default), Enabled or Disabled.
#" Onboard Serial Port1
This option enables serial port 1 on the CPU card and specifies the
base I/O port address for serial port 1.
The settings are 2F8h, 3F8h, 2E8h, 3E8h, Auto (default) or Disabled.
#" Onboard Serial Port2
This option enables serial port 2 on the motherboard and specifies the
base I/O port address for serial port 2.
The settings are 2F8h, 3F8h , 2E8h, 3E8h, Auto (default) or Disabled.
#" Onboard Parallel Port
This option enables the parallel port on the CPU card and specifies the
parallel port base I/O port address. The settings are 378, 278, 3BC,
Auto (default) or Disabled.
!" Parallel Port Mode
This option specifies the parallel port mode. ECP and EPP are both
bi-directional data transfer schemes that adhere to the IEEE P1284
specifications. The settings are:
Setting
Normal
ECP+EPP

AMI BIOS Setup
SBC8241 486 All-in-One Half-size User's Manual
Description
The normal parallel port mode is used. This is the
default setting.
Use this setting to support bi-directional transfers on
the parallel port.
Continued . . . . .
(#
