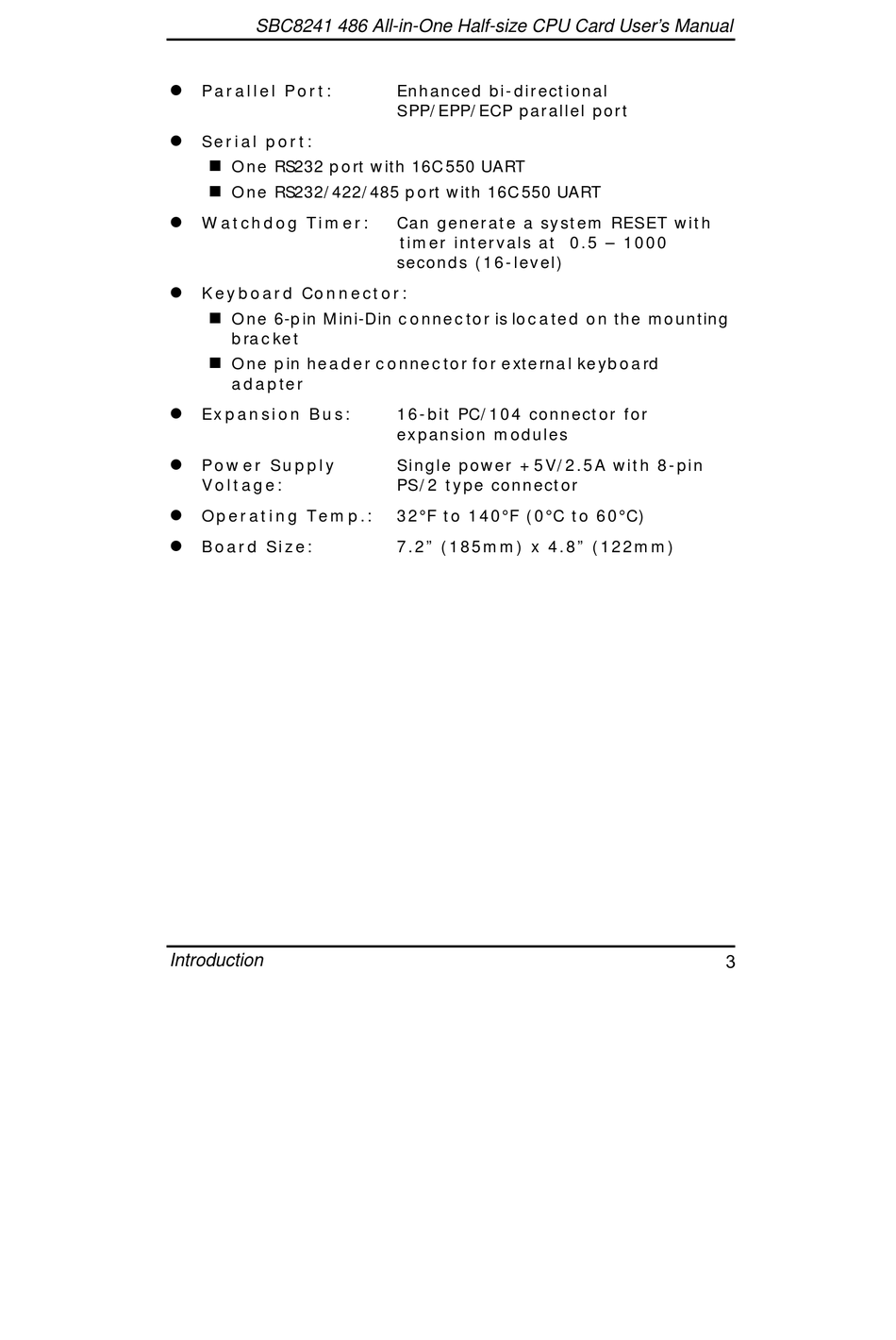

SBC8241 486 All-in-One Half-size CPU Card User's Manual
#" Parallel Port:
Serial port:
#"
!" One RS232 port with 16C550 UART
!" One RS232/422/485 port with 16C550 UART
#" Watchdog Timer:
#" Keyboard Connector:
!" One 6-pin Mini-Din connector is located on the mounting
bracket
!" One pin header connector for external keyboard
adapter
#" Expansion Bus:
#" Power Supply
Voltage:
#" Operating Temp.:
#" Board Size:
Introduction
Enhanced bi-directional
SPP/EPP/ECP parallel port
Can generate a system RESET with
timer intervals at 0.5 – 1000
seconds (16-level)
16-bit PC/104 connector for
expansion modules
Single power +5V/2.5A with 8-pin
PS/2 type connector
32°F to 140°F (0°C to 60°C)
7.2" (185mm) x 4.8" (122mm)
