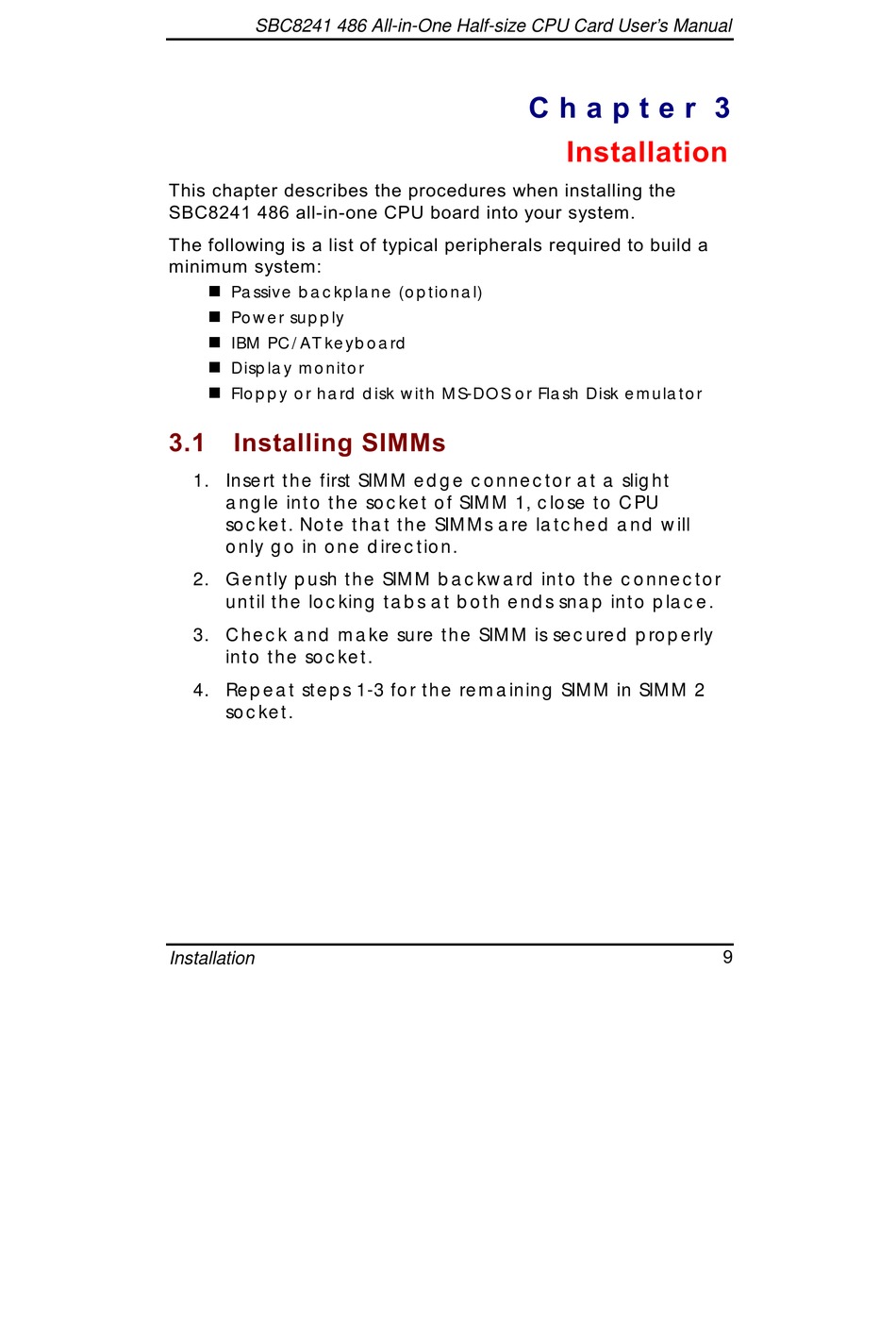

SBC8241 486 All-in-One Half-size CPU Card User's Manual
$




%&'()#)'2 *
*

$




 /




  >
!" Passive backplane (optional)
!" Power supply
!" IBM PC/AT keyboard
Display monitor
!"
!" Floppy or hard disk with MS-DOS or Flash Disk emulator
%  &    &
1. Insert the first SIMM edge connector at a slight
angle into the socket of SIMM 1, close to CPU
socket. Note that the SIMMs are latched and will
only go in one direction.
2. Gently push the SIMM backward into the connector
until the locking tabs at both ends snap into place.
3. Check and make sure the SIMM is secured properly
into the socket.
4. Repeat steps 1-3 for the remaining SIMM in SIMM 2
socket.
Installation


.
