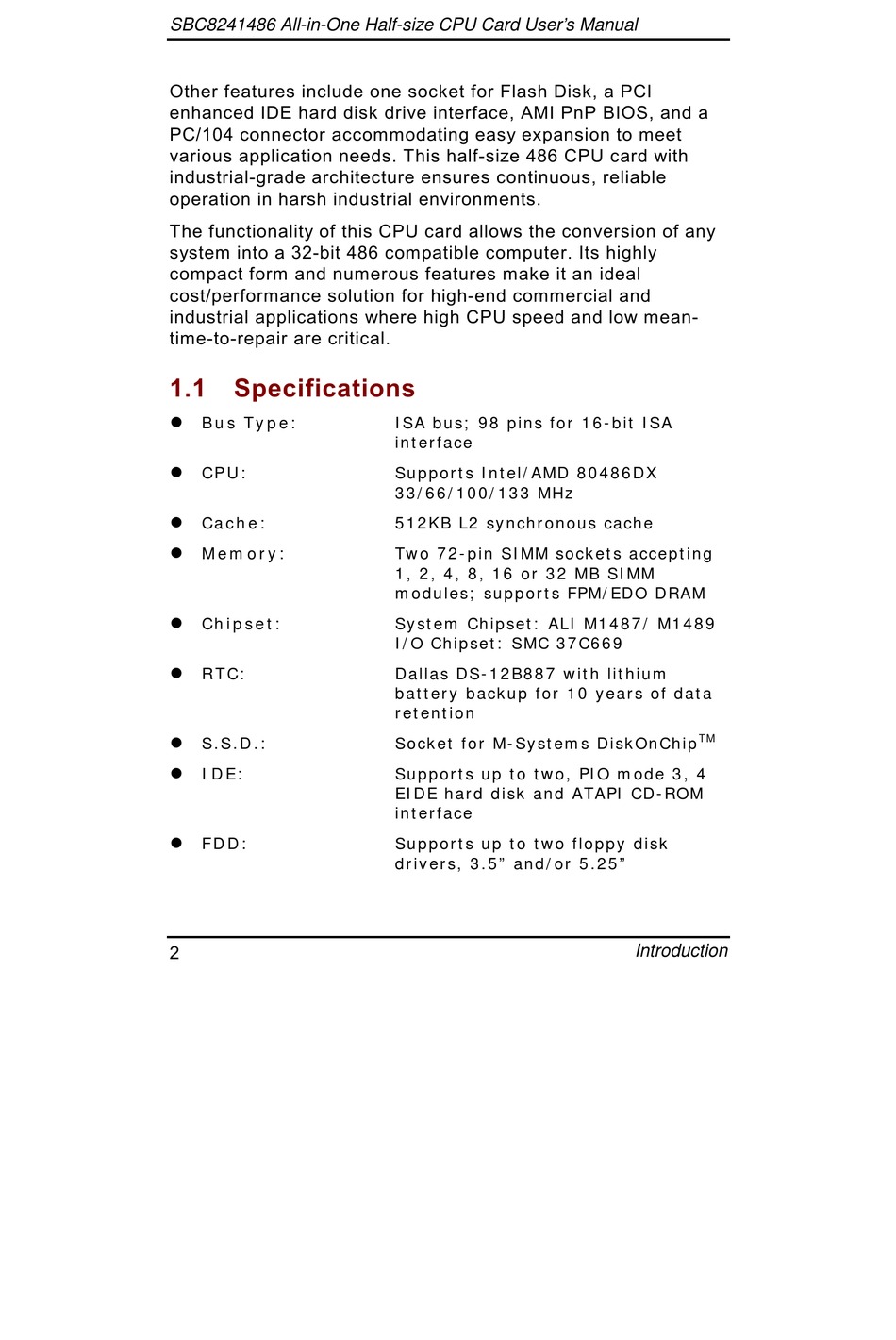

#" Bus Type:
#" CPU:
#" Cache:
Memory:
#"
#" Chipset:
#" RTC:
#" S.S.D.:
#" IDE:
FDD:
#"
(
ISA bus; 98 pins for 16-bit ISA
interface
Supports Intel/AMD 80486DX
33/66/100/133 MHz
512KB L2 synchronous cache
Two 72-pin SIMM sockets accepting
1, 2, 4, 8, 16 or 32 MB SIMM
modules; supports FPM/EDO DRAM
System Chipset: ALI M1487/ M1489
I/O Chipset: SMC 37C669
Dallas DS-12B887 with lithium
battery backup for 10 years of data
retention
Socket for M-Systems DiskOnChip
Supports up to two, PIO mode 3, 4
EIDE hard disk and ATAPI CD-ROM
interface
Supports up to two floppy disk
drivers, 3.5" and/or 5.25"
