Replacing a
Floppy Disk Drive
II 8-S E B /R
LOT XTENDED RIDGE
To replace the floppy disk drive in your Extended chassis, follow these steps:
1 Make sure the power switch is off (O is pressed down).
2 Remove the vertical front panel.

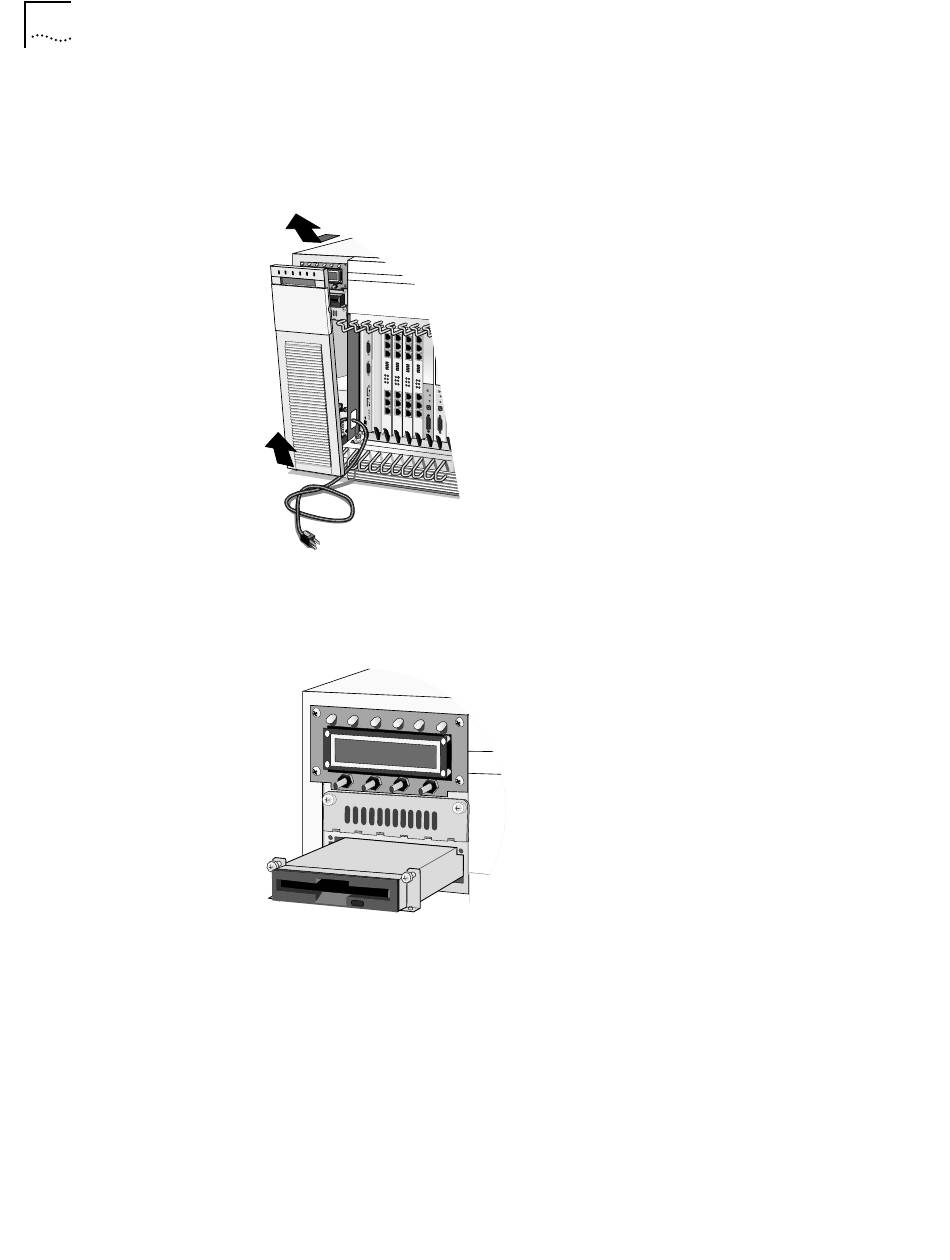

Figure 3-17 Removing the Front Panel from the Extended Chassis
3 Loosen the captive screws on the front of the disk drive mounting plate.
4 Pull the disk drive mounting bracket out of the chassis.
Figure 3-18 Removing the Disk Drive Mounting Bracket from the Extended Chassis
5 Remove the four screws on the bottom of the bracket that secure the floppy
disk drive to the bracket.
6 Install the new disk drive onto the bracket with the four screws.
7 Insert the bracket into the chassis and tighten the captive screws.
8 Turn on the system.
