Installing A Second Power Supply - 3Com NETBuilder II Installing Instruction

3-14 C 3: NETB
HAPTER UILDER
II 8-S E B /R
LOT XTENDED RIDGE OUTER
Spring-loaded
f
Insert new power supply
while disengaging plunger.

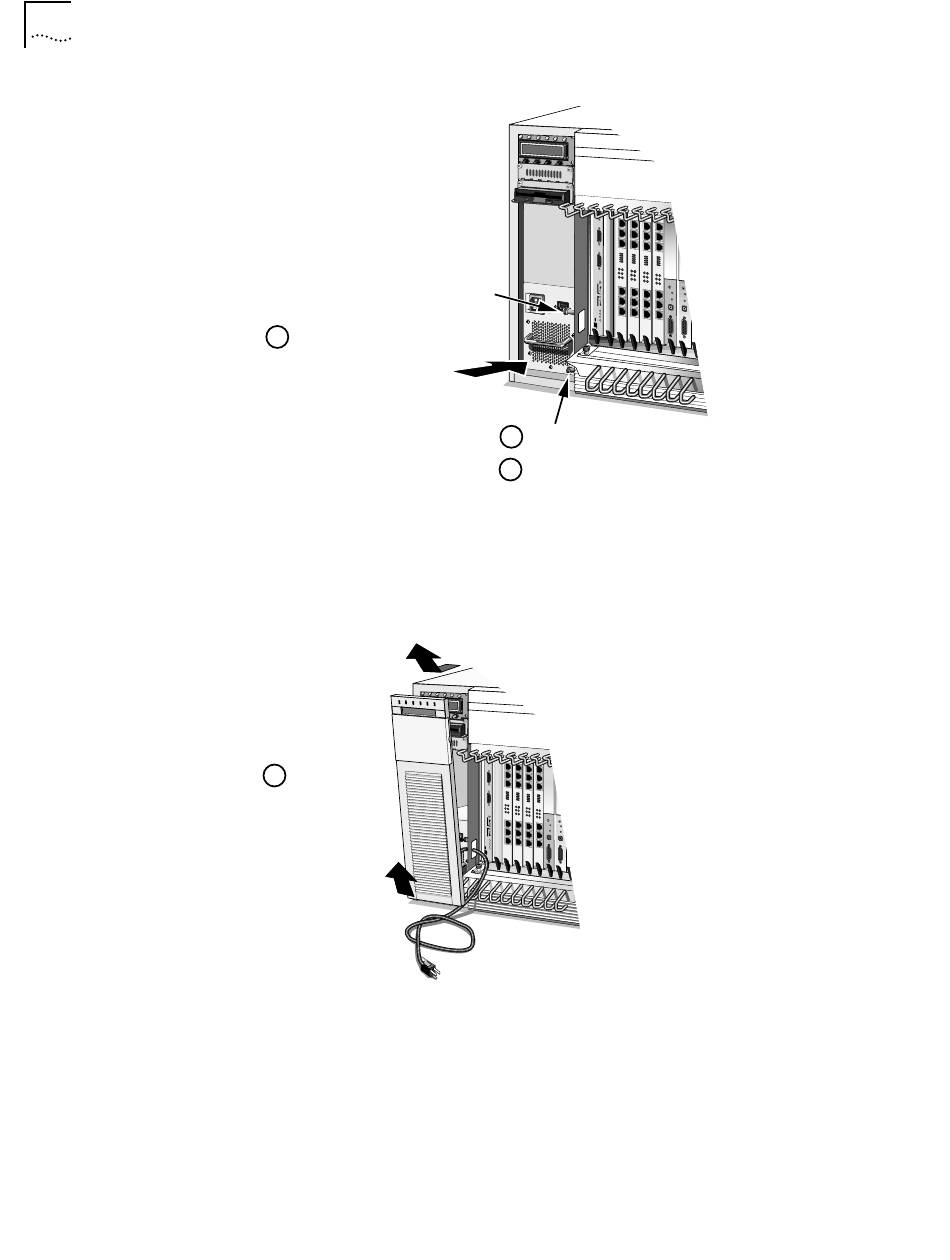

Figure 3-13 Inserting a New Power Supply in the Extended Chassis

Installing a Second Power Supply

To install a second power supply in the Extended chassis, follow the steps in
Figure 3-14, Figure 3-15, and Figure 3-16. It is not necessary to turn off the
power when installing a second power supply.
a
Remove front
panel.
Figure 3-14 Removing the Front Panel
plunger
g
Tighten captive screw.
h Reinstall power cord and front panel.
