When installing your Extended chassis on a tabletop, make sure there is

adequate space on the right side and back of the unit for ventilation.

Feet installed

(two front and two rear)

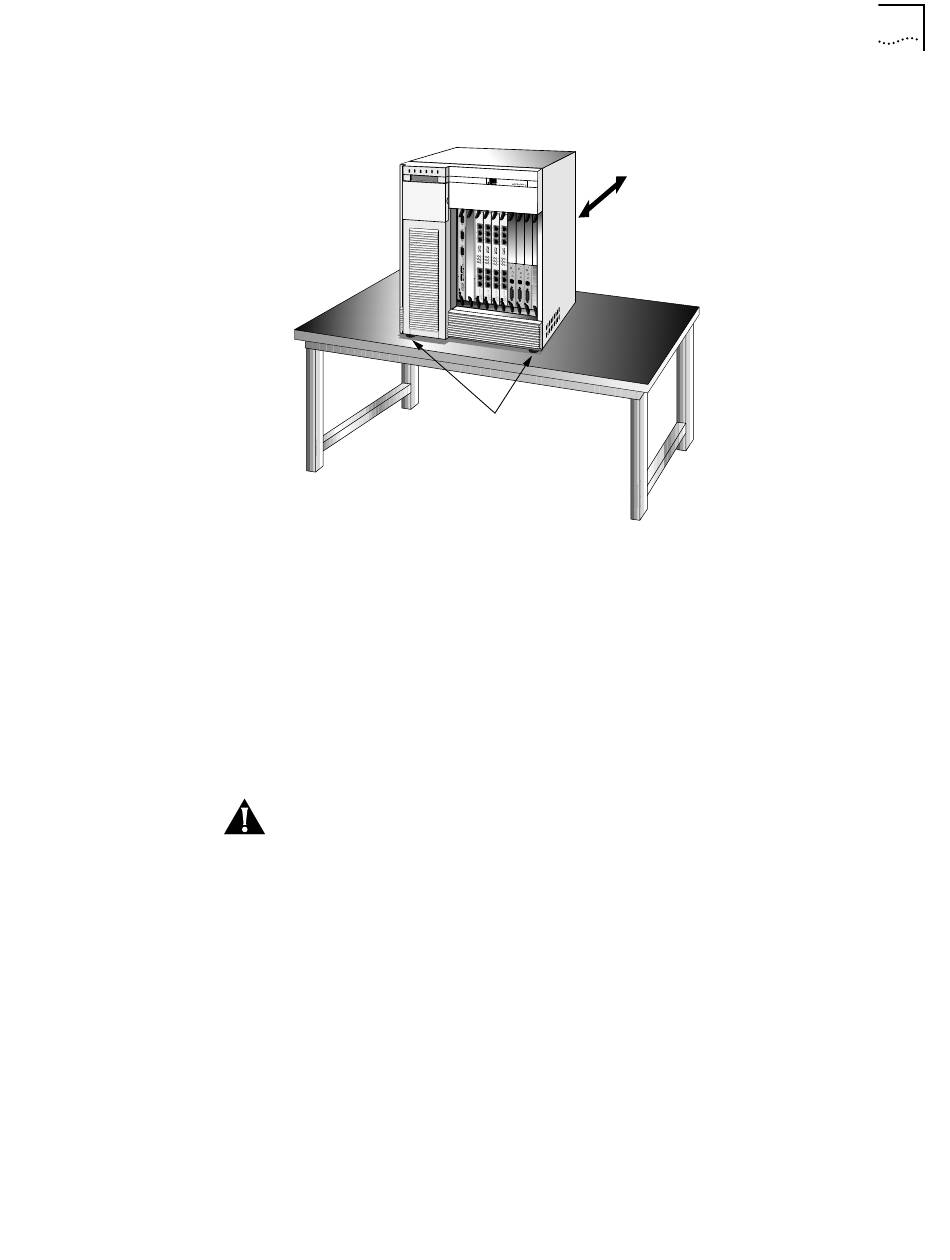

Figure 3-2 Installing an Extended Chassis on a Tabletop

Installing in a Rack

Your Extended chassis comes with a rack-mount kit which consists of two

brackets, 14 pan-head screws, and eight locking nuts. This kit allows you to

mount the chassis in a 19-inch, 2- or 4-pole rack. Make sure the kit contains all

of these parts. If a part is missing, contact your network supplier.

You will need a Phillips screwdriver to mount the chassis in the rack. Because of

the weight of the Extended chassis, you will need at least two people to

complete the procedure. The unit will be more secure if installed toward the

bottom of the rack.

Using fewer than four screws on each side of the Extended chassis to secure

the brackets to the rack may result in bracket failure and damage that will

invalidate the warranty.

Installing the Extended Chassis

Allow adequate space between

back of unit and wall for ventilation.

3-3
