3Com NETBuilder II Installing Instruction page 61

b Loosen retaining screws
on filler panel and
remove panel.
Filler panel
e
Sheet metal with
cut-out for power cord

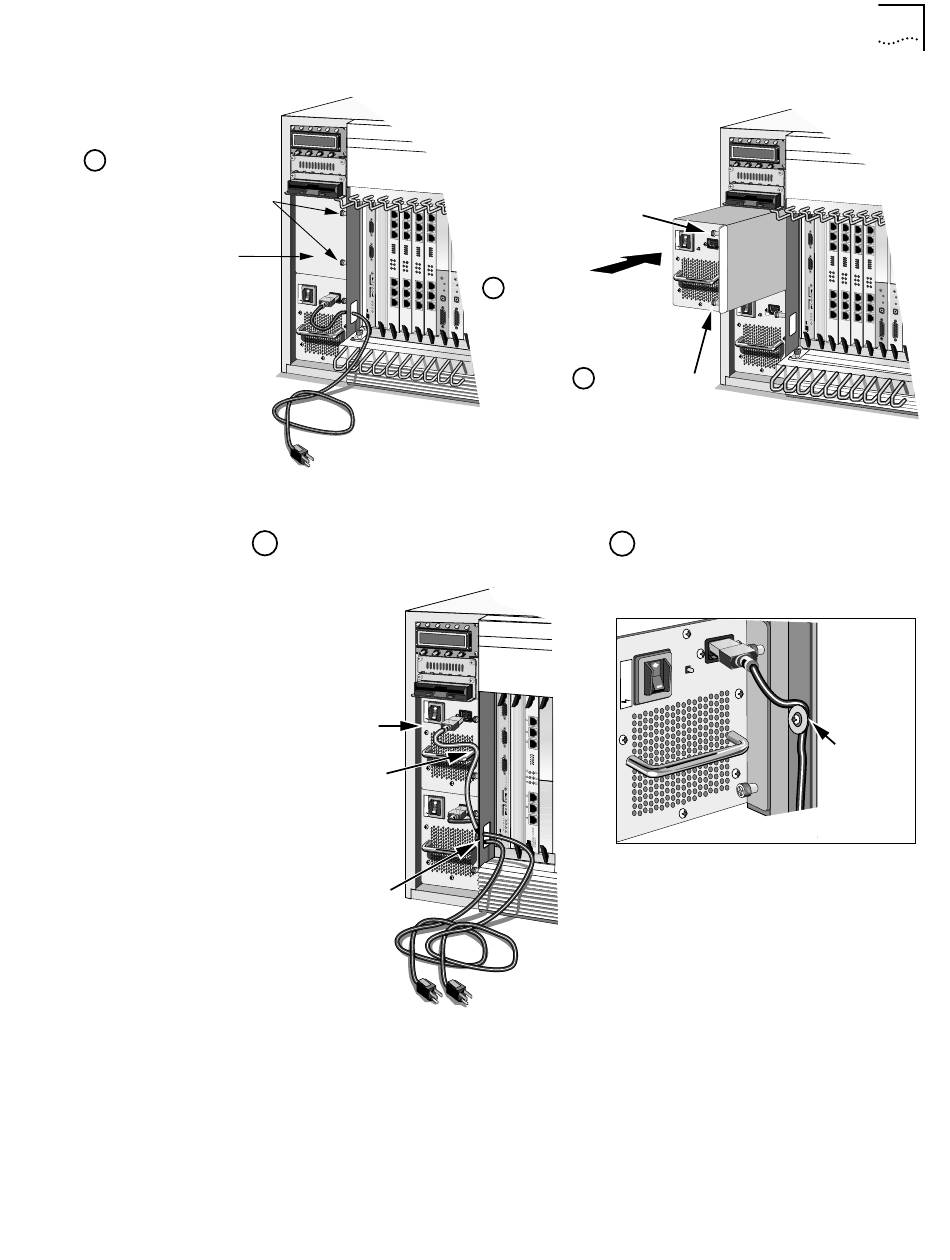

Figure 3-15 Installing a Second Power Supply in the Extended Chassis
Thread power cord through hole in
sheet metal as shown, and connect
to the power supply.
Power supply
Strain-relief
washer
(see detail)
Figure 3-16 Connecting the Power Cord to the Second Power Supply
Spring-loaded plunger
c Disengage plunger
and slide power supply
into chassis. Press firmly
to engage connectors.
d
Tighten captive
retaining screw.
Secure cord behind strain-relief washer.
f
Detail
Second power cord
Maintenance and Repair
Strain-relief
washer
3-15
