Grasp the top sides

of the panel and pull away from

chassis to release ball studs.

Before you can connect the power cord, you must remove the vertical front

panel. Figure 3-7 shows how to remove the panel and Figure 3-8 shows how to

install the power cord.

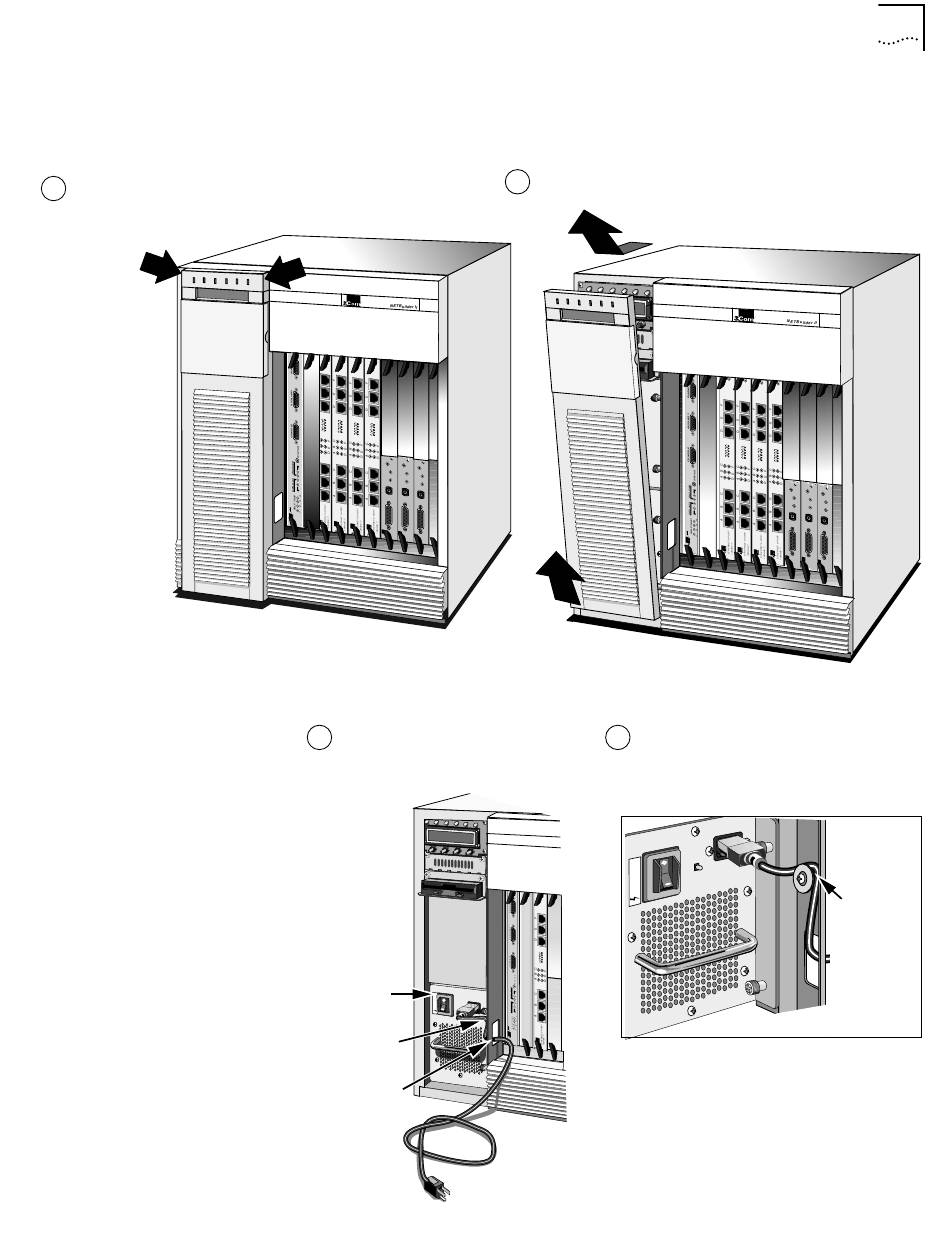

Figure 3-7 Removing the Front Panel from the Extended Chassis

Thread power cord through hole

in sheet metal as shown, and

connect to the power supply

Power supply

Strain-relief

washer

(see detail)

Sheet metal with

cut-out for power cord

Figure 3-8 Connecting a Power Cord to the Extended Chassis

Pull panel out and up to

release the tabs at the bottom.

Secure cord behind strain-relief washer.

Detail

Power cord

Installing the Extended Chassis

Strain-relief

washer

3-7
