1-6 C 1: NETB
HAPTER UILDER
Connecting
the Power Cord
Installing the Cable
Strain-Relief Bracket
Cable strain-relief bracket
II 4-S B /R
LOT RIDGE OUTER
3 Verify that the configurable parameters of your device match the configuration
settings of the CONSOLE port specified in Table 1-1.
Table 1-1 CONSOLE Port Configuration Settings
Characteristic
Baud rate
Databits
Parity
Stop bits
DTR
Duplex
Echo
Flow control
4 Turn on the PC, terminal, or modem.
A power cord is supplied with all NETBuilder II chassis. If the power cord does
not match your requirements, contact your network supplier for assistance.
The AC power switch is marked according to international I/O convention:
When you press the I side, the switch is on; when you press the O side, the
switch is off.
Make sure the power switch is turned off (O), and plug the power cord into the
AC power receptacle on the back of the chassis.
The cable strain-relief bracket is a wire-form metal bracket. This bracket is not
necessary for systems mounted on a tabletop, but it is recommended for
rack-mounted systems.
To install the cable strain-relief bracket on a 4-Slot chassis, follow these steps
(no tools are needed):
1 Secure the bracket to the rear of the system.
The ends of the bracket slide into four holes on the back of the chassis (see
Figure 1-6).
O I
1
2

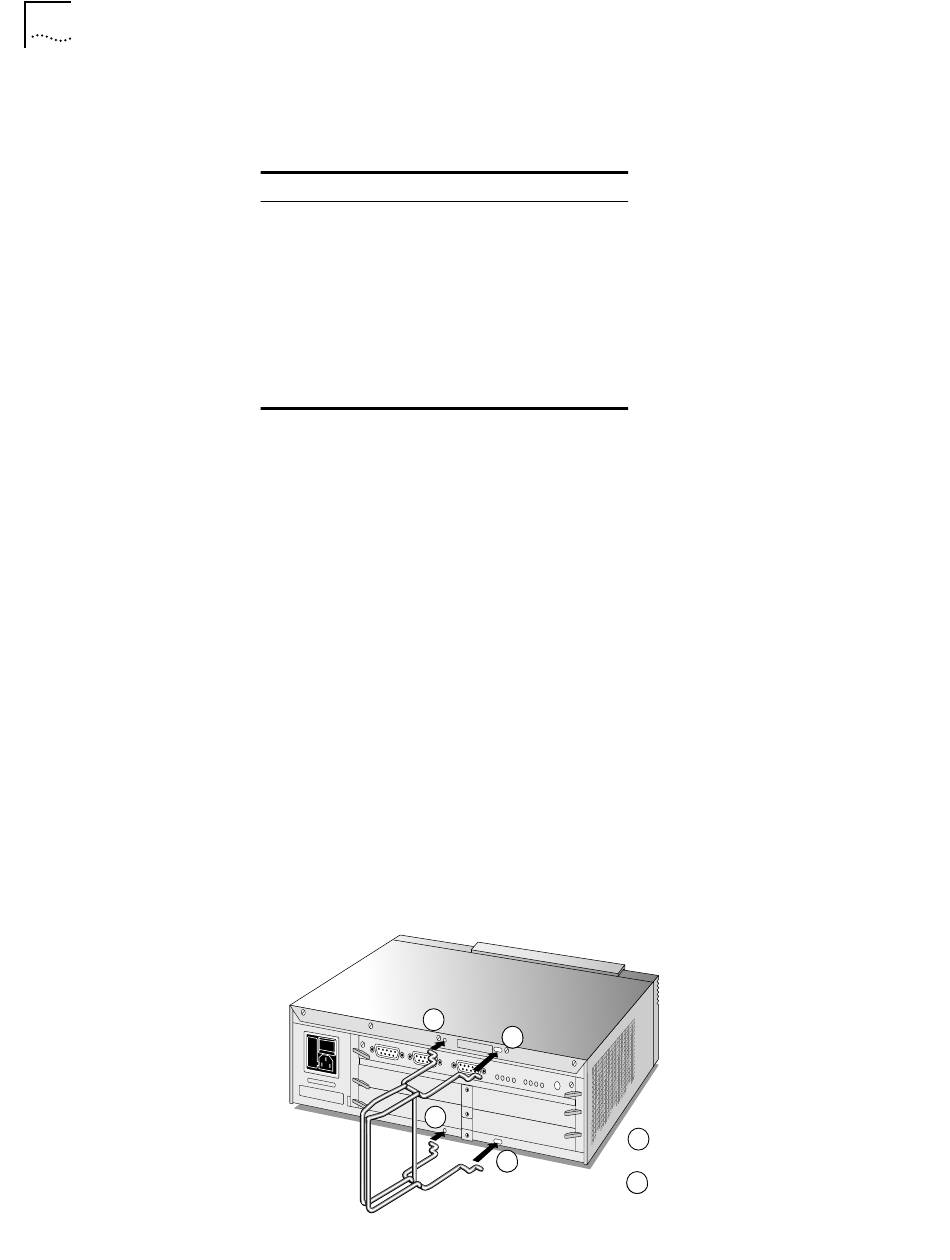

Figure 1-6 Installing the Cable Strain-Relief Bracket on the 4-Slot Chassis
Setting
9600
8
None
1
Ignored
Full
Off
X-on/X-off
a
b
a
4
3
b
a Insert ends of strain-relief bracket
into round holes on chassis.
b Squeeze bracket together until the
other ends fit into the elongated
holes on chassis.
