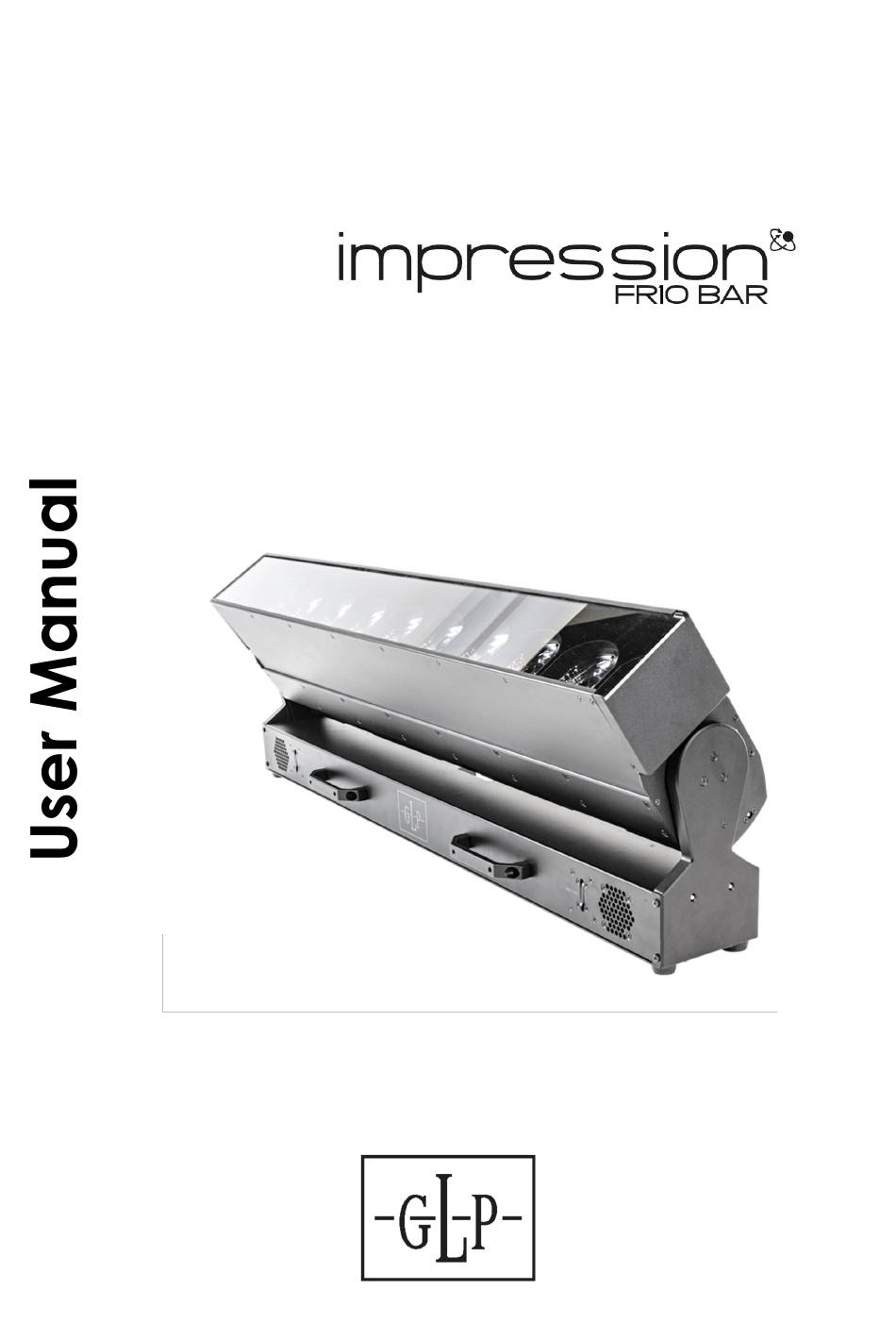

  • Page 1 Software version V. 20...
  • Page 2 This document covers fixture software version V. 20 © 2019 German Light Products GmbH. All rights reserved. The marks ‘GLP’ and ‘German Light Products’ are trademarks registered as the property of German Light Products GmbH in Germany, in the United States of America and in other countries.

  • Page 3: Table Of Contents

    Table of Contents Safety ......................4 Key to symbols ..................4 GLP Service and Support ..............5 FR 10 Bar overview ..................6 Features ....................... 7 Tilt ......................7 Intensity/Dimmer ................... 7 Shutter ....................7 Control/Settings channel ..............8 CTC ......................8 Virtual color wheel ................

  • Page 4: Safety

    If you have any doubts or questions about how to use the GLP® impression FR10 BAR lighting fixture safely, contact your GLP supplier for assistance. Your GLP supplier will be happy to help.

  • Page 5: Glp Service And Support

    GLP and affiliated companies will take no responsibility for damage or injury resulting from disregard for the information in the user documentation. Check the GLP website at www.glp.de and make sure that you have the latest • versions of the fixture’s Quick Start and Safety Manual and this user manual.

  • Page 6: 10 Bar Overview

    2. FR 10 Bar overview Figure 1. FR 10 Bar overview A – Head B – Pixel zoom lens C – Alignment pins button D – DMX IN (5-pin XLR) E – AC mains power IN (Neutrik powerCON TRUE1) F –...

  • Page 7: Features

    The FR10 Bar contains 10 x 60 Watt RGBW LED sources that are color matched with GLP’s X4 and FR series. Each source features smooth, full range color mixing with a homogenized Fresnel lens. Along with individual color control, the impression FR10 Bar offers a powerful multi-layer zoom and color effects engine.

  • Page 8: Control/Settings Channel

    Strobe Random flashes all the fixture’s pixels together at random intervals. This lets • you set up a random strobe across multiple fixtures. Note that the random effect between multiple fixtures really is completely random. Strobe flashes all the pixels of a fixture together. It will also flash all the pixels of •...

  • Page 9: Individual Cell Control

    German Light Products® Individual cell control Color and zoom of each of the FR 10 Bar’s cells can be controlled individually. Each cell has a new micro-Fresnel front lens that also gives great visual effects when the fixture is viewed from wider angles. Individual pixel control Each cell houses a 60 W RGBW OSRAM Ostar LED.

  • Page 10: Pattern Control

    Then, if you want to add effects in a layer, increase the value on the Master channel of the layer that you want to use. Each layer also has its own Shutter channel which lets you set that layer to Open and Blackout as well as selecting different pulse and strobe effects to run on that layer.

  • Page 11: Crossfading

    German Light Products® - If you set FX Length to DMX 100, the fixture will play back all the steps in the FX pattern and then add empty steps (black) at the end of the pattern until it reaches step 100. It will continue this action in a loop. FX Offset sets the starting point of the FX pattern.

  • Page 12: Transition

    Transition Transition determines how each pattern fades into the next pattern. Transition can be a snap, a soft crossfade, a fade passing through blackout/narrow or a fade passing through full intensity/wide. impression FR10 Bar User Manual Rev. A...

  • Page 13: Control Panel And Display

    German Light Products® 4. Control panel and display The FR10 has a backlit graphic display and four-button control panel. BACK DOWN ENTER Figure 2. Control panel and display Warning! DMX control is disabled when the control menus are active. Be prepared for the fixture to emit strong light as soon as you exit the control menus.

  • Page 14: Main Screen

    Main screen Press any button to activate the main screen. The main screen contains the following information: Top left: Firmware version – Tilt, Zoom and Pixel Mirror settings N (Normal) or I • (Inverted) – DMX Mode – Dimming curve Top right: PWM Frequency •...

  • Page 15: Error Code Display

    Pressing UP or DOWN three times displays an overview of all the main fixture information and settings. This can be useful while troubleshooting or communicating with GLP Service. Flip Display Orientation Pressing and releasing UP and DOWN together flips the display orientation.

  • Page 16: Main Menus

    Reset All Performs a full fixture reset to initialize all features and effects. Load Settings Lets you load one of the customized Setting Presets from PRESET 1 to PRESET 3. Loading the DEFAULT PRESET sets all fixture settings back to their default values. This does not affect data network configuration settings such as DMX start address, IP address etc.

  • Page 17: Fixture Settings

    German Light Products® sACN – The fixture uses the DMX control data received via sACN at its Ethernet port. • It is necessary to set up an Ethernet network. To configure the fixture to receive control data via sACN, you may need to set an IP Address, IP Subnet and sACN universe (see Ethernet Config below).
  • Page 18 Tilt disable Disables/enables Tilt movement. Disabling Tilt movement can be useful if the fixture is installed in a location where there is not enough space for tilt movement, for example. Three settings are available: OFF (the default setting) – Gives normal Tilt control.
  • Page 19 German Light Products® Pixel Mirror Inverts the order of pixels: OFF – In the normal, default setting, the first pixel is at the Power IN connector end • of the fixture and the last pixel is at the Power THRU connector end. ON –...
  • Page 20 OFF – The display automatically blacks out after a few seconds, even if the fixture is • not receiving a valid control signal and even if it has detected an error. Pressing any of the buttons on the control panel will reactivate the display.

  • Page 21: Manual Control

    German Light Products® Load Settings Using this setting allows the operator to load different customized fixture configurations and to set the fixture back to the Default Fixture Settings. (To save customized Setting Presets 1 to 3 see SERVICE  ADVANCED  SAVE SETTINGS) Note: The Load Fixture Presets and Load Fixture Defaults will only affect settings in the Fixture Settings and will not affect DMX Address, Control Mode, Protocol Type, IP Settings, etc.
  • Page 22 Service The Service menu contains test sequences that are useful during service and maintenance. It also contains an ADVANCED submenu which is for use by trained technicians only. Read the information below carefully before entering this level. Test Sequences Runs different test sequences to check fixture functionality.
  • Page 23 Important! Make sure that the RDM address is correct, especially after changing the mainboard. This is especially important for rental fixtures. If you have any questions, please contact your GLP Support. Feature Calibration Lets you calibrate the fixture’s effect and LEDs.

  • Page 24: Control Menu Layout

    5. Control menu layout Menus Notes DMX Start Address 001-512 Set fixture’s DMX address Protocol Setup Control via DMX protocol Control via Art-Net Protocol Type Art-Net protocol (default) sACN Control via sACN protocol Auto addressing in the Auto 2.X.X.X range 2.X.X.X...
  • Page 25 German Light Products® Normal pan, tilt and Normal effects movement Optimize pan, tilt and Fast effects movement for Performance speed Optimize pan, tilt and Smooth effects movement for smoothness 2200Hz 3000 Hz Select LED PWM 4800Hz Frequency frequency 9600Hz 25 kHz Display dims to zero after a short period of inactivity Auto...
  • Page 26 Manual Control Reset All Reset complete fixture Reset Tilt Reset tilt only Reset all LED and Zoom Reset Head functions Manually set a DMX value Intensity … Zoom FX Offset 000 … 255 on each channel Load No-Signal Scene...

  • Page 27: Shortcut Menu

    German Light Products® Shortcut menu To open the Shortcut menu, press the BACK button under the >> symbol bottom left of the main screen in the control panel. Normal Display Display orientation orientation Upside/down Reset all Confirm Reset entire fixture Load one of custom Preset 1 Confirm (hold for 3 seconds)

  • Page 28: Dmx Control Modes Overview

    6. DMX control modes overview The following four DMX control modes are available in the FR10 Bar. Mode 1 DMX Mode 1: Normal is the default Normal (default mode) DMX mode. It provides 16-bit control of tilt and dimming, shutter effects, a...
  • Page 29 German Light Products® Mode 2 DMX Mode 2: Multi-Layer provides 16-bit Multi-Layer control of tilt and dimming, shutter effects, a Control/Settings channel that Tilt lets you configure the fixture remotely via DMX, color temperature control, a virtual Intensity global color wheel (color presets) and RGBW Shutter global color mixing.
  • Page 30 Mode 3 DMX Mode 3: MultiPix (Multi-pixel) MultiPix provides 16-bit control of tilt and dimming, shutter effects, a Tilt Control/Settings channel that lets you configure the fixture remotely via DMX Intensity global and color temperature control. Shutter global Control/Settings...
  • Page 31 German Light Products® Mode 4 DMX Mode 4: MultiPix (Multi-pixel) MultiPix Advanced Advanced provides 16-bit control of tilt and dimming, shutter effects, a Tilt Control/Settings channel that lets you configure the fixture remotely via DMX, Intensity global color temperature control, a virtual color Shutter global wheel (color presets) and RGBW color Control/Settings...
  • Page 32 Pixel 07 Red Pixel 07 Green Pixel 07 Blue Pixel 07 White Pixel 08 Red Pixel 08 Green Pixel 08 Blue Pixel 08 White Pixel 09 Red Pixel 09 Green Pixel 09 Blue Pixel 09 White Pixel 10 Red...

  • Page 33: Dmx Control Channel Layout

    German Light Products® 7. DMX control channel layout In the following DMX channel layout tables: ● Default settings are indicated with bold type. ● Where commands are marked (3s hold) or (5s hold), you must send the DMX value continuously for 3 or 5 seconds to apply the command. Percentage equivalents are rounded up or down to the nearest 0.1% •...

  • Page 34: Dmx Mode 1: Normal (Default Dmx Mode)

    FR10 Bar www.glp.de DMX MODE 1 impression DMX Mode 1: Normal (default DMX mode) 25 DMX Channels Default Channel Command range Percent Fade Tilt coarse Tilt backwards > forwards (16-bit) 65535 32768 Fade Tilt fine Intensity coarse Global intensity 0-100% (16-bit)
  • Page 35 FR10 Bar German Light Products® DMX MODE 1 impression No function 57.6 60.8 Performance: Fast (3s hold) 61,2 62,0 Performance: Normal (3s hold) 62,4 63,1 Performance: Smooth (3s hold) 63.5 64.3 No function 64.7 74.9 PWM: 2200 Hz (5s hold) 75.3 76.1 PWM: 3000 Hz (5s hold)
  • Page 36 FR10 Bar www.glp.de DMX MODE 1 impression 5800 K 55.7 56.5 5700 K 56.9 57.6 5600 K 58.0 58.8 5500 K 59.2 60.0 5400 K 60.4 61.2 5300 K 61.6 62.4 5200 K 62.7 63.5 5100 K 63.9 64.7 5000 K 65.1...
  • Page 37 FR10 Bar German Light Products® DMX MODE 1 impression No effect Pattern 01 Pattern 02 Pattern 03 Pattern 04 10.2 Pattern 05 10.6 11.8 Pattern 06 12.2 13.3 Pattern 07 13.7 14.9 Pattern 08 15.3 16.5 Pattern 09 16.9 18.0 Pattern 10 18.4 19.6...
  • Page 38 FR10 Bar www.glp.de DMX MODE 1 impression Pattern static Step 01 Snap Pattern static Step 02 Snap Pattern static Step 03 Snap Pattern static Step 04 Snap Pattern static Step 05 11.4 Snap Pattern static Step 06 11.8 13.7 Snap Pattern static Step 07 14.1...
  • Page 39 FR10 Bar German Light Products® DMX MODE 1 impression No effect, all lenses have normal zoom functionality Pattern 01 Pattern 02 Pattern 03 Pattern 04 10.2 Pattern 05 10.6 11.8 Pattern 06 12.2 13.3 Pattern 07 13.7 14.9 Pattern 08 15.3 16.5 Pattern 09...
  • Page 40 FR10 Bar www.glp.de DMX MODE 1 impression Pattern static Step 01 Pattern static Step 02 Pattern static Step 03 Pattern static Step 04 Pattern static Step 05 11.4 Pattern static Step 06 11.8 13.7 Pattern static Step 07 14.1 16.1 Pattern static Step 08 16.5...

  • Page 41: Dmx Mode 2: Multi-Layer

    FR10 Bar German Light Products® DMX MODE 2 impression DMX Mode 2: Multi-Layer 51 DMX Channels Default Channel Command range Percent Fade Layer 1 (Base layer, low priority) Tilt coarse Tilt backwards > forwards (16-bit) 65535 32768 Fade Tilt fine Intensity coarse Global intensity 0-100% (16-bit)
  • Page 42 FR10 Bar www.glp.de DMX MODE 2 impression Pixel mirror: On (3s hold) 56.5 57.3 No function 57.6 60.8 Performance: Fast (3s hold) 61,2 62,0 Performance: Normal (3s hold) 62,4 63,1 Performance: Smooth (3s hold) 63.5 64.3 No function 64.7 74.9 PWM: 2200 Hz (5s hold) 75.3...
  • Page 43 FR10 Bar German Light Products® DMX MODE 2 impression 5900 K 54.5 55.3 5800 K 55.7 56.5 5700 K 56.9 57.6 5600 K 58.0 58.8 5500 K 59.2 60.0 5400 K 60.4 61.2 5300 K 61.6 62.4 5200 K 62.7 63.5 5100 K 63.9...
  • Page 44 FR10 Bar www.glp.de DMX MODE 2 impression No effect Pattern 01 Pattern 02 Pattern 03 Pattern 04 10.2 Pattern 05 10.6 11.8 Pattern 06 12.2 13.3 Pattern 07 13.7 14.9 Pattern 08 15.3 16.5 Pattern 09 16.9 18.0 Pattern 10 18.4...
  • Page 45 FR10 Bar German Light Products® DMX MODE 2 impression Pattern static Step 01 Snap Pattern static Step 02 Snap Pattern static Step 03 Snap Pattern static Step 04 Snap Pattern static Step 05 11.4 Snap Pattern static Step 06 11.8 13.7 Snap Pattern static Step 07...
  • Page 46 FR10 Bar www.glp.de DMX MODE 2 impression No effect, all lenses have normal zoom functionality Pattern 01 Pattern 02 Pattern 03 Pattern 04 10.2 Pattern 05 10.6 11.8 Pattern 06 12.2 13.3 Pattern 07 13.7 14.9 Pattern 08 15.3 16.5 Pattern 09 16.9...
  • Page 47 FR10 Bar German Light Products® DMX MODE 2 impression Pattern static Step 01 Pattern static Step 02 Pattern static Step 03 Pattern static Step 04 Pattern static Step 05 11.4 Pattern static Step 06 11.8 13.7 Pattern static Step 07 14.1 16.1 Pattern static Step 08...
  • Page 48 FR10 Bar www.glp.de DMX MODE 2 impression Layer 2 Red Fade Red intensity 0-100% Layer 2 Green Fade Green intensity 0-100% Layer 2 Blue Fade Blue intensity 0-100% Layer 2 White Fade White intensity 0-100% No effect Pattern 01 Pattern 02...
  • Page 49 FR10 Bar German Light Products® DMX MODE 2 impression Pattern static Step 01 Snap Pattern static Step 02 Snap Pattern static Step 03 Snap Pattern static Step 04 Snap Pattern static Step 05 11.4 Snap Pattern static Step 06 11.8 13.7 Snap Pattern static Step 07...
  • Page 50 FR10 Bar www.glp.de DMX MODE 2 impression Snap Shutter closed Dimmer flash (at intensity change) Snap Pulse slow > fast 15.3 Fade Opening pulse slow > fast 15.7 27.1 Fade Closing pulse slow > fast 27.5 38.8 Fade Layer 3 shutter Double flash slow >...
  • Page 51 FR10 Bar German Light Products® DMX MODE 2 impression Pattern 45 73.3 74.5 Pattern 46 74.9 76.1 Pattern 47 76.5 77.6 Pattern 48 78.0 79.2 Pattern 49 79.6 80.8 Pattern 50 81.2 82.4 No pattern – no function 82.7 96.5 Random pixel FX pattern 96.5 98.0...

  • Page 52: Dmx Mode 3: Multipix Normal

    FR10 Bar www.glp.de DMX MODE 3 impression DMX Mode 3: MultiPix Normal 57 DMX Channels Default Channel Command range Percent Fade Tilt coarse Tilt backwards > forwards (16-bit) 65535 32768 Fade Tilt fine Intensity coarse Global intensity 0-100% (16-bit) 65535...
  • Page 53 FR10 Bar German Light Products® DMX MODE 3 impression No function 57.6 60.8 Performance: Fast (3s hold) 61,2 62,0 Performance: Normal (3s hold) 62,4 63,1 Performance: Smooth (3s hold) 63.5 64.3 No function 64.7 74.9 PWM: 2200 Hz (5s hold) 75.3 76.1 PWM: 3000 Hz (5s hold)
  • Page 54 FR10 Bar www.glp.de DMX MODE 3 impression 5900 K 54.5 55.3 5800 K 55.7 56.5 5700 K 56.9 57.6 5600 K 58.0 58.8 5500 K 59.2 60.0 5400 K 60.4 61.2 5300 K 61.6 62.4 5200 K 62.7 63.5 5100 K 63.9...
  • Page 55 FR10 Bar German Light Products® DMX MODE 3 impression Pixel 05 Red Pixel 05 red intensity 0-100% Fade Pixel 05 Green Pixel 05 green intensity 0-100% Fade Pixel 05 Blue Fade Pixel 05 blue intensity 0-100% Pixel 05 White Fade Pixel 05 white intensity 0-100% Pixel 05 Zoom Pixel 05 zoom wide >...

  • Page 56: Dmx Mode 4: Multipix Advanced

    FR10 Bar www.glp.de DMX MODE 4 impression DMX Mode 4: MultiPix Advanced 79 DMX Channels Default Channel Command range Percent Fade Layer 1 (Base layer, low priority) Tilt coarse Tilt backwards > forwards (16-bit) 65535 32768 Fade Tilt fine Intensity...
  • Page 57 German Light Products® DMX MODE 4 impression FR10 Bar Pixel mirror: On (3s hold) 56.5 57.3 No function 57.6 60.8 Performance: Fast (3s hold) 61,2 62,0 Performance: Normal (3s hold) 62,4 63,1 Performance: Smooth (3s hold) 63.5 64.3 No function 64.7 74.9 PWM: 2200 Hz (5s hold)
  • Page 58 FR10 Bar www.glp.de DMX MODE 4 impression 5800 K 55.7 56.5 5700 K 56.9 57.6 5600 K 58.0 58.8 5500 K 59.2 60.0 5400 K 60.4 61.2 5300 K 61.6 62.4 5200 K 62.7 63.5 5100 K 63.9 64.7 5000 K 65.1...
  • Page 59 German Light Products® DMX MODE 4 impression FR10 Bar No effect Pattern 01 Pattern 02 Pattern 03 Pattern 04 10.2 Pattern 05 10.6 11.8 Pattern 06 12.2 13.3 Pattern 07 13.7 14.9 Pattern 08 15.3 16.5 Pattern 09 16.9 18.0 Pattern 10 18.4 19.6...
  • Page 60 FR10 Bar www.glp.de DMX MODE 4 impression Pattern static Step 01 Snap Pattern static Step 02 Snap Pattern static Step 03 Snap Pattern static Step 04 Snap Pattern static Step 05 11.4 Snap Pattern static Step 06 11.8 13.7 Snap Pattern static Step 07 14.1...
  • Page 61 German Light Products® DMX MODE 4 impression FR10 Bar No effect, all lenses have normal zoom functionality Pattern 01 Pattern 02 Pattern 03 Pattern 04 10.2 Pattern 05 10.6 11.8 Pattern 06 12.2 13.3 Pattern 07 13.7 14.9 Pattern 08 15.3 16.5 Pattern 09...
  • Page 62 FR10 Bar www.glp.de DMX MODE 4 impression Pattern static Step 01 Pattern static Step 02 Pattern static Step 03 Pattern static Step 04 Pattern static Step 05 11.4 Pattern static Step 06 11.8 13.7 Pattern static Step 07 14.1 16.1 Pattern static Step 08 16.5...
  • Page 63 German Light Products® DMX MODE 4 impression FR10 Bar Layer 2 (individual pixel intensity layer, high priority) Layer 2 master coarse Layer 2 (pixel intensity) master 65535 32768 Fade 0-100% (16-bit) Layer 2 master fine Snap Shutter closed Dimmer flash (at intensity change) Snap Pulse slow >...
  • Page 64 FR10 Bar www.glp.de DMX MODE 4 impression Layer 3 (individual pixel zoom layer, high priority) Pixel zoom Layer 3 (pixel zoom) master 0-100% Fade master Pixel 01 Zoom Fade Pixel 01 zoom wide > narrow Pixel 02 Zoom Fade Pixel 02 zoom wide > narrow...
