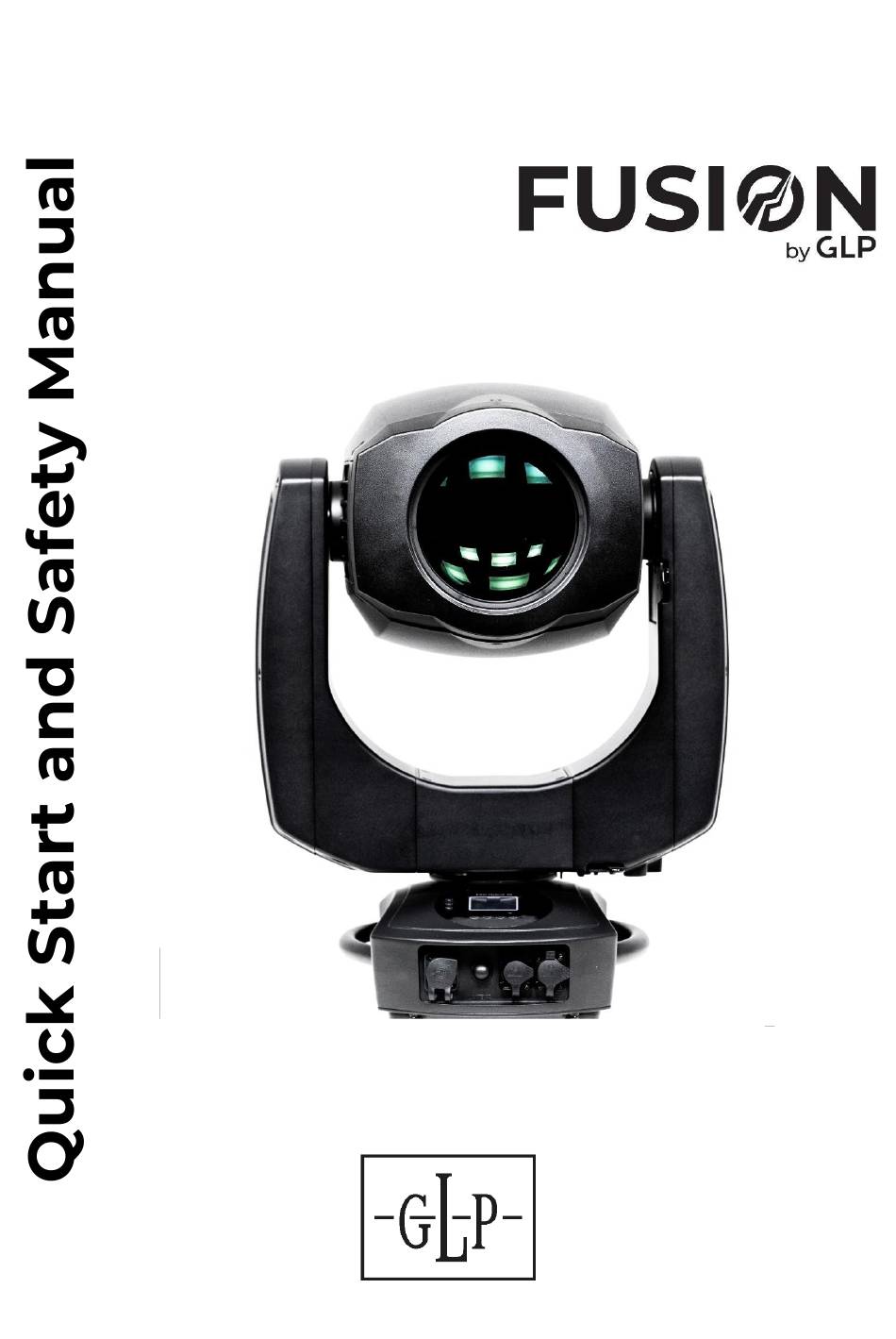

  • Page 1 Exo Hybrid 40 Software v.0.2.2 Rev. 20241022-02...
  • Page 2: Document Revisions

    GLP® Fusion Exo Hybrid 40 Quick Start and Safety Manual © 2024 German Light Products GmbH. All rights reserved. The marks ‘GLP’ and ‘German Light Products’ are trademarks registered as the property of German Light Products GmbH in Germany, in the United States of America and in other countries.
  • Page 3: Table Of Contents

    Storage ......................... 13 Suitable environment ................. 13 Temperature fluctuation ................13 Connectors and cables ................13 4. Fusion Exo Hybrid 40 overview ..............15 5. Features ........................16 User Manual ...................... 16 Pan and Tilt lock ..................... 16 6. Installation ....................... 17 Mounting options ..................
  • Page 4 11. Technical specifications ................. 26 12. Dimensions ......................29...
  • Page 5: Safety

    If you have any doubts or questions about how to use the fixture safely, contact your GLP® supplier for assistance. Your GLP supplier will be happy to help. The user documentation for The Fusion Exo Hybrid 40 lighting fixture consists of: • The Quick Start and Safety Manual, supplied with fixtures and available for download from www.glp.de.
  • Page 6 The Fusion Exo Hybrid 40 is intended for use by experienced professionals with the knowledge and skills to set up, operate, and maintain high-powered, remotely controlled lighting equipment safely and efficiently. These operations require expertise that may not be provided in this Manual or in the User Manual.
  • Page 7: Electrical Safety

    16 A-rated, 3 x 1.5 mm H07RN-F type cable. Do not connect more than two (2) Fusion Exo Hybrid 40 fixtures linked together in a chain to power at 100-120 V, 60 Hz. Rev. 20241022-02...
  • Page 8: Fire Safety And Protection From Burns

    Eye safety • The Fusion Exo Hybrid 40 is classified as a Risk Group 2 lighting fixture according to EN 62471 at a distance of 1 m (3.3 ft.). Possibly hazardous radiation emitted. Do not stare into the light output from the fixture.
  • Page 9: Strobe Safety

    • Make sure that persons near to or working on the fixture are not looking directly into the light output when the fixture lights up suddenly. This can happen when power is applied, when the fixture receives a DMX signal, or when certain control menu items are selected.
  • Page 10: Waste Disposal

    The separate collection and recycling of batteries and rechargeable batteries makes an important contribution to relieving the impact on the environment and avoiding health risks. Fusion Exo Hybrid 40 Quick-Start and Safety Manual...
  • Page 11: Avoiding Damage To The Fixture

    2. Avoiding damage to the fixture Important! Follow the directions in this section carefully, or the fixture may suffer damage that is not covered by the product warranty. General precautions • Do not drop the fixture or expose it to mechanical stress.
  • Page 12: Avoiding Damage From Dust And Airborne Particles

    Release the fixture’s pan and tilt locks before putting the fixture in its flightcase or other protective container for transportation. Before closing the flightcase, check that the protective liner in the flightcase will hold the head and protect it from shocks. Fusion Exo Hybrid 40 Quick-Start and Safety Manual...
  • Page 13: Outdoor Usage

    GLP website www.glp.de. The IP rating system Fusion Exo Hybrid 40 fixtures are rated IP65. The first figure 6 gives the level of protection against dust and airborne particles. The second figure 5 gives the level of protection against water and humidity.
  • Page 14 Make sure that all connections are properly plugged and that protective caps are in place on unused connectors. Use dielectric grease if necessary to ensure sealing. Arrange cables with a drip loop to prevent water from flowing down cables into connectors. Fusion Exo Hybrid 40 Quick-Start and Safety Manual...
  • Page 15: Fusion Exo Hybrid 40 Overview

    4. Fusion Exo Hybrid 40 overview Figure 2. Fusion Exo Hybrid 40 overview A - Head B – Tilt Lock C - Pan Lock D - Control panel with backlit display and NFC sensor E - AC mains power IN (powerCON TRUE1 TOP)
  • Page 16: Features

    5. Features The Fusion Exo Hybrid 40 from GLP can be used temporarily in outdoor locations for entertainment purposes and in dry locations in permanent and temporary installations. Fixtures can be placed on or fastened to a level surface, or they can be suspended from a suitable structure as directed in this manual.
  • Page 17: Installation

    Mounting options A Fusion Exo Hybrid 40 fixture may be installed in one of the following ways: Standing horizontally on a horizontal surface. Fastened to a rigging truss or similar structure at any angle using the supplied brackets and two or more rigging clamps (optional accessories).
  • Page 18: Standing The Fixture On A Horizontal Surface

    Installing on a rigging truss or similar structure You can suspend a Fusion Exo Hybrid 40 fixture from a rigging truss or pipe using the two omega brackets supplied with the fixture and rigging clamps that are available from GLP as optional accessories.
  • Page 19 Fasten the two brackets A to the bottom of the base using two quarter-turn fasteners C per bracket. Turn each fastener a full 90° to lock it. The brackets may be fixed either side to side or front to back.
  • Page 20: Ac Mains Power

    Cables used for power input and for relaying power to other fixtures must meet the requirements listed under ‘Electrical safety’ on page 7. Power input cable The Fusion Exo Hybrid 40 is supplied with a power cord (power cable) with a powerCON TRUE1 TOP connector for AC mains power input. Connecting to power The AC mains power supply must include a connection to ground / protective earth.
  • Page 21: Connecting Multiple Fixtures To Power In A Chain

    Warning! Do not connect more than two (2) Fusion Exo Hybrid 40 fixtures in total to power in one chain at 100-120 V, 60 Hz. Do not connect more than four (4) Fusion Exo Hybrid 40 fixtures in total to power in one chain at 200-240 V, 50 Hz.
  • Page 22: Connecting To Control System

    11). DMX512 control The Fusion Exo Hybrid 40 supports the USITT DMX 512A control data signal protocol. Two 5-pin XLR connectors are provided for IN and THRU connections on a DMX data link using standard DMX protocol. Connectors use standard DMX pinout: •...
  • Page 23: Starting And Stopping Operation

    9. Starting and stopping operation Warning! Before you apply power to the Fusion Exo Hybrid 40 or operate it after a blackout, make sure that nobody is looking directly into the front of the fixture and that there is sufficient clearance for the head to move safely.
  • Page 24: Service

    Cleaning Fusion Exo Hybrid 40 fixtures require occasional cleaning to prevent the buildup of dust, dirt, and residue from atmospheric effects. Failure to keep the fixture clean will significantly reduce light output and may cause heat buildup and damage that is not covered by the product warranty.
  • Page 25 • GLP Asia: +852 (3151) 7730 • GLP Nordic: +46 737 57 11 40 Rev. 20241022-02...
  • Page 26: Technical Specifications

    Protocol: DMX (USITT DMX512-A) RDM (ANSI/ESTA E1.20) Art-Net sACN CRMX (Lumenradio) GLP iQ.Mesh Setting and addressing: control panel with backlit graphic display 4 Button Menu Navigation High-Res Channels: Dimming Tilt Gobo index/rotation Fusion Exo Hybrid 40 Quick-Start and Safety Manual...
  • Page 27: Electrical Specifications

    Dimming Curves: linear soft S-Curve Fan Modes: regulated high medium Others: Stand Alone 1 captured Scene Connectors Signal connection: XLR 5-Pin etherCON In/Out Power input: powerCON TRUE1 In/Out Electrical Specifications Power input: 100 – 240 VAC / 50 – 60Hz Power supply: auto-ranging electronic switch-mode max.
  • Page 28: Dimensions And Weight

    Height: 680 mm / 26.77 in Height (head vertical): 569 mm / 22.4 in Width (across yoke): 429 mm / 16.88 in Length: 314 mm / 12.36 in Weight: 25 kg / 55.11 lbs Fusion Exo Hybrid 40 Quick-Start and Safety Manual...
  • Page 29 12. Dimensions Fusion Exo Hybrid 40 All dimensions are in millimeters Rev. 20241022-02...
