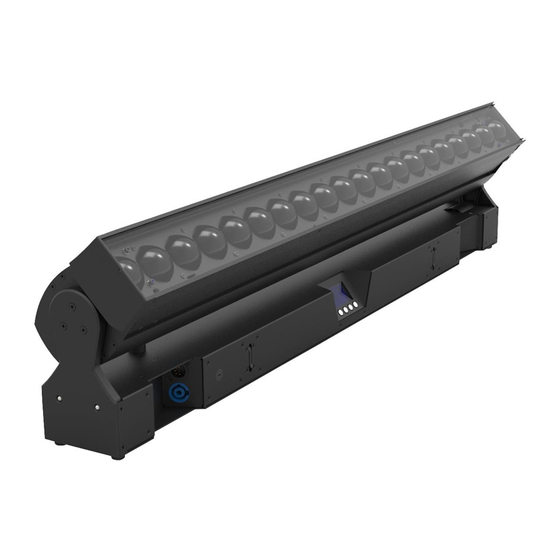

GLP Impression X4 BAR 20 Instruction Manual
Hide thumbs
Also See for Impression X4 BAR 20:
- Instruction manual (19 pages) ,
- Programming notes (9 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GLP Impression X4 BAR 20
Summary of Contents for GLP Impression X4 BAR 20

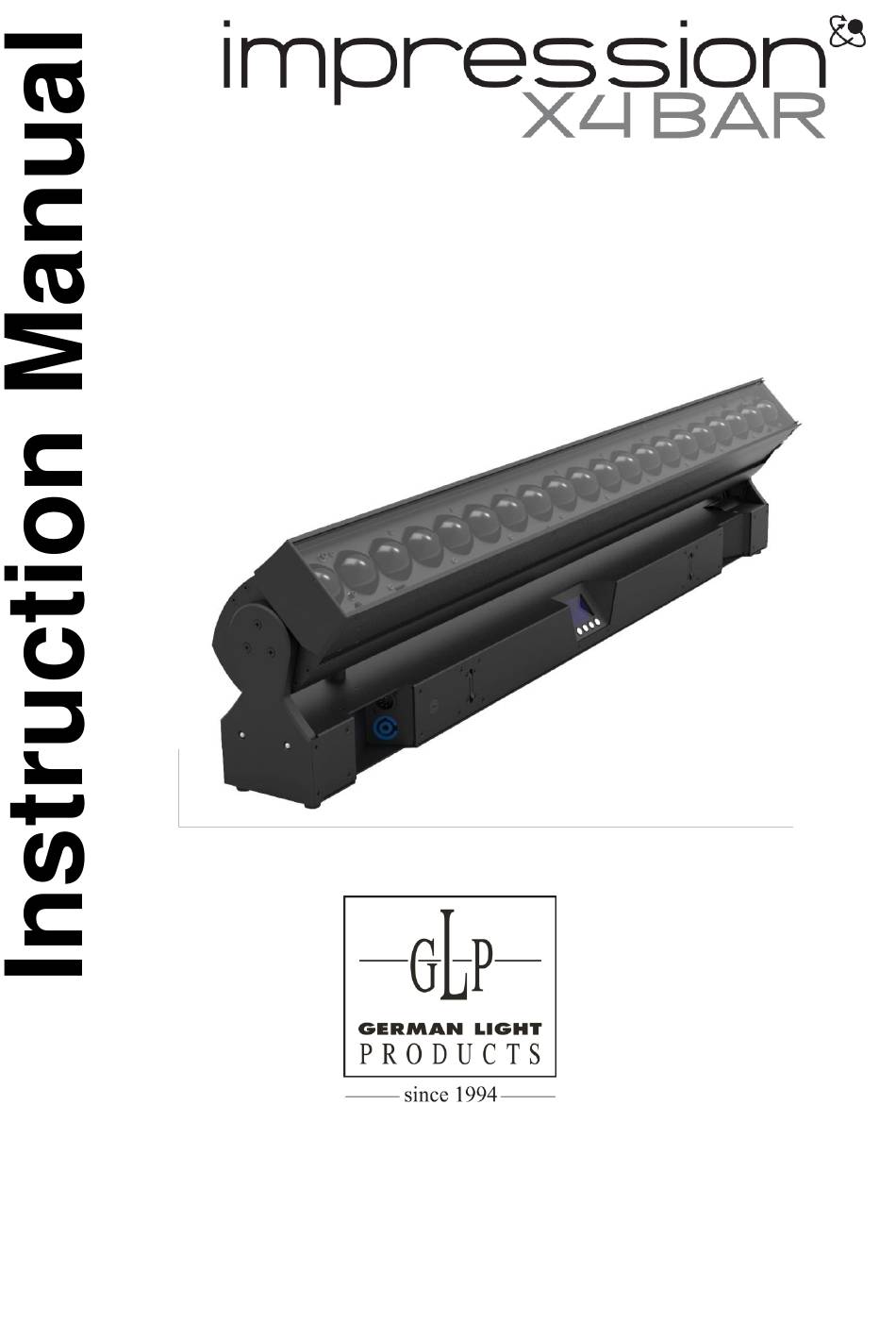

- Page 1 www.glp.de...
-
Page 2: Table Of Contents
Optional diffuser filter: ......................24 End Omega Bracket: ......................25 Maintaining and Cleaning ......................26 Safety precautions ......................... 26 Maintenance and Cleaning Interval (rule-of-thumb) ............26 Technical Specifications ......................... 27 Dimensions ..........................28 impression X4 BAR 20 manual (v1.8) from software version: v0.60... -
Page 3: Description Of Device
4. Micro-fuse 5x20mm, T5A 5. LCD Display / Menu (data entry) 6. Mains Output (white powerCON) 7. DMX Output (5 pin) 8. Base with rubber feet and Camlock mounting system impression X4 BAR 20 manual (v1.8) from software version: v0.60... -
Page 4: Safety Instructions
You need to pay attention to the common rules of technology that are not explicitly mentioned in this manual. 8. Use only original GLP spare parts. Any structural modification of the system will terminate all warranty claims. - Page 5 GLP German Light Products GmbH Important Safety Information The IMPRESSION X4 Bar 20 fixture from GLP is fitted with a number of plano-convex lenses in a highly efficient collimator cluster. This type of lens can act as a strong magnifying glass.
-
Page 6: Mounting
GLP German Light Products GmbH 3 Mounting The IMPRESSION X4 Bar 20 is fully operational whether it hangs or is mounted to the wall. It can also be operated while standing on the floor. Keep a safety distance of min. 0.5 m towards any easily inflammable materials (decoration etc.). -
Page 7: Operating On The Floor (Upright)
3.1.2 Mounting in hanging or sideways position To operate the IMPRESSION X4 Bar 20 in a hanging position please use the two (2) dedicated brackets supplied with your fixture. They are fixed to the base of the fixture with fasteners called Camlock quick-release connectors. -
Page 8: Connections
Disconnect from the mains supply for changing the fuse and use only the above described micro-fuse type. NEUTRIK® powerCON The IMPRESSION X4 Bar 20 is fitted with NEUTRIK® powerCON locking 3 conductor AC connectors. The grey connector must be used to draw... -
Page 9: The Menu Field
Reset counter Fixture hours Lifetime counter Adjust Key Code Internal adjustments for trained personnel only Set DMX Mode NORM Set DMX mode to Normal SPIX Set DMX mode to Single Pixel impression X4 BAR 20 manual (v1.8) from software version: v0.60... - Page 10 On / Off Enable / disable Display orientation Reset RESET and new calibration for all functions or further information please contact your local GLP dealer or Requires Tilt Firmware V.20 or later GLP support center. impression X4 BAR 20 manual (v1.8)
-
Page 11: Programing Notes
6. Choose Set 1 Pattern Select (28) and take to value 8. This pattern reveals Set Layer 2 on Pixels 6-20. Pixels 1-5 should be red and pixels 6-20 should be blacked out: 7. Choose Set 2 Green (16) and take to value 255. impression X4 BAR 20 manual (v1.8) from software version: v0.60... - Page 12 14. Choose Crossfade (26) to affect the fading from color to color within the Set Layers. 15. Choose Star Effect (27) to strobe each individual pixel randomly. impression X4 BAR 20 manual (v1.8) from software version: v0.60...
-
Page 13: Dmx Chanel Selection (Dmx Protocol)
Pixels are numbered 1-20 from left to right as shown below. Note: The head is tipped forward (DMX value = 0), the display is in front, and the input sockets are on the left. impression X4 BAR 20 manual (v1.8) from software version: v0.60... -
Page 14: Normal Mode (Norm) 34 Dmx Channels
0..255 Pattern Select 0..255 Set 2 Pattern Movement 0..255 32 Pixel Select 1 - 8 0..255 33 Pixel Select 9 - 16 0..255 34 Pixel Select 17 - 20 0..255 impression X4 BAR 20 manual (v1.8) from software version: v0.60... -
Page 15: Compressed Mode (Comp) 20 Dmx Channels
Wide (flood) - narrow (spot) 50° - 7° 0..255 17 Set 1 Pattern 0..255 18 Pixel Select 1- 8 0..255 19 Pixel Select 9 - 16 0..255 20 Pixel Select 17 -20 0..255 impression X4 BAR 20 manual (v1.8) from software version: v0.60... -
Page 16: High Resolution Mode (Hires) 35 Dmx Channels
0..255 Pattern Select 0..255 Set 2 Pattern Movement 0..255 33 Pixel Select 1 - 8 0..255 34 Pixel Select 9 - 16 0..255 35 Pixel Select 17 - 20 0..255 impression X4 BAR 20 manual (v1.8) from software version: v0.60... -
Page 17: Single Pixel Mode (Spix) 88 Dmx Channels
Color mixing system - Green 0 - 100% 0..255 Pixel 11 Blue Color mixing system - Blue 0 - 100% 0..255 White Color mixing system - White 0 - 100% 0..255 impression X4 BAR 20 manual (v1.8) from software version: v0.60... - Page 18 Color mixing system - Green 0 - 100% 0..255 Pixel 20 Blue Color mixing system - Blue 0 - 100% 0..255 White Color mixing system - White 0 - 100% 0..255 impression X4 BAR 20 manual (v1.8) from software version: v0.60...
-
Page 19: Single Pixel High Resolution Mode (Spixh) 89 Dmx Channels
Color mixing system - Green 0 - 100% 0..255 Pixel 11 Blue Color mixing system - Blue 0 - 100% 0..255 White Color mixing system - White 0 - 100% 0..255 impression X4 BAR 20 manual (v1.8) from software version: v0.60... - Page 20 Color mixing system - Green 0 - 100% 0..255 Pixel 20 Blue Color mixing system - Blue 0 - 100% 0..255 White Color mixing system - White 0 - 100% 0..255 impression X4 BAR 20 manual (v1.8) from software version: v0.60...
-
Page 21: Dual Pixel Mode (Dpix) 48 Dmx Channels
Color mixing system - Green 0 - 100% 0..255 Pixel 19&20 Blue Color mixing system - Blue 0 - 100% 0..255 White Color mixing system - White 0 - 100% 0..255 impression X4 BAR 20 manual (v1.8) from software version: v0.60... -
Page 22: Dual Pixel High Resolution Mode (Dpixh) 49 Dmx Channels
Color mixing system - Green 0 - 100% 0..255 Pixel 19&20 Blue Color mixing system - Blue 0 - 100% 0..255 White Color mixing system - White 0 - 100% 0..255 impression X4 BAR 20 manual (v1.8) from software version: v0.60... -
Page 23: Special Functions Channel, All Modes
Set shutter to 48..49 and intensity to 50..59 Fixture default 248..251 (12800..15104 at high resolution) Fixture reset 252..255 For further information please contact your local GLP dealer or GLP support center. impression X4 BAR 20 manual (v1.8) from software version: v0.60... -
Page 24: Accessories
A diffusion filter with 3° vertical & 30° horizontal spread is already included with your impression X4 Bar 20. For other filter options please contact your local GLP dealer. To remove the installed cover pull down the latch shown below and pull the filter out. -
Page 25: End Omega Bracket
GLP German Light Products GmbH 7.2 End Omega Bracket: To hang the impression X4 Bar 20 vertically from one end of the unit instead of the backside, there is an optional End-Omega Bracket available. Contact your local dealer or GLP Office for further details. -
Page 26: Maintaining And Cleaning
Never touch lenses with bare fingers. IMPRESSION X4 Bar 20 is a fixture of very low maintenance. It is only necessary to clean the air inlets and outlets as well as the optical LED lenses from time to time. For safe operation it is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must not build up on, or within the fixture. -
Page 27: Technical Specifications
1000 mm / 39.4´´ Width 100 mm / 3.9´´ Height 240 mm / 9.4´´ Weight (net) 14.5 kg / 32 lbs Weight with 2 brackets 16 kg / 35 lbs impression X4 BAR 20 manual (v1.8) from software version: v0.60... -
Page 28: Dimensions
GLP German Light Products GmbH 10 Dimensions impression X4 BAR 20 manual (v1.8) from software version: v0.60...
