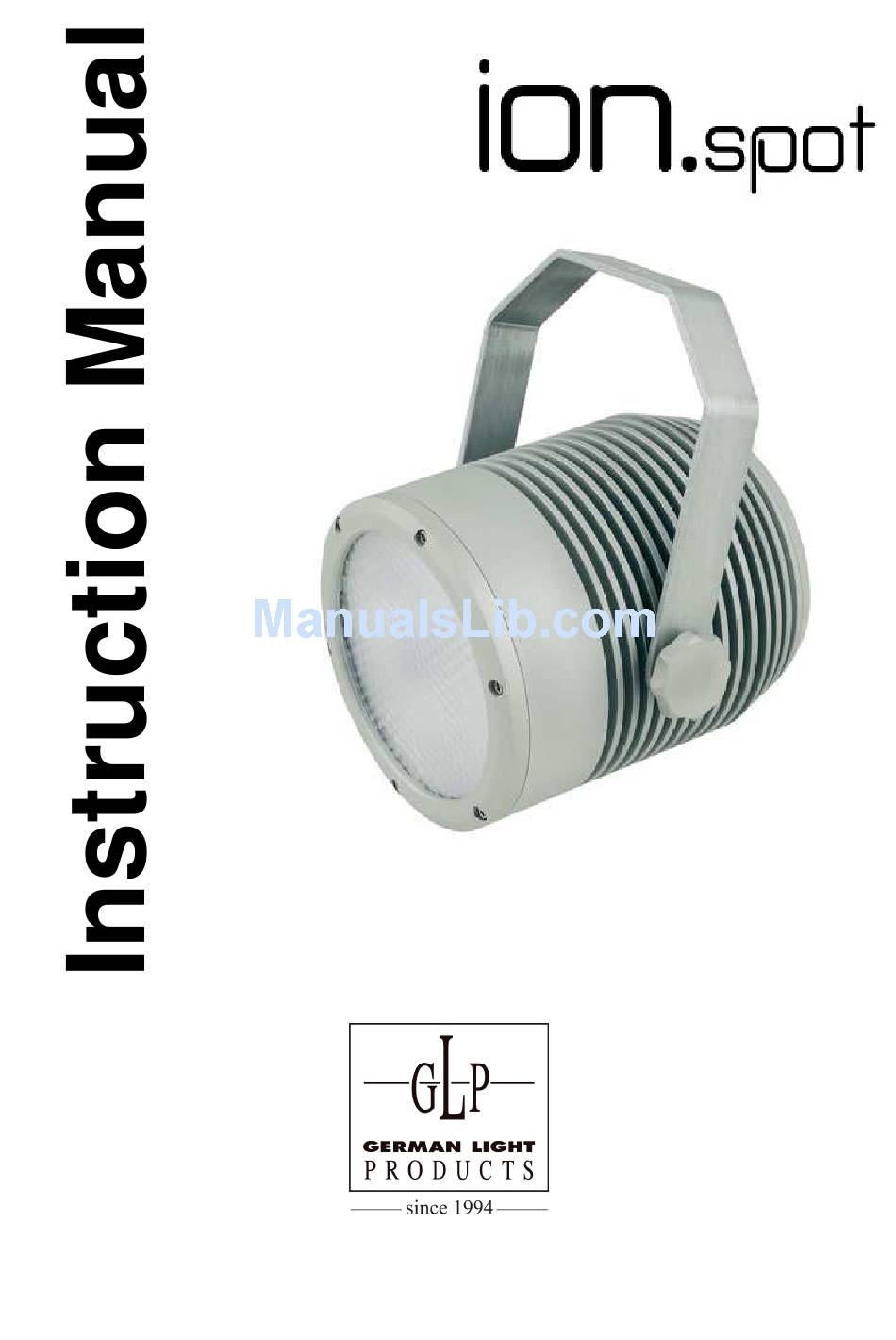

  • Page 1 Instruction version 1.1 e-mail: service@glp.de Internet: http://www.glp.de...
  • Page 2 Notes: German Light Products GmbH Instruction version 1.1...

  • Page 3: Table Of Contents

    Table of contents Description of Device....................4 1.1 Safety Instructions .................... 4 1.2 Protection rating ....................5 Preparation and Installation ................... 6 2.1 Mounting ......................6 2.2 Securing the fixture ................... 6 2.3 Connections ...................... 6 2.3.1 Power Supply..................6 2.3.2 DMX .....................

  • Page 4: Description Of Device

    1 Description of Device 1. Head (passively cooled) 2. LED Display/Menu 3. Connector (IP 65) 4. Arm with adjustment screws 1.1 Safety Instructions t is an advanced technology product. To guarantee smooth operation, it is necessary to follow the following rules. The manufacturer of this device will not take responsibility of damages through any disregard of the information in this user manual.

  • Page 5: Protection Rating

    7. Repair-, maintenance- and installation work should only perfomred by qualified or GLP certified staff. You need to pay attention to the common rules of technology that are not explicit mentioned in this manual.

  • Page 6: Preparation And Installation

    2 Preparation and Installation 2.1 Mounting t is fully operational whether it hangs or is mounted at the wall. It can also be operated while standing on the floor. Keep a safety distance of 0.5 m from any easily inflammable materials (decoration etc.). Pay attention to the regulations of: BGV C1 (former VBG 70) and DIN VDE 0711-217.

  • Page 7: The Menu

    3 The Menu Mode adjust and DMX address setting The Mode will change with the button 100. The Mode button needs to be pushed several times until dn1, dn2 or dn3 shows in the display. The DMX address will be adjusted with the buttons 1, 10 and 100. Every button press will incremently the digit above.
  • Page 8 DM Mode, Color-Mode, 2 DMX Channels (dn3) Channel Function Times and Values 1) Color 0..7 00..07 0..2,5 (fixed) Color 01 - Red 8..15 08..0F 3..5,5 Color 02 - Amber 16..23 10..17 6..8,5 Color 03 - Yellow (warm) 24..31 18..1F 9..12,5 Color 04 - Yellow 32..39 20..27...

  • Page 9: Maintaining And Cleaning The Ion Spot

    5 Maintaining and Cleaning the Ion Spot t is a low maintenance fixture. It is only necessary to clean the optical LED lenses from time to time. For safe operation it is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must not build up on, or within the fixture.

  • Page 10: Technical Specifications

    6 Technical Specifications Power supply Power consumption 45 VA (Watt) Power input ~100-240 V AC, 50-60 Hz (auto sensing input) Fuse protection Micro-fuse 5x20 mm, T1A Protection rating IP65 Operational Parameters Ambient Temperature 0° - 45° C / 32° - 113° F Lighting System - Additive Color mixing ®...

  • Page 11: Index

    7 Index BGV C1............6 Normal-Mode ..........7, 8 Circumference ..........9 Optical parts ..........9 Cleaning............9 Power Supply ..........6 Danger of BURNING ........4 Description of Device ........4 DIN VDE 0711-217 .......... 6 Rebel High-power- LEDs ......10 DMX ..............
  • Page 12 German Light Products GmbH Instruction version 1.1...
