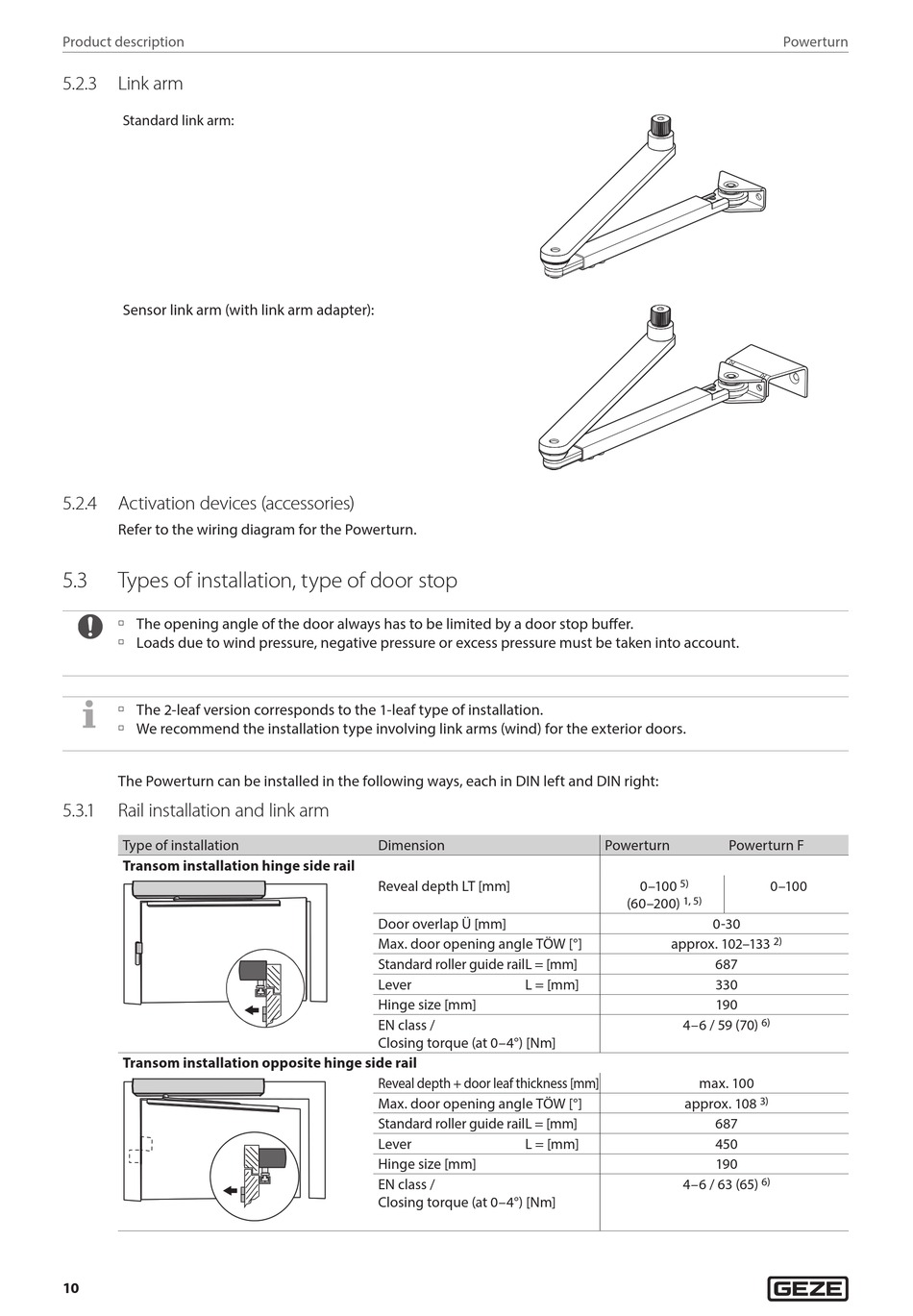

Product description
5.2.3
Link arm
Standard link arm:
Sensor link arm (with link arm adapter):
5.2.4
Activation devices (accessories)
Refer to the wiring diagram for the Powerturn.
5.3
Types of installation, type of door stop
à The opening angle of the door always has to be limited by a door stop buffer.
à Loads due to wind pressure, negative pressure or excess pressure must be taken into account.
à The 2-leaf version corresponds to the 1-leaf type of installation.
à We recommend the installation type involving link arms (wind) for the exterior doors.
The Powerturn can be installed in the following ways, each in DIN left and DIN right:
5.3. 1
Rail installation and link arm
Type of installation
Transom installation hinge side rail
Transom installation opposite hinge side rail
10
Dimension
Reveal depth LT [mm]
Door overlap Ü [mm]
Max. door opening angle TÖW [°]
Standard roller guide rail L = [mm]
Lever
L = [mm]
Hinge size [mm]
EN class /
Closing torque (at 0–4°) [Nm]
Reveal depth + door leaf thickness [mm]
Max. door opening angle TÖW [°]
Standard roller guide rail L = [mm]
Lever
L = [mm]
Hinge size [mm]
EN class /
Closing torque (at 0–4°) [Nm]
Powerturn
Powerturn F
0–100
5)
0–100
(60–200)
1, 5)
0-30
approx. 102–133
2)
687
330
190
6)
4–6 / 59 (70)
max. 100
approx. 108
3)
687
450
190
4–6 / 63 (65)
6)
Powerturn
