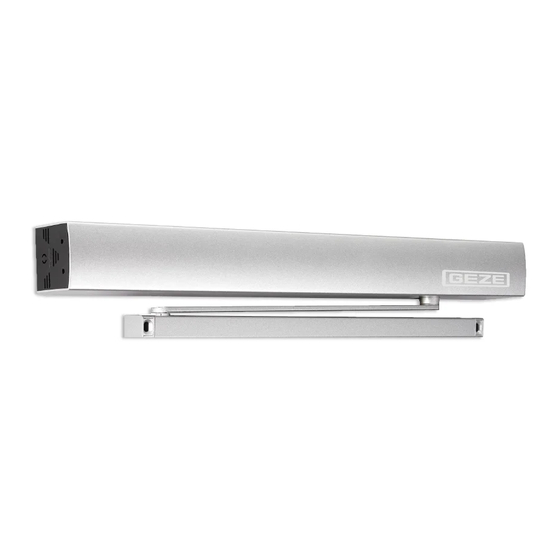

  • Page 1 ECturn Translation of the original instructions GB User manual...

  • Page 2: Table Of Contents

    ECturn Contents Symbols and means of representation ......................3 Product liability ................................3 Safety instructions ..............................4 Terms ....................................5 Structure ..................................6 Operation ...................................7 Functions ..........................................7 Operating modes ......................................7 Button programme switch TPS (optional)...............................8 What to do if ... ? ...............................9 Cleaning and maintenance ..........................10...

  • Page 3: Symbols And Means Of Representation

    ECturn Symbols and means of representation Symbols and means of representation Warnings In these instructions, warnings are used to warn against material damage and injuries. Always read and observe these warnings. Observe all the measures that are marked with the warning symbol and warning word.

  • Page 4: Safety Instructions

    DIN VDE 0100-610. Exception: If the ECturn swing door drive is connected to the mains voltage by the mounted power plug, the connection does not have to be carried out by a qualified electrician.

  • Page 5: Terms

    ECturn Terms Terms Term Statement Hinge side That side of the door at which the hinges from which the door leaf is suspended are located. Usually that side of the door located in the opening direction. Opposite hinge side That side of the door that lies opposite the hinge side. Usually that side of the door located in the closing direction.

  • Page 6: Structure

    Structure ECturn Structure System parts and options The door drive unit can be mounted in transom mounting at the lintel or in door panel mounting on the door à panel. The door drive is available as a 1-leaf version. à...

  • Page 7: Operation

    (depending on the charging state of the battery and frequency with which the door is used). For setting of the swing door drive with battery operation after a power failure refer to the ECturn wiring dia- gram (ID No. 134079).

  • Page 8: Button Programme Switch Tps (Optional)

    Operation ECturn Button programme switch TPS (optional) Can be connected additionally to the internal programme switch. At the button programme switch, the system operating mode is selected and the corresponding programme is displayed. The desired operating mode can be selected by pressing the but- tons.

  • Page 9: What To Do If

    ECturn What to do if ... ? What to do if ... ? Problem Cause Remedy Door only opens and closes Obstruction on the sliding Remove obstruction and check door leaf for ease of movement. slowly path Safety sensor close (SIS) Clean the Safety sensor close.

  • Page 10: Cleaning And Maintenance

    Anodised surfaces Wipe with non-alkaline potassium soap (pH value 5.5…7) Maintenance The owner must ensure that the system functions properly. GEZE offers maintenance contracts with the following services: Inspect fastening elements for firm seating à Carry out miscellaneous adjustment work à...

  • Page 11: Technical Data

    ECturn Technical data Technical data Opening speed 0 °/s … 45 °/s Closing speed 0 °/s … 45 °/s Electrical connection values 110 – 230 V; 50 – 60 Hz pursuant to DIN IEC 38 Connected load Rated voltage 230 W max.
