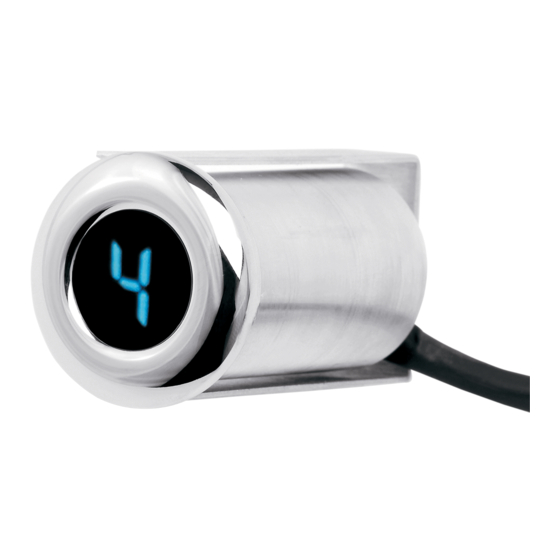

Dakota Digital PGR-1000-F Manual

Programmable gear readout fairing mount (1.25” hole)

Table of Contents

Download this manual

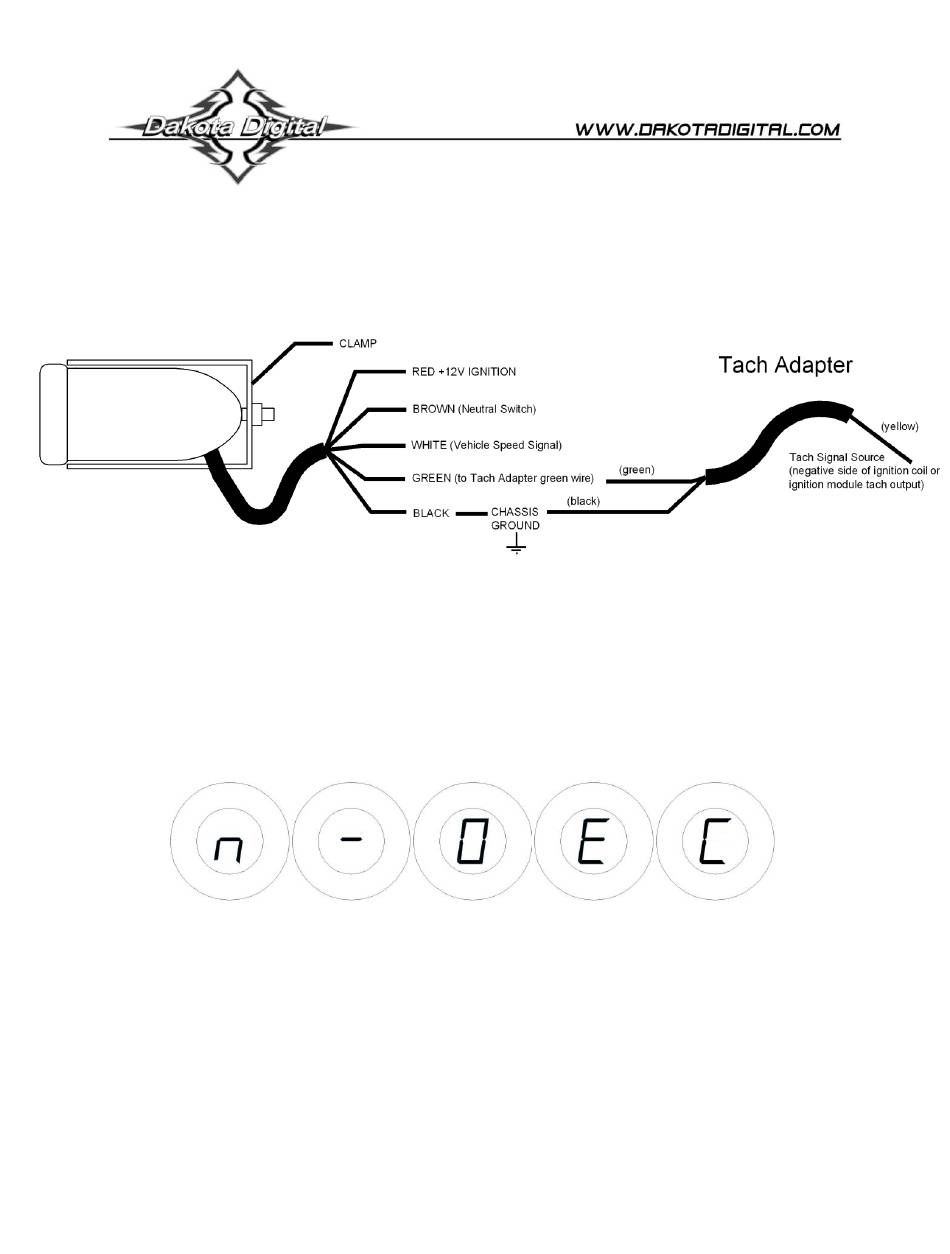

See back page for alternative wiring for bikes w/ECM tach output

Display readout:

'n'

-transmission in neutral

'-'

-no speed or rpm signal. (key on with engine off)

'0'

-engine is running, but no speed signal. (key on with engine on)

'E'

-speed signal is present, but no rpm signal.

'1' – '7 '

-current transmission gear.

'C'

-settings cleared and waiting to learn gear pattern.

When the display shows a flashing 'C' or 'n' it is ready to start learning the gear pattern.

 After you start the engine you should see a flashing '0'.

 Once you start driving this will change to a flashing '1'.

 Drive at a constant speed in 1

shift to 2

 Drive at a constant speed in 2

shift to 3

PGR-1000-F

Programmable Gear Readout

Fairing Mount (1.25" hole)

gear for 20-25 seconds. Once the display quits flashing,

MAN#650194

Table of Contents

Do you have a question about the PGR-1000-F and is the answer not in the manual?

Page 1 PGR-1000-F Programmable Gear Readout Fairing Mount (1.25” hole) See back page for alternative wiring for bikes w/ECM tach output Display readout: ‘n’ -transmission in neutral ‘-‘ -no speed or rpm signal. (key on with engine off) ‘0’ -engine is running, but no speed signal. (key on with engine on) ‘E’...
Page 2  Repeat these steps until you have programmed all of the gears in order. Once you stop or shift into neutral the settings will all be saved and the readout will begin normal operation. Clearing or resetting the gear programming, or if PGR is mounted below the handle-bars: 1.
Page 3 Any action for breach of any warranty hereunder, including any implied warranty of merchantability, must be brought within a period of 24 months from date of original purchase. No person or representative is authorized to assume, for Dakota Digital, any liability other than expressed herein in connection with the sale of this product.
