A M P R E S E A R C H P O W E R S T E P – G M C / C H E V R O L E T

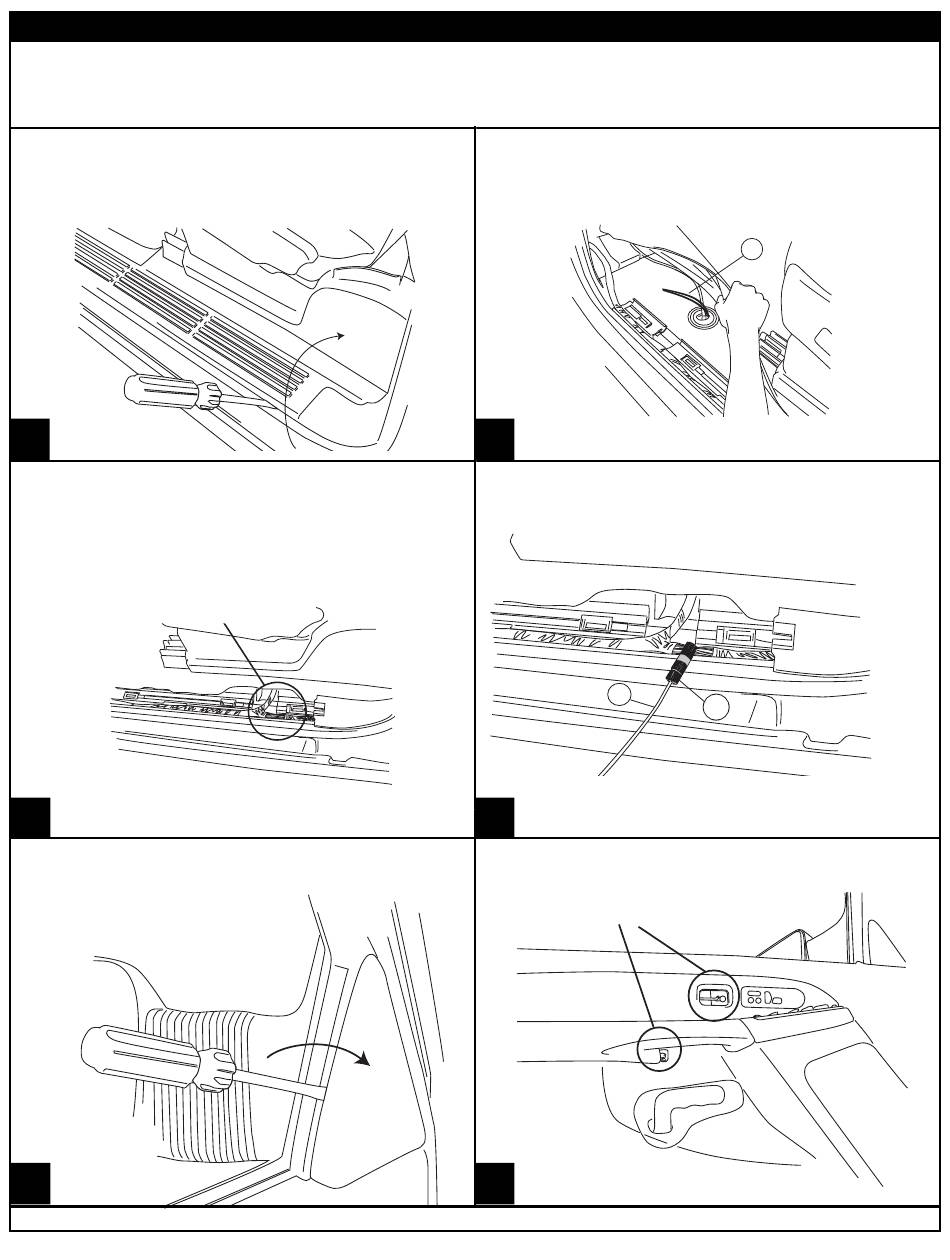

IMPORTANT:
wires will not be used otherwise. See wire diagrams for model years previous to 2003.
Pop off the threshold cover with screwdriver and
remove the kick panel. The panel will slide out
from under the seat after fasteners give way.
19
On Crew Cab's and SUV's carefully remove wire
wrap. On drivers side find the LIGHT BLUE wire
with BLACK STRIPE. On the passenger side find
GREEN wire with BLACK STRIPE rear of the "T"
junction where wires cross under the front seat).
See wire diagrams for model
years previous to 2003.
21
Remove plastic trim on door
near mirror attachment.
23
www.amp-research.com
I N S T A L L A T I O N G U I D E
Steps 21 and 22 are for Crew Cabs and SUV's only. Light blue and Green
Pull up the carpet and thread both wires
through the floor panel (same steps on passen-
ger side EXCEPT drill 9/32" hole in metal and
add rubber grommet).
Seal holes with silicone glue.
20
Using supplied Posi-Taps™ splice shorter
trigger wire into wire found in step 21.
4
Note: Crew Cab and SUV's only; Tape
22
off these extra wires otherwise.
To remove door, first pry off door lock
tab. Remove door bolts.
24
8/11
4
