A M P R E S E A R C H P O W E R S T E P – G M C / C H E V R O L E T

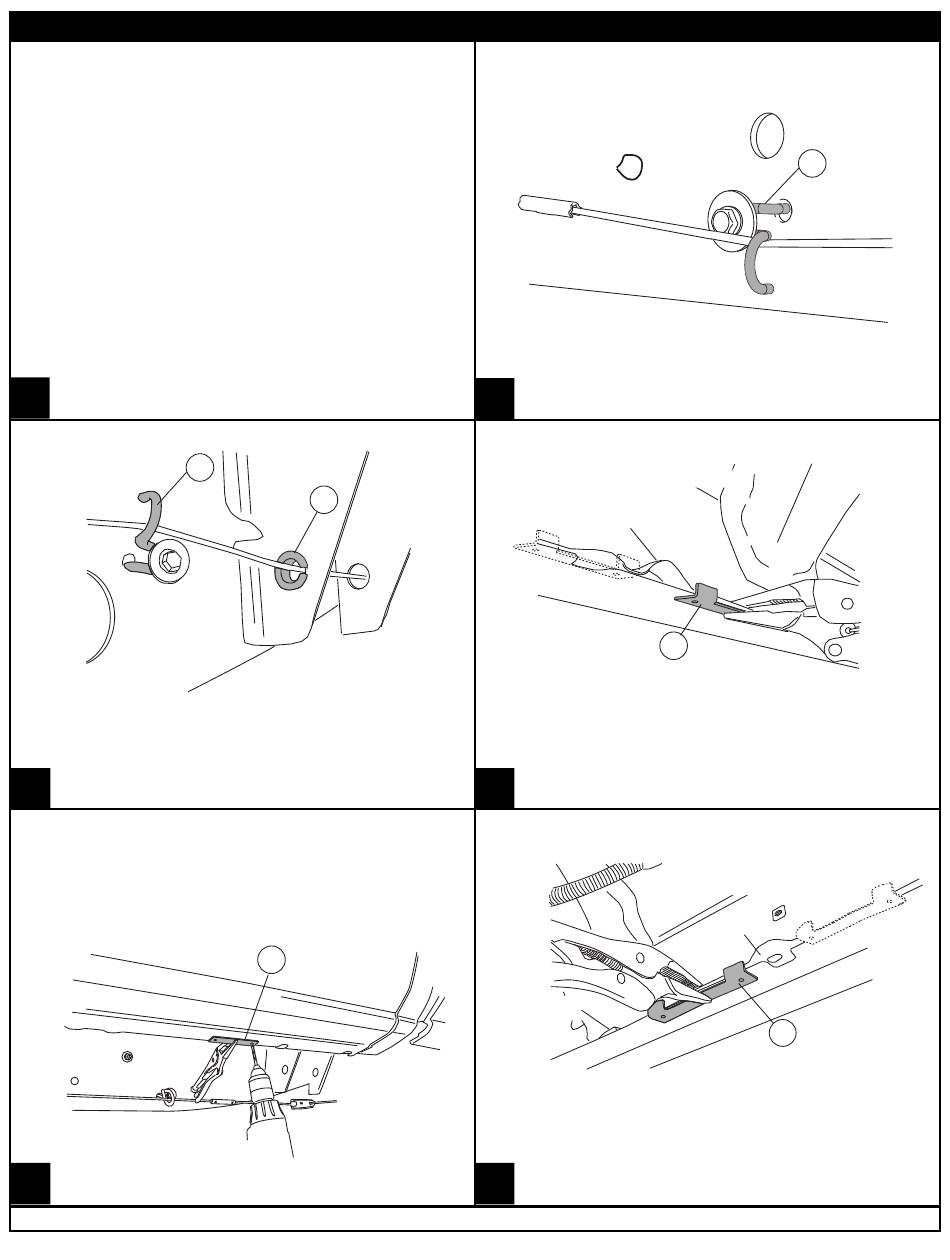

Steps 1-3 for Heavy Duty Trucks
only! For all other vehicles skip
to Step 4.
HD - Short Bed: Remove forward most brake
cable guide.
HD - Long Bed: Remove first and third brake
cable guide.
1
6
HD - Long Bed: Install plastic brake cable guide
in forward hole of rear body mount.
3
With drill template secured with vise grips,
drill 1/8" starter holes. Remove template and
drill holes to 21/64" .
5
www.amp-research.com
I N S T A L L A T I O N G U I D E
7
8
Install replacement brake cable guides.
2
Rear linkage assembly. Template position for
Tahoe and Yukon shown in hidden lines.
SILL DRAIN
Clamp drill template about 1/16" forward of the
rearmost sill drain.
Tahoe and Yukon: Clamp Template 1/8"
4
behind second rearmost sill drain.
Front linkage assembly. Template position for
SUV driver side shown in hidden lines.
SILL DRAIN
FOR SUV
Clamp drill template to pinch weld about 1/8"
behind the forward most mounting tab.
Then repeat Step 5.
SUV's: On driver side only, clamp template
1/8" in front of forward most mounting tab.
6
5/11
6
8
MOUNTING TAB
8
IM75113 rev 04.28.11
