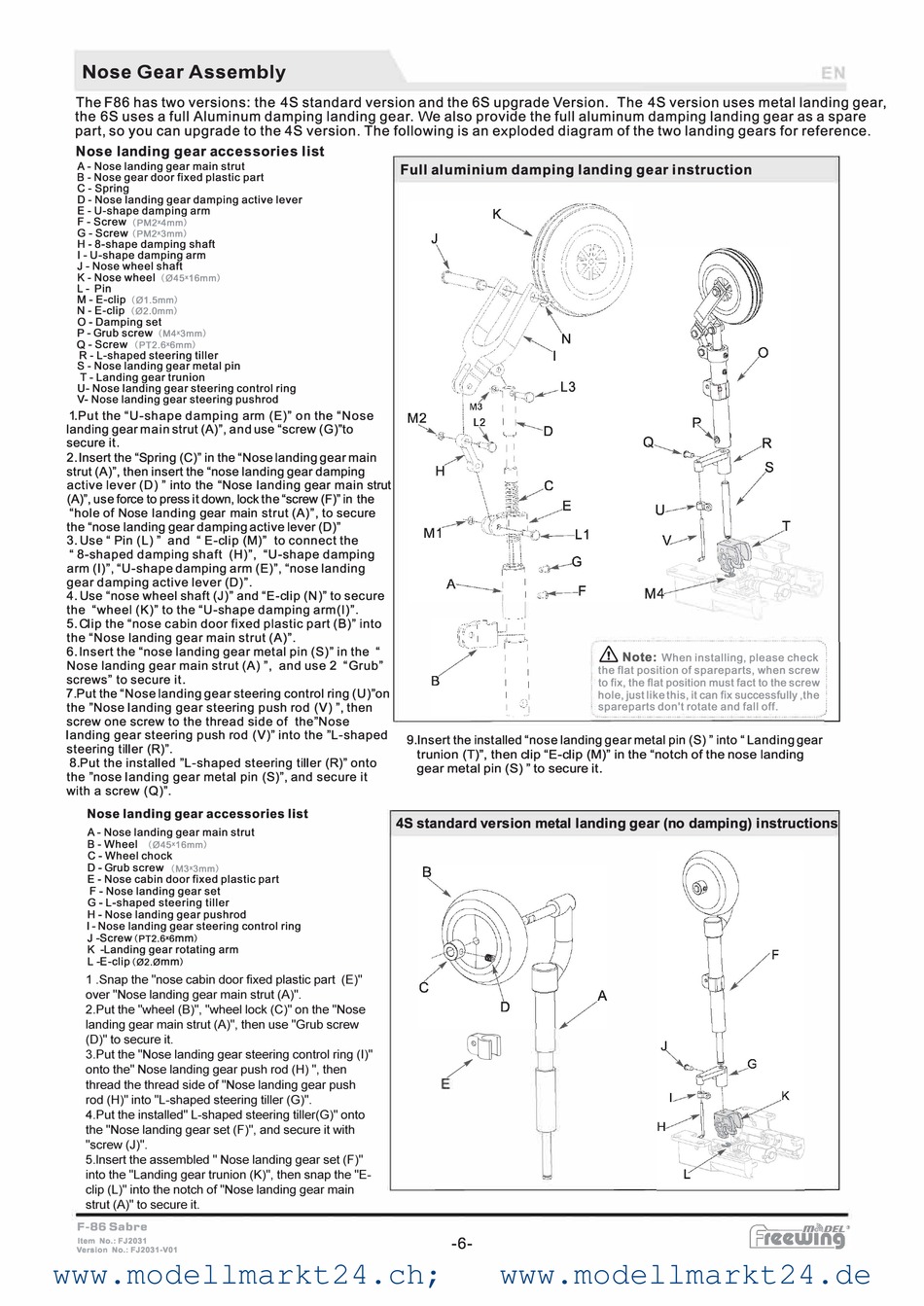

Nose Gear Assembly

The F86 has two versions: the 4S standard version and the 6S upgrade Version. The 4S version uses metal landing gear,
the 6S uses a full Aluminum damping landing gear. We also provide the full aluminum damping landing gear as a spare
part, so you can upgrade to the 4S version. The following is an exploded diagram of the two landing gears for reference.
Nose landing gear accessories list
A- Nose landing gear main strut
B - Nose gear door fixed plastic part
C- Spring
D - Nose landing gear damping active lever
E - i-shape damping arm
F - Screw (PM2•4mm)
G - Screw (PM2•3mm)
H - 8-shape damping shaft
I - i-shape damping arm
J - Nose wheel shaft
K- Nose wheel (045•16mm)
L - Pin
M - E-clip (01.5mm)
N - E-clip (02.0mm)
0 - Damping set
P - Grub screw (M4•3mm)
Q- Screw (PT2.6•6mm)
R - L-shaped steering tiller
S - Nose landing gear metal pin
T - Landing gear trunion
U- Nose landing gear steering control ring
V- Nose landing gear steering push rod
1. Put the "U-shape damping arm (E)" on the "Nose
landing gear main strut (A)", and use"screw (G)"to
secure it.
2. lnsert the "Spring (C)" in the "Nose landing gear main
strut (A)", then insert the "nose landing gear damping
active lever (D) " into the "Nose landing gear main strut
(A)", use force to press it down, lock the "screw (F)" in the
"hole of Nose landing gear main strut (A)", to secure
the"nose landing gear damping active lever (D)"
3. Use" Pin (L) " and " E-clip (M)" to connect the
"8-shaped damping shaft (H)", "U-shape damping
arm (I)", "U-shape damping arm (E)", "nose landing
gear damping active lever (D)".
4. Use "nose wheel shaft (J)" and "E-clip (N)" to secure
the "wheel (K)" to the "U-shape damping arm(I)".
5. Clip the "nose cabin door fixed plastic part ( B)" into
the "Nose landing gear main strut
6. lnsert the "nose landing gear metal pin (S)" in the "
Nose landing gear main strut (A) ", and use 2 "Grub"
screws" to secure it.
7 .Put the "Nose landing gear steering control ring (U)"on
the "Nose landing gear steering push rod (V) ", then
screw one screw to the thread side of the"Nose
landing gear steering push rod (V)" into the "L-shaped
steering tiller (R)".
8.Put the installed "L-shaped steering tiller (R)" onto
the "nose landing gear metal pin (S)", and secure it
with a screw (Q)".
Nose landing gear accessories list
A- Nose landing gear main strut
B -Wheel (045•16mm)
C -Wheel chock
D - Grub screw
(M3•3mm)
E - Nose cabin door fixed plastic part
F - Nose landing gear set
G - L-shaped steering tiller
H - Nose landing gear push rod
I - Nose landing gear steering control ring
J -Screw (PT2.6•6mm)
K -Landing gear rotating arm
L -E-clip (02.0mm)
1 .Snap the "nose cabin door fixed plastic part (E)"
over "Nose landing gear main strut (A)".
2.Put the "wheel (B)", "wheel lock (C)" on the "Nose
landing gear main strut (A)", then use "Grub screw
(D)" to secure it.
3.Put the "Nose landing gear steering control ring (I)"
onto the" Nose landing gear push rod (H) ", then
thread the thread side of "Nose landing gear push
rod (H)" into "L-shaped steering tiller (G)".
4.Put the installed" L-shaped steering tiller(G)" onto
the "Nose landing gear set (F)", and secure it with
"screw (J)".
5.lnsert the assembled " Nose landing gear set (F)"
into the "Landing gear trunion (K)", then snap the "E-
clip (L)" into the notch of "Nose landing gear main
strut (A)" to secure it.
F-86 Sabre
Item No.: FJ2031
Version No.: FJ2031-V01
www.modellmarkt24.ch; www.modellmarkt24.ch;
Full aluminium damping landing gear instruction
(A".
9.lnsert the installed "nose landing gear metal pin (S) " into" Landing gear
trunion (T)", then clip"E-clip (M)" in the "notch of the nose landing
gear metal pin (S) " to secure it.
4S standard version metal landing gear (no damping) instructions
&
the flat position of spareparts, when screw
to fix, the flat position must fact to the screw
hole, just like this, it can fix successfully ,the
spareparts don't rotate and fall off.
]
/
