Fuselage Assembly

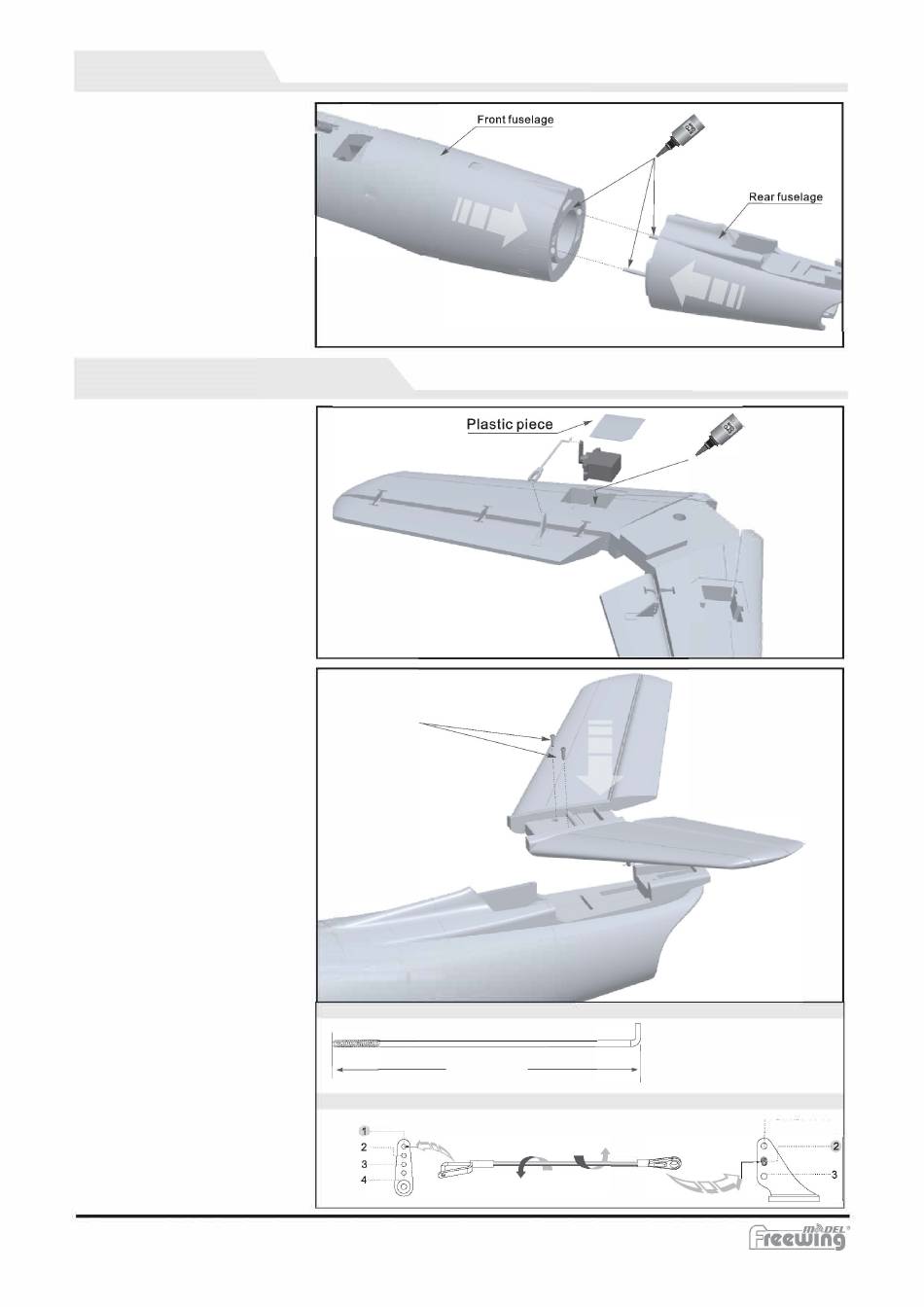

Apply glue to the rods and join the
tail section to the fuselage. More
glue can be applied to the two
sections as deemed necessary.
For best results, allow the glue to
become tacky, then separate the
two pieces so that the glue forms
strings, and rejoin. Repeat three
times then permanently join the
two sections.

Horizontal Stabilizer Assembly

1 . Using a servo tester or radio, center
the servo.
2 .Use the supplied glue to secure the
servo into the servo hatch.
3. Insert the servo cable into the servo
wire trough.
4. Using the supplied glue, attach the
servo hatch cover to the wing.
5. Feed the open end of the pushrod into
the servo arm. center the elevator and
adjust the control rod clevis to the correct
length so that the elevator remains
centered.
6. Repeat these steps for the other
elevator servo.
7. Install the elevator to the rear of
the fuselage and use the 2 screws to
secure it.
F-86 Sabre
Item No.: FJ2031
Version No.: FJ2031-V01
