STEP 6

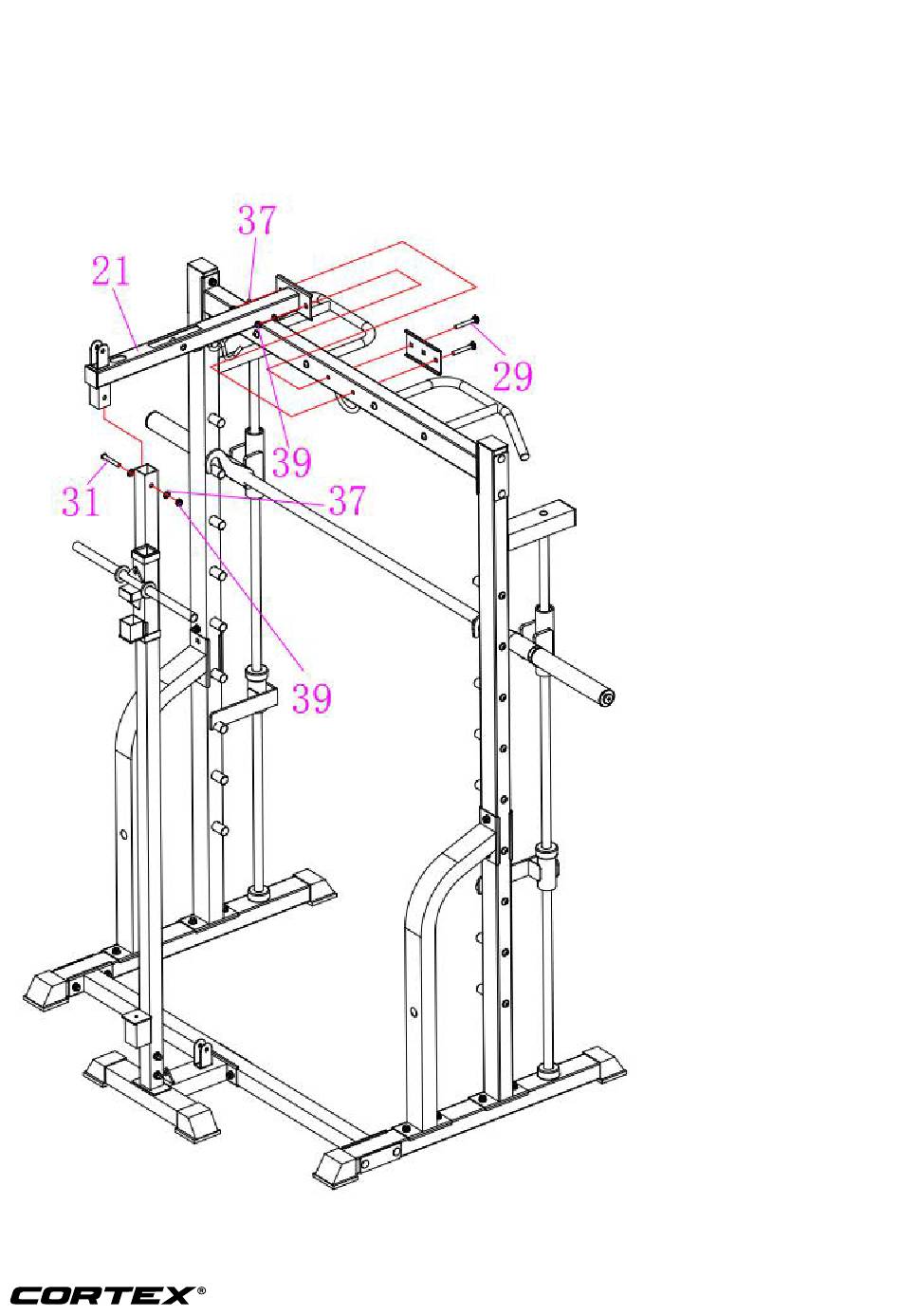

1. According to the diagram, the upper beam is mounted on the rear column (# 18) and the upper
connection (# 12), the bolt (# 31), flat gasket (# 37) and nut (# 39) are fixed for the connection
with the rear column (# 18).
2. The bolt (# 29), 70 face connection plate (# 24), flat gasket (# 37) and nut (# 39) is fixed for the
connection with the upper beam.
