5.5.3 Adding or Removing Weights

The weights are located in the lower nose of the towfish. They can be accessed and removed by removing
the forward panel or through the forward port and starboard bridle ports.
Required Tools
7/16 Combination Wrench
•
• Adjustable Crescent Wrench
• Stubby #2 Phillips Screwdriver
Instructions:
1. The front panel is removed by unthreading the [12] screws using the Stubby #2 Phillips
Screwdriver.

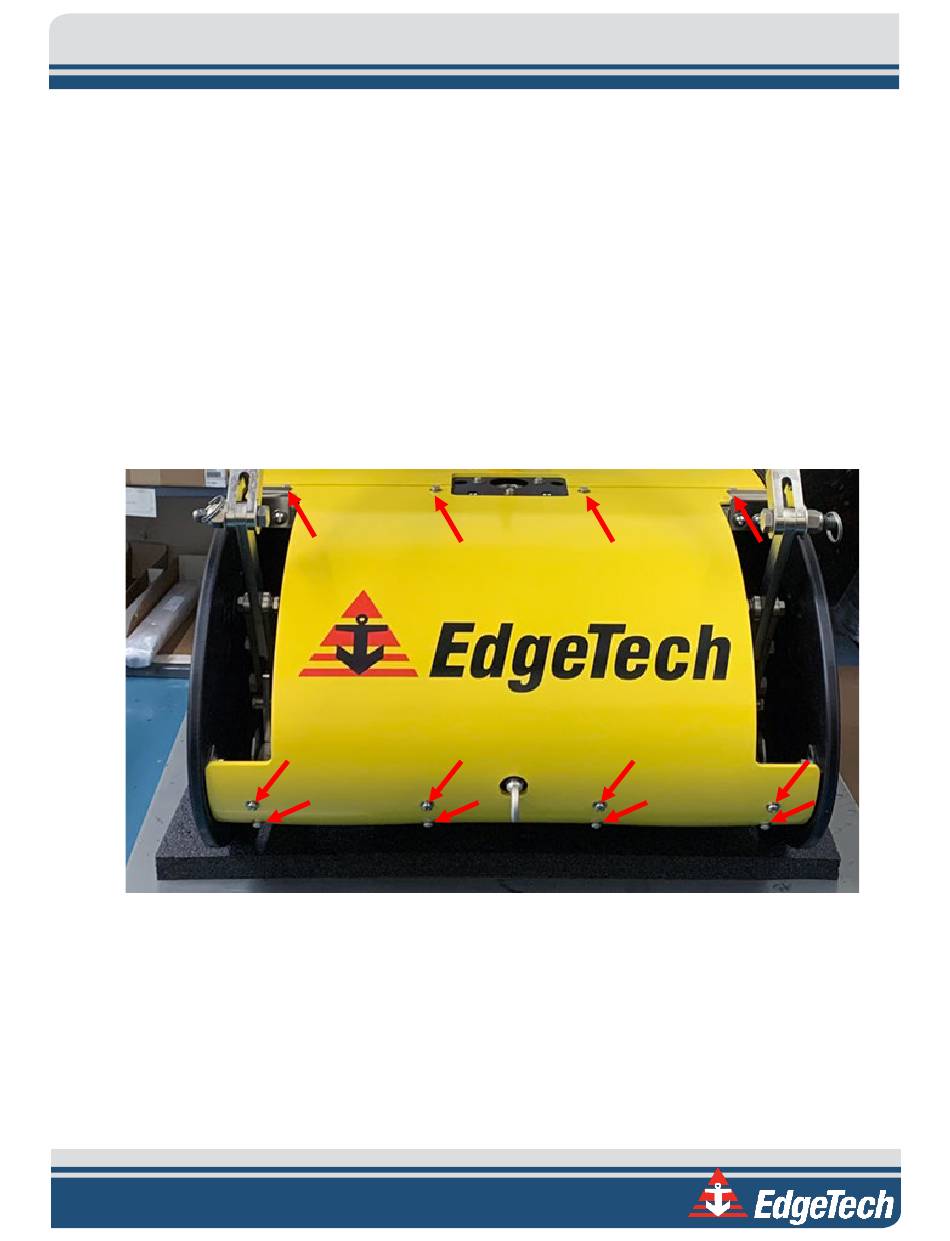

Figure 5-3: 3400 Front Panel Removal With Screws To Be Removed Called Out (12)

2. Loosen and remove (4) hex nuts and (4) washers using the 7/16" Combination Wrench or
Adjustable Crescent Wrench.
