- Page 1 8242XS RELEASE U S E R H A R D W A R E M A N U A L 0004815_Rev_G 3/30/2018 EdgeTech 4 Little Brook Road West Wareham, MA 02576 Tel: (508) 291-0057 Fax: (508) 291-2491 www.EdgeTech.com...
- Page 2 The information, figures, and specifications in this manual are proprietary and are issued in strict confidence on condition that they not be copied, reprinted, or disclosed to a third party, either wholly or in part, without the prior, written consent of EdgeTech. Any reproduction of EdgeTech supplied software or file sharing is strictly prohibited.
-
Page 3: Attention - Read This First
ATTENTION – READ THIS FIRST! All personnel involved with the installation, operation, or maintenance of the equipment described in this manual should read and understand the warnings and cautions provided below. CAUTION! This equipment contains devices that are extremely sensitive to static electricity. -
Page 4: Hardware Variations And Compatibility
HARDWARE VARIATIONS AND COMPATIBILITY The 8242XS Release contains both standard and proprietary hardware. At times, EdgeTech may change the standard components due to their availability or performance improvements. Although the component manufacturers—along with their models and styles—may change from unit to unit, replacement parts will generally be interchangeable. -
Page 5: About This Document
Purpose of this Manual The purpose of this manual is to provide the user with information on the setup and use of EdgeTech’s 8242XS Release. Although this manual encompasses the latest operational features of the 8242XS, some features may be periodically upgraded. Therefore, the information in this manual is subject to change and should be used for reference only. -
Page 6: Warranty Statement
All equipment manufactured by EdgeTech is warranted against defective components and workmanship for a period of one year after shipment. Warranty repair will be done by EdgeTech free of charge. Shipping costs are to be borne by the customer. Malfunction due to improper use is not covered in the warranty, and EdgeTech disclaims any liability for consequential damage resulting from defects in the performance of the equipment. -
Page 7: Returned Material Authorization
The RMA will help identify returned equipment when it arrives at our receiving dock and enables tracking of the equipment while at our facility. The material should be shipped to EdgeTech, 4 Little Brook Road, West Wareham, MA 02576. Refer to the RMA number on all documents and correspondences. -
Page 8: International Shipping Return Instructions
FREE DOMICILE and must be delivered to our door. 5. Please send all shipping documents in advance of the shipment by email to service@edgetech.com. Providing EdgeTech with the shipping documents will enable us to follow up with the carrier on our end. -
Page 9: Customer Service
CUSTOMER SERVICE Customer service personnel at EdgeTech are always eager to hear from users of our products. Your feedback is welcome, and is a valuable source of information which we use to continually improve these products. Therefore, we encourage you to contact EdgeTech Customer Service to offer any suggestions... -
Page 10: Company Background
USBL positioning systems, and bathymetric systems—that have become standards in the industry. EdgeTech has also consistently anticipated and responded to future needs through an active research and development program. Current efforts are focused on the application of cutting-edge CHIRP and acoustic technology. -
Page 11: Table Of Contents
TABLE OF CONTENTS ATTENTION – READ THIS FIRST! ......................iii Warnings, Cautions, and Notes ........................ iii HARDWARE VARIATIONS AND COMPATIBILITY .................. iv ABOUT THIS DOCUMENT ........................v Purpose of this Manual ..........................v Liability ..............................v Revision History ............................v WARRANTY STATEMENT ........................ - Page 12 Tests ......................... 4-23 Post Deployment ........................4-24 5.0 MAINTENANCE ..........................5-1 Housing and Release Preparation and Care ................. 5-1 To Open the 8242XS ........................5-2 Tools ..............................5-2 8242XS Disassembly ....................5-2 Remove the Clevis End Cap ..................5-4 8242XS Assembly .......................... 5-7 Clevis End Cap Assembly ....................
- Page 13 xiii Battery Replacement ........................5-9 Battery Replacement Procedure ................5-10 Battery Replacement Considerations ..............5-12 5.4.2.1 Battery Replacement ....................5-13 O-Ring Considerations ........................ 5-14 Additional O-Rings....................5-14 O-Ring Service Disassembly ..................5-14 General Cleaning and Inspection ....................5-16 Inspection Particulars ....................5-16 General Inspection and Replacement Schedule ............
-
Page 14: List Of Figures
LIST OF FIGURES Figure 1-1: An 8242XS Release in the Arctic Sea ..................1-1 Figure 2-1: PCB Connectors ........................2-1 Figure 2-2: ICD 8272-XS Short – 0010816 ....................2-4 Figure 2-3: ICD 8242XS Long – 0011329 ....................2-5 Figure 4-1: The Purge Port Plug ......................... 4-1 Figure 4-2: Remove the Purge Port Plug Retainer .................. - Page 15 Figure 5-19: 8242XS Acoustic Release Transducer Assembly – 0003226 ..........5-22 Figure 5-20: 8242XS Release Mechanism Sub Assembly – Page 1 of 2 – 002780 ........5-23 Figure 5-21: 8242XS Release Mechanism Sub Assembly – Page 2 of 2 – 002780 ........5-24 Figure A-1: 8242XS Remote Release –...
- Page 16 Table 5-1: General Inspection and Replacement Schedule ..............5-17 Table 5-2: Field Kit – 0003102 ........................5-17 Table 5-3: 0000002737 BOM ........................5-19 Table 5-4: 0002650 BOM ......................... 5-21 Table 5-5: 0002780 BOM ......................... 5-26 Table B-1: 8242XS Tandem Parts List – 0006657 ..................B-1 8242XS Release 0004815_REV_G...
-
Page 17: Overview

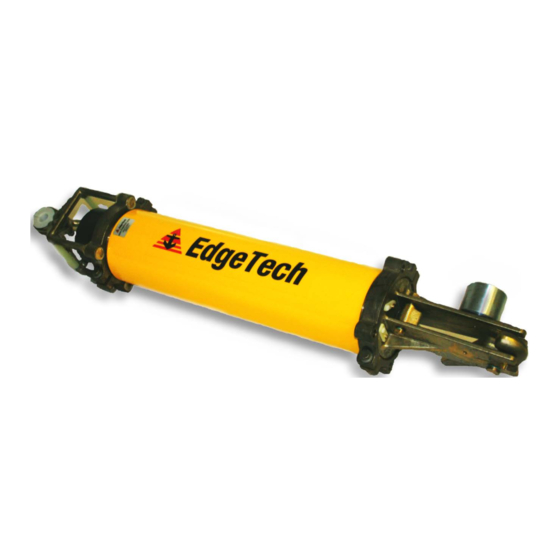

This manual describes the 8242XS, a field-proven, reliable, and versatile mooring instrument, functioning as both an Acoustic Release and Transponder. The 8242XS can also be used for specialized applications, such as the opening/closing of underwater valves and in Emergency Recovery Systems. The 8242XS has been designed for use as an instrument location and recovery system on oceanographic moorings and platforms. -
Page 19: Specifications
SPECIFICATIONS Mechanical & Physical Specifications WARNING! The 8242XS is not intended for overhead lifting. Exercise extreme caution to prevent serious personal injury. Mechanical specifications for the 8242XS Release are as follows: SPECIFICATIONS VALUE Release mechanism Spring-driven, rotary type with advantage hook... -
Page 20: Acoustic Specifications
SECTION 2: SPECIFICATIONS Acoustic Specifications The acoustic specifications for the 8242XS unit are described in the following sub-sections. SPECIFICATIONS VALUE Transmit source level 192 dB re 1 µPascal-meter Command codes BACS commands Transponder sensitivity -80 dB re 1 µPascal > or = 44 dB re root Hz for jitter < +/- 0.5 milliseconds (3 σT). -
Page 21: Bacs Command Coding
2 years & 40,000 replies 2 years & 100,000 replies Replaceable Alkaline 4 years & 200,000 replies 4.5 years & 250,000 replies Replaceable Lithium 9 years & 500,000 replies Table 2-7: Battery Type Specifications Mechanical Drawings Mechanical Drawings for the 8242XS are shown below:... -
Page 22: Figure 2-2: Icd 8272-Xs Short - 0010816
SECTION 2: SPECIFICATIONS Figure 2-2: ICD 8272-XS Short – 0010816... -
Page 23: Figure 2-3: Icd 8242Xs Long - 0011329
Figure 2-3: ICD 8242XS Long – 0011329... -
Page 25: Setup And Installation
This sheet includes the 8242XS’s commands, and transponder frequencies. Acoustic Efforts should be made to ensure that there is a clear acoustic path between the 8242XS Transducer and the source (typically a dunking Transducer from a deck unit). Structural elements of a mooring system which have significantly different acoustic impedance than that of seawater will cause absorption or reflection of acoustic signals, which will degrade the operation of the unit. -
Page 26: Table 3-1: Status Reply Meanings
SECTION 3: SETUP AND INSTALLATION The status reply indicates one of four states: • "upright (within 45° of upright)" and released • "upright (within 45° of upright)" and not released • "tilted (more than 45° from upright)" and released • "tilted (more than 45°... -
Page 27: Operating Instructions
To use the 8242XS, the Housing MUST be opened so that the battery can be plugged into the JP5 header connector on the electronic board. Then, the unit must be closed and the Housing purged. -
Page 28: Figure 4-2: Remove The Purge Port Plug Retainer
SECTION 5: MAINTENANCE 1. Remove the Purge Port Plug Retainer from the Release end of the Instrument by unscrewing the nylon 4-2. screw that holds it in place, shown in IGURE Figure 4-2: Remove the Purge Port Plug Retainer 2. Equalize pressure by removing the purge port plug, shown in 4-3. -
Page 29: Removing The Lifting Support
Removing the Lifting Support 1. Remove the three titanium bolts from the top cage-clamp assembly. This must be done carefully. NOTE: The Bolt at the top of the Cage is shorter than the other two. CAUTION! Never put the socket wrench over both nuts when attempting to removing the Top Nut from the three titanium bolts. -
Page 30: Figure 4-5: Using A Wrench To Pry The Cage Apart
SECTION 5: MAINTENANCE 2. Place a wrench into the gap between the Cages to pry one side of it off, shown in 4-5. IGURE Figure 4-5: Using a Wrench to Pry the Cage Apart 3. With a soft mallet, tap the cages free of the End Cap (two 1/2-inch diameter spreader rods are loose and will fall free of the cage as it is disassembled). -
Page 31: Removing The Transducer End
Removing the Transducer End CAUTION! Take care when removing the Transducer End Cap from the Housing, as the Transducer is plugged into the Electronics Assembly. 1. Grip the Transducer by its base close to the metal end cap, and pull the Transducer End Cap from the Housing, taking care not to squeeze or deform the Transducer. -
Page 32: Applying Power
SECTION 5: MAINTENANCE Applying Power The Electronics Assembly and Battery Pack are mounted to an aluminum tray, which is attached to the Release End Cap. Once the Transducer End Cap is removed, the battery can be plugged in. 1. Plug the 4-pin battery connector into the header JP5 on the circuit board. When doing so, ensure 4-10. -
Page 33: Closing The Transducer End
Closing the Transducer End Before closing the Transducer End, inspect the O-rings and O-ring mating surfaces and service if needed, refer to ERVICE AND NSPECTION CAUTION! Ensure the 4-pin battery pack cable connector alignment tabs are properly aligned with the power connector on the electronics assembly before pressing into place. -
Page 34: Attaching The Lifting Support
SECTION 5: MAINTENANCE Attaching the Lifting Support Figure 4-12: Cage Assembly for Transducer End Cap Put one side of the cage on. Tap it down softly with a mallet as shown in 4-13. IGURE Figure 4-13: Attach One Part of the Lifting Support... -
Page 35: Figure 4-14: Applying The Second Part Of The Lifting Support, Including The ½" Spreader Rods
2. Flip the unit over and put the other part of the cage on the top of the unit. a. Before tapping the other part of the cage with the mallet, align each of the two 1/2-inch diameter spreader rods into the spaces one at a time, as shown in 4-14. -
Page 36: Figure 4-15: Use The Mallet To Ensure The Lifting Support Is Securely Attached
Support Brackets. They 5-9. are vital to the operation of the 8242XS. Refer to IGURE 3. Start by replacing the two titanium bolts on the two sides of the top cage-clamp assembly. Replace the bolts with only one nut first as shown in 4-16. -
Page 37: Figure 4-17: Using The Wrench On The Top Bolt, At The Bottom, Tighten The First Nut
4-11 NOTE: There are two different bolt lengths, the shorter bolt goes into the Top of the cage. 4. Replace the third titanium bolt on the top cage-clamp assembly. Replace with one nut at a time. a. It is impossible to use a wrench between the cage, so this is the only time to put the wrench on the bolt instead of the nuts. -
Page 38: Replace The Purge Port Plug
SECTION 5: MAINTENANCE 4-12 Replace the Purge Port Plug CAUTION! Before reinserting the Purge Port Plug, ensure it is clean and free of debris. Even small debris can cause the unit to flood. Note: The shoulder on the Purge Port Plug is approximately flush with the end cap when it is inserted fully and the glass epoxy retainer is wrapped around the .19-inch diameter stub 1. -
Page 39: Leak Detection And Condensation Prevention
4-13 Leak Detection and Condensation Prevention EdgeTech 8242XS releases are provided with a 3/8-inch diameter purging port in the Clevis End Cap. The following procedure assumes the user has a vacuum pump, dry nitrogen gas cylinder, and compound pressure/vacuum gauge all arranged on a manifold setup. The recommended procedure for preparation of the instruments atmosphere is as follows: After checking that all other ports are sealed, draw a near -3 PSIG vacuum via the purging port. -
Page 40: Arming The Instrument
No disassembly is required even after multiple firings (except for battery replacement). Figure 4-21: Clevis Rotation Drawing The Model 8242XS release is designed to be used with the EdgeTech Release Link. The release link will accept a standard 5/8inch shackle (maximum .77in [1.9 cm.] pin diameter and minimum 1.06in [2.7 cm.]) opening. -
Page 41: Figure 4-22: The Armed 8242Xs
4-15 T-Shaped Release Shaft Slotted Release Latch Zinc Anode Release Hook Release Link Figure 4-22: The Armed 8242XS... -
Page 42: Figure 4-23: The Release Link Captured By The Release Hook
SECTION 5: MAINTENANCE 4-16 To Arm the Instrument: 1. When capturing the anchor link in the hook, be sure to support the Anchor Link and the Hook. pivoting the latch back over the T-Shaft. Figure 4-23: The Release Link Captured by the Release Hook 2. -
Page 43: Figure 4-25: Rotating The Shaft Using The Arming Wrench
4-17 3. Using the slotted arming tool, rotate the shaft clockwise until the internal mechanism ‘clicks’ and holds position. DO NOT FORCE THE MECHANISM FURTHER THAN NEEDED (approximately 40-inch- pounds torque is required to rotate the shaft 30 degrees clockwise). CAUTION! The Release Mechanism is armed after rotating the shaft. -
Page 44: Release Function
SECTION 5: MAINTENANCE 4-18 Figure 4-26: The Armed T-Shaft Release Function After the RELEASE command has been decoded, the power supply is switched on to the motor. The internal torsion spring is released by the motor and provides torque to the t-shaped release shaft. When the T-shaped end of the shaft turns and aligns with the slot in the latch, a release will occur. -
Page 45: Release Latch Inspection (Following High Load In-Air Releases)
4-19 Release Latch Inspection (following high load in-air releases): It should be routine practice after any release (air or water) to inspect the release latch and release latch pin for flatness. In the absence of the damping effect of water or if very high loads are released, the hook latch and Release Hook exhibits significant dynamics. -
Page 46: On/Off Instructions
SECTION 5: MAINTENANCE 4-20 On/Off Actuator Purge Port Plug Milled Slot Figure 4-28: On/Off Actuator Plug on the Clevis End OFF Position ON Position Figure 4-29: The ON and OFF Positions of the On/Off Actuator Plug On/Off Instructions Turning the On/Off Actuator On and Off is extremely simple. If this option was purchased, follow the instructions below. -
Page 47: On Instructions
4-21 4.5.1.1 On Instructions 1. Loosen Retainer, and move it out of the way, as shown in 4-30. IGURE Figure 4-30: Loosen the Retainer and Move It Out of the Way 2. Push On/Off Actuator Plug in. This will turn the On/Off Option ON, as shown in 4-31. -
Page 48: Off Instructions
SECTION 5: MAINTENANCE 4-22 4.5.1.2 Off Instructions 1. Loosen Retainer, move it out of the way, as shown in 4-30. IGURE 2. Pull the On/Off Actuator Plug out so the off position groove is flush with the unit, as shown in 4-33. -
Page 49: Air Acoustic Testing
Using a deck unit, ascertain whether the 8242XS is enabled or disabled by interrogating it if the unit has just been powered up it will be enabled. Unless otherwise specified, the 8242XS will be shipped from EdgeTech with the interrogate frequency tuned to 11 kHz and the reply frequency set to 12 kHz. -
Page 50: Post Deployment
A visual inspection of the Housing and release mechanism should be performed to detect any signs of damage, excessive wear, corrosion, etc. If the 8242XS is not to be used again soon, the Unit should be turned off (battery unplugged - follow procedure described in sub-section 4.1). -
Page 51: Maintenance
5-6. IGURE The 8242XS releases are shipped with 12 PSIA (-2.5 PSIG) of dry nitrogen, which reduces moisture in the housing and helps to seat the O-Rings. Equalization of pressure by removal of the purge port plug will be necessary to gain entry into the instrument. -
Page 52: To Open The 8242Xs
SECTION 5: MAINTENANCE To Open the 8242XS Should the need arise for service or replacement of parts, the following instructions detail complete disassembly and reassembly of the Unit. These instructions will build upon the instructions in section 4.1, as they follow some of the same initial steps, but are more in depth. -
Page 53: Figure 5-2: The Unplugged Battery And Transducer Cables
4. Disable power supply by disconnecting the connector from the battery pack to the main board. Note: Always unplug the Battery before unplugging the Transducer Cable. 5. Disconnect the transducer cable. Figure 5-2: The Unplugged Battery and Transducer Cables... -
Page 54: Remove The Clevis End Cap
SECTION 5: MAINTENANCE Remove the Clevis End Cap 4. Remove the two titanium bolts from the lower clamp assembly. This must be done carefully. Follow the sub-steps below: CAUTION! Never put the socket wrench over both nuts when attempting to removing the Top Nut from the three titanium bolts. -
Page 55: Figure 5-4: Using A Wrench To Pry The Clevis End Cap Apart
5. Place a wrench into the gap between the two parts of the Clevis End Cap to pry one side of it off, shown in 5-4. IGURE Figure 5-4: Using a Wrench to Pry the Clevis End Cap Apart 6. With a soft mallet, tap the other half of the clamp to free the End Cap. Figure 5-5: Tapping the other end of the clamp with a soft Mallet... -
Page 56: Figure 5-6: The Electronics Assembly Completely Removed From The Housing
SECTION 5: MAINTENANCE CAUTION! When removing the Release End Cap Assembly with the electronics attached, take care to pull the chassis out straight and not drag the chassis edge on the housing bore seal. 6. Remove the Release End Cap by carefully sliding the Electronics Assembly out of the Housing. Take care not to scratch the O-ring surfaces, shown in 5-6. -
Page 57: 8242Xs Assembly
Inspect for scratches or nicks which will impair the O-ring efficiency. Apply a Very light coat of O-ring lubricant (EdgeTech recommends the use of Parker Super O-lube) to the piston O-ring surface to aid sliding insertion of the piston seal. Inspect the O-Rings for damage or manufacturing flaws such as tears, dimples or inclusions in the rubber. -
Page 58: Figure 5-8: Cross Section Of The Face Seal, Gland, And Back-Up O-Rings
SECTION 5: MAINTENANCE Figure 5-8: Cross Section of the Face Seal, Gland, and Back-up O-Rings 4. When the End Cap flange mates against the housing, be sure the O-ring is properly seated in the groove and is not crushed outside the groove between the end cap and housing. 5. -
Page 59: Battery Replacement
Titanium Hex Head Bolt Titanium Washer Nylon Shoulder Washer Nylon Shoulder Washer Titanium Washer (2) Titanium Hex Nuts Figure 5-9: Clamping Hardware 6. Continue tapping all parts of both clamps with the soft mallet until no further tightening of the hardware is possible. -
Page 60: Battery Replacement Procedure
CAUTION WHEN OPENING THE INSTRUMENT! CAUTION! The 8242XS’ Battery Pack is on the underside of the Electronics’ Assembly. To replace the battery, the Electronics board must be flipped upside down. This is safe. No components will touch the table if properly handled. -
Page 61: Figure 5-10: The Plugged In Battery Cable And Transducer Cable
5-11 Battery Cable Transducer Cable Figure 5-10: The Plugged in Battery Cable and Transducer Cable 6. Remove the Clevis End, referring to sub-section 5.2.2. 7. Remove the four screws that connect the Battery Pack retaining brackets to the electronics chassis as shown in 5-11. -
Page 62: Battery Replacement Considerations
For Releases that use the replaceable alkaline or Lithium battery options, the user should exercise care in selecting replacement batteries. Check both the polarity and open circuit voltage of each cell. EdgeTech recommends: for Lithium Units Tadiran type TL-5920/S batteries. For Alkaline Units Energizer EN93 Type batteries. -
Page 63: Battery Replacement
For Alkaline Battery packs, 4.77 Volts is half of the packs potential, the two strings are connected in series. After reassembly, EdgeTech recommends purging the Release with dry Nitrogen, ensuring the batteries and electronics are operating in a dry, inert atmosphere. Refer to the... -
Page 64: O-Ring Considerations
5-14 O-Ring Considerations The 8242XS End Cap assemblies use a standard O-ring to provide watertight integrity to the Electronics Housing. Under normal usage, proper care, and lubrication, the O-ring should provide several years of usage. However, like the batteries, the O-ring is an inexpensive component, which is absolutely critical to the successful operation of the entire system. -
Page 65: Figure 5-13: The Transducer End O-Rings
5-15 Face Seal O-Ring Gland O-Ring & Backup O-Ring Figure 5-13: The Transducer End O-Rings Face Seal O-Ring Gland O-Ring & Backup O-Ring Figure 5-14: The Release End O-Rings Figure 5-15: The Purge Port Plug O-Rings... -
Page 66: General Cleaning And Inspection
SECTION 5: MAINTENANCE 5-16 General Cleaning and Inspection Whenever the Unit has been recovered from a deployment, the Unit should be cleaned and rinsed with fresh water to avoid salt buildup and deterioration of mechanical parts. A visual check of the Housing and release mechanism should be performed to detect any signs of damage, excessive wear, corrosion, etc. -
Page 67: General Inspection And Replacement Schedule
BUSHING INSULATOR 8242 XS 0.07 THICK DELRIN MTL 15 SPACER 8242 LIFTING SUPPORT G 10 FIBERGLASS MTL 16 PLUG PURGE 8242 NAB 6000M MTL 17 Table 5-2: Field Kit – 0003102 Callout Assembly Drawings Callout Assembly Drawings for the 8242XS are shown below. -
Page 68: Figure 5-17: 8242Xs Mart Main Sub Assembly - 0002737
SECTION 5: MAINTENANCE 5-18 Figure 5-17: 8242XS MART Main Sub Assembly – 0002737... -
Page 69: 0002737 Bom
5-19 0002737 BOM This table depicts the Material Call outs in 5-17: 8242XS MART M – 0002737 IGURE SSEMBLY DESCRIPTION EDGETECH MTL NUMBER ASSY TOP DUCER 8242 XS ACOUSTIC RELEASE ASM 1 ASSY SUB ELECTRONICS 8242 XS RELEASE ASM 2... -
Page 70: Figure 5-18: 8242Xs Release Sub Electronics Release Assembly - 0002650
SECTION 5: MAINTENANCE 5-20 Figure 5-18: 8242XS Release Sub Electronics Release Assembly – 0002650... -
Page 71: 0002650 Bom
5-21 0002650 BOM 5-18: 8242XS R This table depicts the Material Call outs in IGURE ELEASE LECTRONICS ELEASE SSEMBLY – 0002650. DESCRIPTION EDGETECH MTL NUMBER HOUSING PRESSURE 8202 / 8242 MACHINED & PAINTED 20 INCH NAB 6000M MTL 1 WELDMENT 8242 LIFTING SUPPORT ASB... -
Page 72: Figure 5-19: 8242Xs Acoustic Release Transducer Assembly - 0003226
SECTION 5: MAINTENANCE 5-22 Figure 5-19: 8242XS Acoustic Release Transducer Assembly – 0003226... -
Page 73: Figure 5-20: 8242Xs Release Mechanism Sub Assembly - Page 1 Of 2 - 002780
5-23 Figure 5-20: 8242XS Release Mechanism Sub Assembly – Page 1 of 2 – 002780... -
Page 74: Figure 5-21: 8242Xs Release Mechanism Sub Assembly - Page 2 Of 2 - 002780
SECTION 5: MAINTENANCE 5-24 Figure 5-21: 8242XS Release Mechanism Sub Assembly – Page 2 of 2 – 002780... -
Page 75: 0002780 Bom
MTL 7 SPRING REWORK MTL 8 PLATE MOUNTING 8242 XS BATTERY AL MTL 9 MOTOR RELEASE CART / 8242XS MTL 10 END CAP LOWER 8242 W/ CLEVIS MACHINED NAB 6000M MTL 11 HOOK RELEASE 8242 MACHINED NAB 6000M MTL 12... -
Page 76: Table 5-5: 0002780 Bom
SECTION 5: MAINTENANCE 5-26 EDGETECH MTL DESCRIPTION NUMBER HARDWARE SCREW STD FLAT HD 100 PHILLIPS 1/4-20 0.50 INCH 316 SS MTL 43 BUSHING 8242 XS UPPER THRUST BEARING MTL 44 HARDWARE STANDOFF STD MALE / MALE 1/4-20 X 0.375 INCH MACHINED 303 SS MTL 45 BEARING THRUST 0.50 INCH BORE... -
Page 77: A.0 Remote Release
A.0 REMOTE RELEASE The Remote Release is a means of physically separating the Release and Transceiver ends of the 8242XS for use in certain operations. Mechanical Drawings A Mechanical Drawings of the Remote Release is shown below. -
Page 78: Figure A-1: 8242Xs Remote Release - 0018268
APPENDIX A: REMOTE RELEASE Figure A-1: 8242XS Remote Release – 0018268... -
Page 79: B.0 Tandem Release Option
When a Tandem is used with a mooring it can be recovered by releasing the 8242XS Release. In the event of a failure of the mooring to detach from the anchor, the RELEASE command can be sent to both 8242XS’s freeing both the oblong ring and chain assembly. -
Page 80: Figure B-1: 8242Xs Tandem Kit Drawing - 0006657
Figure B-1: 8242XS Tandem Kit Drawing – 0006657... -
Page 81: Figure B-2: 8242Xs Tandem Short - 0017034
Figure B-2: 8242XS Tandem Short – 0017034... -
Page 82: Figure B-3: 8242Xs Tandem Long - 0018532
Figure B-3: 8242XS Tandem Long – 0018532...
