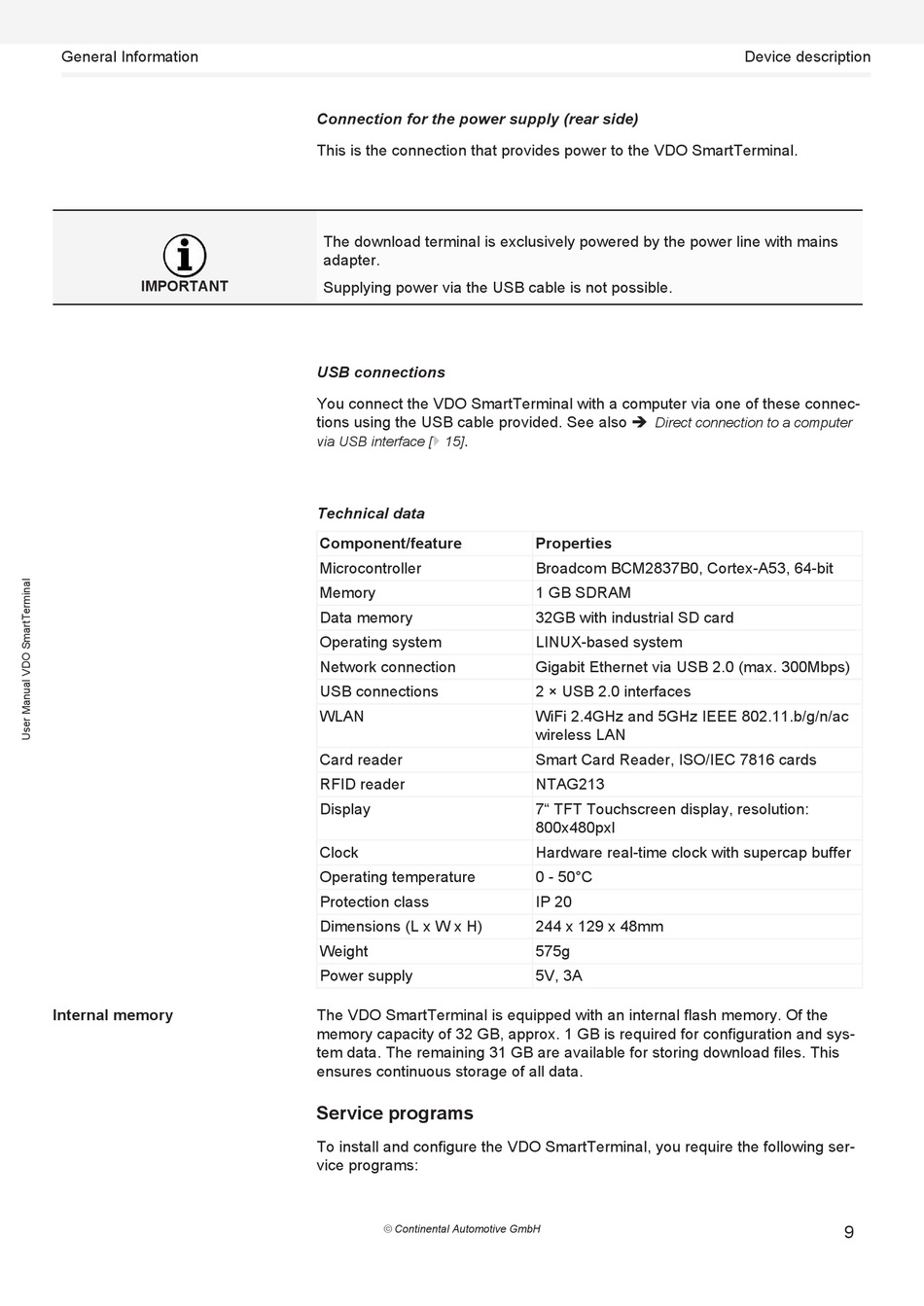

Service Programs - VDO SmartTerminal Operating Instructions Manual

General Information
IMPORTANT
Internal memory
Connection for the power supply (rear side)
This is the connection that provides power to the VDO SmartTerminal.
The download terminal is exclusively powered by the power line with mains
adapter.
Supplying power via the USB cable is not possible.
USB connections
You connect the VDO SmartTerminal with a computer via one of these connec-
tions using the USB cable provided. See also è
} .
via USB interface [ 15]
Technical data
Component/feature
Microcontroller
Memory
Data memory
Operating system
Network connection
USB connections
WLAN
Card reader
RFID reader
Display
Clock
Operating temperature
Protection class
Dimensions (L x W x H)
Weight
Power supply
The VDO SmartTerminal is equipped with an internal flash memory. Of the
memory capacity of 32 GB, approx. 1 GB is required for configuration and sys-
tem data. The remaining 31 GB are available for storing download files. This
ensures continuous storage of all data.

Service programs

To install and configure the VDO SmartTerminal, you require the following ser-
vice programs:
© Continental Automotive GmbH
Direct connection to a computer
Properties
Broadcom BCM2837B0, Cortex-A53, 64-bit
1 GB SDRAM
32GB with industrial SD card
LINUX-based system
Gigabit Ethernet via USB 2.0 (max. 300Mbps)
2 × USB 2.0 interfaces
WiFi 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac
wireless LAN
Smart Card Reader, ISO/IEC 7816 cards
NTAG213
7" TFT Touchscreen display, resolution:
800x480pxl
Hardware real-time clock with supercap buffer
0 - 50°C
IP 20
244 x 129 x 48mm
575g
5V, 3A
Device description
