VDO TerminalTools
Dropdown menus
The dropdown menus contain information and setting op-
tions for each menu.
If you want to open several dropdown menus at once, hold
down the control key and click on the double arrows of the
desired menus.
Status display for the VDO Terminal Service

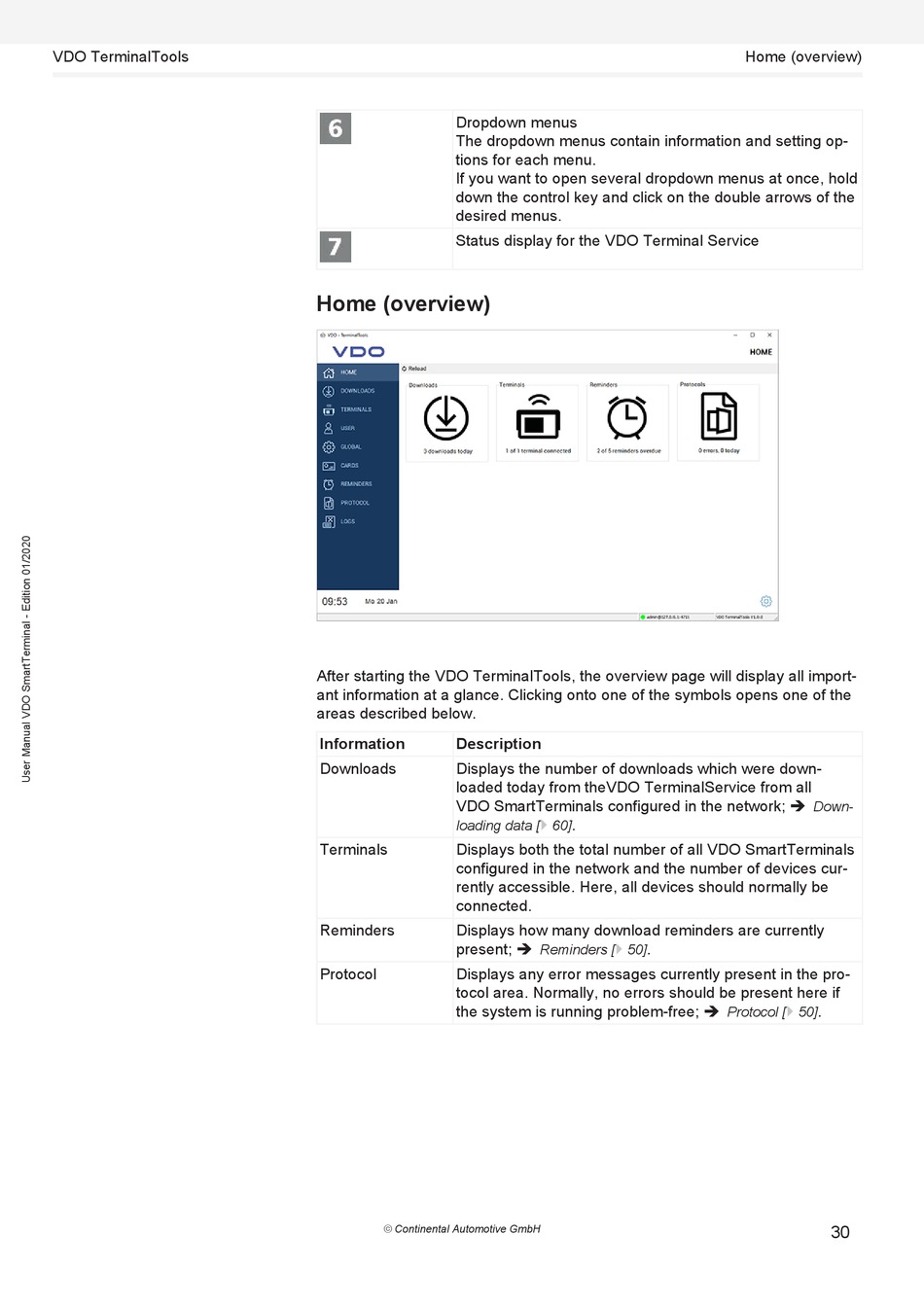

Home (overview)

After starting the VDO TerminalTools, the overview page will display all import-
ant information at a glance. Clicking onto one of the symbols opens one of the
areas described below.
Information Description
Downloads Displays the number of downloads which were down-
loaded today from theVDO TerminalService from all
VDO SmartTerminals configured in the network; è
loading data [
Terminals Displays both the total number of all VDO SmartTerminals
configured in the network and the number of devices cur-
rently accessible. Here, all devices should normally be
connected.
Reminders Displays how many download reminders are currently
present; è
Protocol Displays any error messages currently present in the pro-
tocol area. Normally, no errors should be present here if
the system is running problem-free; è
© Continental Automotive GmbH
}
.
60]
}
.
Reminders [ 50]
Home (overview)
Down-
}
.
Protocol [ 50]
